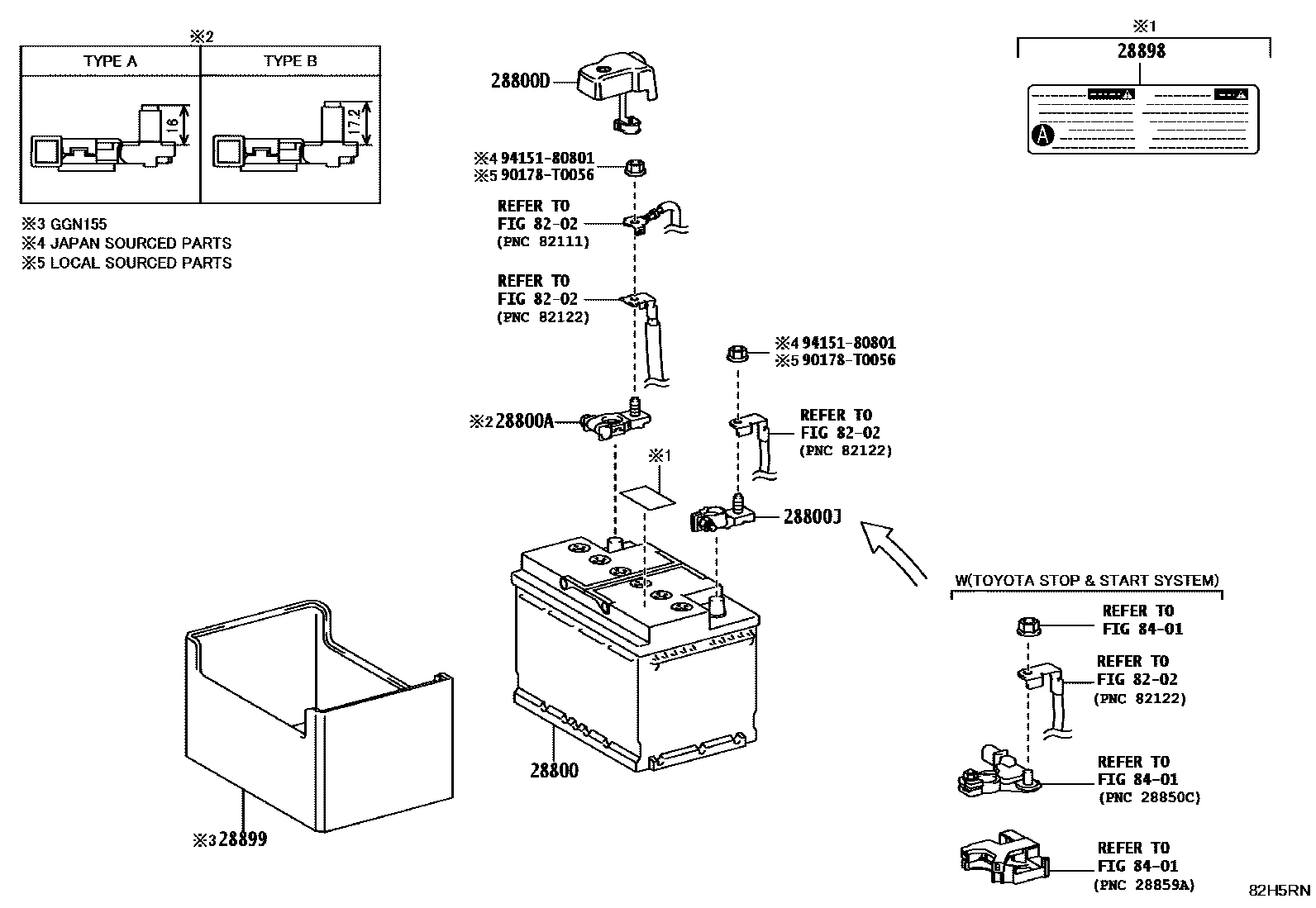

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2

28800BATTERY

main28800-0C152i2TRFE..TGN166..IDNP;2TRFE..TGN156..IDNP..SA;2TRFE..TGN156..IDNP..(H,L)202409

LN2

main28800-0C251i2TRFE..TGN156,166..LA202411

LN2

main28800-0C261i2TRFE..TGN156..SAP202411

LN2

main28800-0L432i2TRFE..TGN156..IDNP..S..GCC;1G#,2GDFTV..GGN155,GUN15#,16#..IDNP202409

LN3

main28800-0L461i1G#,2GDFTV..GGN155,GUN156,16#..AGTP202411

LN3

main28800-0L482i1GDFTV,2GDFTV..GUN15#,16#..KENP,SAP202411

LN3

main28800-0L504supersedes 28800-0L521i1GDFTV,2GDFTV..GUN15#,16#..(H,S)..TH; 2GDFTV..GUN165..L..TH;1GDFTV,2GDFTV..GUN15#,165..(CAMP,THP)..(ARL,GEN)202408

LN3,FURUKAWA; LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

main28800-0L572i1GDFTV,2GDFTV..GUN15#,16#..(H,S)..TH; 2GDFTV..GUN165..L..TH;1GDFTV,2GDFTV..GUN15#,165..(CAMP,THP)..(ARL,GEN)202408

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA; LN3,YUASA

main28800-0L722i2TRFE..TGN156..THP..S;1G#,2GDFTV..GGN155,GUN15#..THP..GCC202408

LN3

main28800-0L732i2TRFE..TGN156,166..THP..L202408

LN2

main28800-0E011i1GDFTV..GUN156,166..GCC,IDN202408

LN4,TOYOTA STOP & START SYSTEM-WITH,MADE IN THAILAND

main28800-0E031i1GDFTV..GUN156,166..GCC,IDN202408

LN4,TOYOTA STOP & START SYSTEM-WITH,MADE IN INDONESIA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

TYPE A:REFER ILLUST.

main90982-05061i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2GDFTV..GUN15#,16#..(H,S)..TH; 2GDFTV..GUN165..L..TH;1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..(DCRL,HTWC)..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,SA,VN)202408

TOYOTA STOP & START SYSTEM-WITHOUT

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,2TRFE..GGN155,GUN15#,TGN156,166..GCC202408

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN155..GCC,GEN,LA202408

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178T0056

main90178-T0056

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
