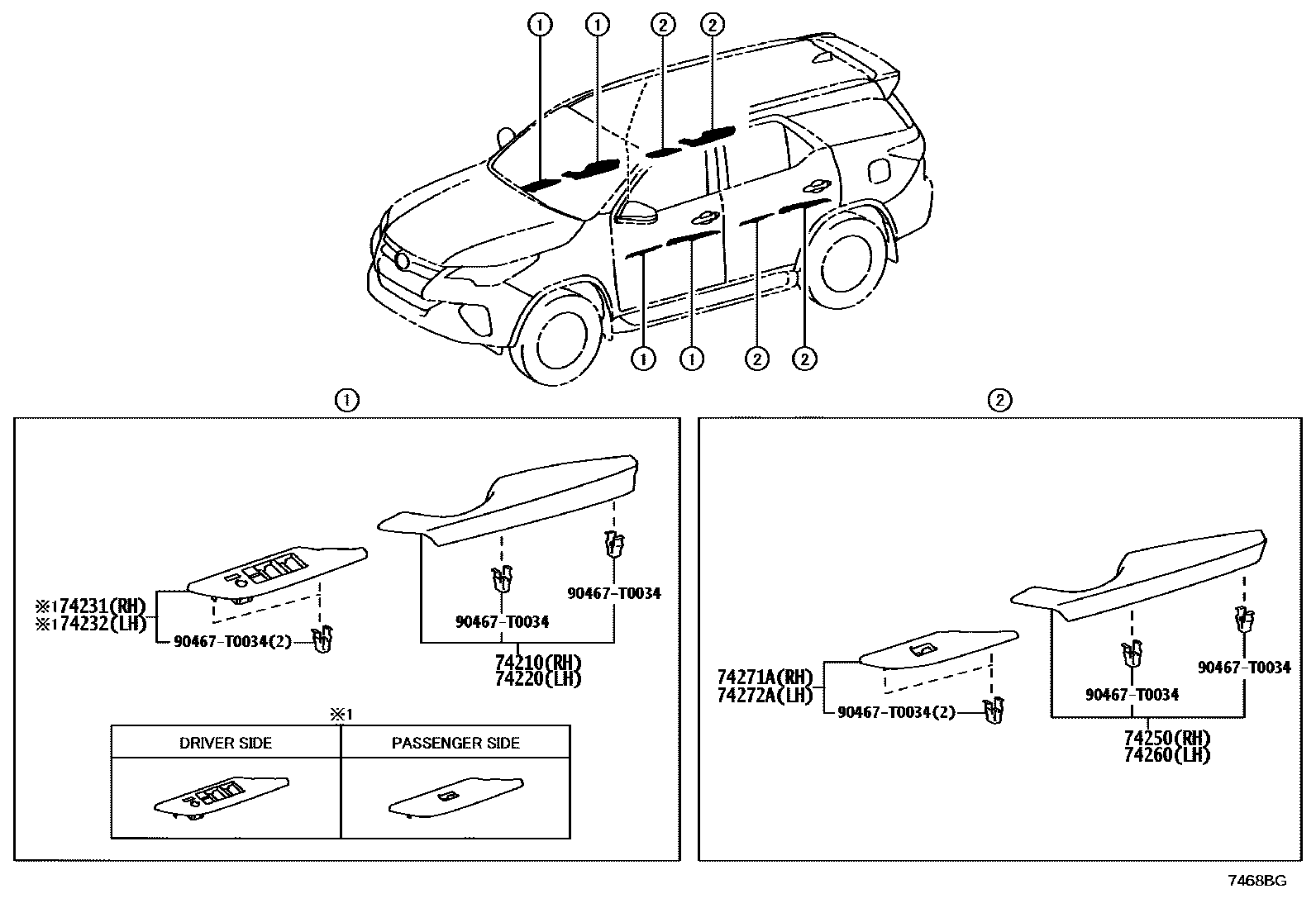

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74210-0K100-C3iGGN155..THP..H; GUN155,16#..H..TH;GUN156..(CAMP,THP)..GEN; GUN155,165..S..TH;GUN156..H..(ARL,MA);GUN155,TGN156..(MAP,THP)..H..(GEN,MA); GUN156,165..THP..S..(ARL,GEN); GUN156..TH202408
BLACK,TRIM0#,2#; BLACK,TRIM0#,22; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
main74210-0K100-E7iGGN155..THP..H; GUN15#..(CAMP,THP)..H..(ARL,GEN); GUN156,165..THP..S..(ARL,GEN)202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
CHAMOIS,TRIM4#
main74210-0K130-C0iGGN155..IDNP..H..GCC; GUN155,165,TGN156..IDNP..S..(GEN,SA); GUN156..IDNP..(IDN,PH,VN); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN165..IDNP..S..VN;GGN155,GUN155,166,TGN156,166..IDNP..6FC..(GEN,IDN,PH,VN)202409
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK/GR RED,TRIM24
main74210-0K130-E7iGGN155,GUN15#,TGN156,166..IDNP..H..GEN; GGN155..IDNP..H..GCC; GUN165..IDNP..GEN202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74210-0K200-C0supersedes 74210-0K220-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN156,166..(L,S)..LA; GUN156..H..LA202411
BLACK,TRIM2#; MLM BASIC PACKAGE&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
FROMARGE,TRIM0#
main74210-0K220-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN166..6FC..L..LA; GUN156..AGTP..H202411
BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74210-0K400-E9iGUN156,165..THP..S..(ARL,GEN);GGN155,GUN15#,TGN156..THP..(H,S)..GCC; GUN156..H..ARL202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74210-0K410-C0iGGN155,TGN156..H..GEN; TGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA);GGN155,GUN15#,165..IDNP..S..(GCC,GEN,IDN,PH,SA)202409
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74210-0K410-E9iGGN155,TGN156..H..GEN; GUN165,TGN156..IDNP..(L,S)..GEN;GGN155,GUN15#,TGN156..IDNP..(H,S)..GCC202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/CRIMSON,TRIM3#; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74220-0K100-C3iGGN155..THP..H; GUN155,16#..H..TH;GUN156..(CAMP,THP)..GEN; GUN155,165..S..TH;GUN156..H..(ARL,MA);GUN155,TGN156..(MAP,THP)..H..(GEN,MA); GUN156,165..THP..S..(ARL,GEN); GUN156..TH202408
BLACK,TRIM0#,2#; BLACK,TRIM0#,22; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
main74220-0K100-E7iGGN155..THP..H; GUN15#..(CAMP,THP)..H..(ARL,GEN); GUN156,165..THP..S..(ARL,GEN)202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
CHAMOIS,TRIM4#
main74220-0K130-C0iGGN155..IDNP..H..GCC; GUN155,165,TGN156..IDNP..S..(GEN,SA); GUN156..IDNP..(IDN,PH,VN); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN165..IDNP..S..VN;GGN155,GUN155,166,TGN156,166..IDNP..6FC..(GEN,IDN,PH,VN)202409
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK/GR RED,TRIM24
main74220-0K130-E7iGGN155,GUN15#,TGN156,166..IDNP..H..GEN; GGN155..IDNP..H..GCC; GUN165..IDNP..GEN202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74220-0K200-C0supersedes 74220-0K220-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN156,166..(L,S)..LA; GUN156..H..LA202411
BLACK,TRIM2#; MLM BASIC PACKAGE&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
FROMARGE,TRIM0#
main74220-0K220-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN166..6FC..L..LA; GUN156..AGTP..H202411
BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74220-0K400-E9iGUN156,165..THP..S..(ARL,GEN);GGN155,GUN15#,TGN156..THP..(H,S)..GCC; GUN156..H..ARL202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74220-0K410-C0iGGN155,TGN156..H..GEN; TGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA);GGN155,GUN15#,165..IDNP..S..(GCC,GEN,IDN,PH,SA)202409
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74220-0K410-E9iGGN155,TGN156..H..GEN; GUN165,TGN156..IDNP..(L,S)..GEN;GGN155,GUN15#,TGN156..IDNP..(H,S)..GCC202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/CRIMSON,TRIM3#; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K880iTGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA,VN);GGN155,GUN15#,16#,TGN166..LHD..(IDNP,VNP)..(H,S)202409
SEAT COVER MATERIAL-FABLIC(HI)
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0K870iTGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA,VN);GGN155,GUN15#,16#,TGN166..LHD..(IDNP,VNP)..(H,S)202409
SEAT COVER MATERIAL-FABLIC(HI)
74250ARMREST ASSY, REAR RH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74250-0K060-C3iGGN155..THP..H; GUN155,16#..H..TH;GUN156..(CAMP,THP)..GEN; GUN155,165..S..TH;GUN156..H..(ARL,MA);GUN155,TGN156..(MAP,THP)..H..(GEN,MA); GUN156,165..THP..S..(ARL,GEN); GUN156..TH202408
BLACK,TRIM0#,2#; BLACK,TRIM0#,22; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
main74250-0K060-E7iGGN155..THP..H; GUN15#..(CAMP,THP)..H..(ARL,GEN); GUN156,165..THP..S..(ARL,GEN)202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
CHAMOIS,TRIM4#
main74250-0K090-C0iGGN155..IDNP..H..GCC; GUN155,165,TGN156..IDNP..S..(GEN,SA); GUN156..IDNP..(IDN,PH,VN); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN165..IDNP..S..VN;GGN155,GUN155,166,TGN156,166..IDNP..6FC..(GEN,IDN,PH,VN)202409
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK/GR RED,TRIM24
main74250-0K090-E7iGGN155,GUN15#,TGN156,166..IDNP..H..GEN; GGN155..IDNP..H..GCC; GUN165..IDNP..GEN202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74250-0K140-C0supersedes 74250-0K160-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN156,166..(L,S)..LA; GUN156..H..LA202411
BLACK,TRIM2#; MLM BASIC PACKAGE&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
FROMARGE,TRIM0#
main74250-0K160-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN166..6FC..L..LA; GUN156..AGTP..H202411
BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74250-0K310-E9iGUN156,165..THP..S..(ARL,GEN);GGN155,GUN15#,TGN156..THP..(H,S)..GCC; GUN156..H..ARL202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74250-0K320-C0iGGN155,TGN156..H..GEN; TGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA);GGN155,GUN15#,165..IDNP..S..(GCC,GEN,IDN,PH,SA)202409
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74250-0K320-E9iGGN155,TGN156..H..GEN; GUN165,TGN156..IDNP..(L,S)..GEN;GGN155,GUN15#,TGN156..IDNP..(H,S)..GCC202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/CRIMSON,TRIM3#; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24
74260ARMREST ASSY, REAR LH
BLACK,TRIM2#
CHAMOIS,TRIM4#
BLACK,TRIM3#
main74260-0K060-C3iGGN155..THP..H; GUN155,16#..H..TH;GUN156..(CAMP,THP)..GEN; GUN155,165..S..TH;GUN156..H..(ARL,MA);GUN155,TGN156..(MAP,THP)..H..(GEN,MA); GUN156,165..THP..S..(ARL,GEN); GUN156..TH202408
BLACK,TRIM0#,2#; BLACK,TRIM0#,22; BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
main74260-0K060-E7iGGN155..THP..H; GUN15#..(CAMP,THP)..H..(ARL,GEN); GUN156,165..THP..S..(ARL,GEN)202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
CHAMOIS,TRIM4#
main74260-0K090-C0iGGN155..IDNP..H..GCC; GUN155,165,TGN156..IDNP..S..(GEN,SA); GUN156..IDNP..(IDN,PH,VN); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN165..IDNP..S..VN;GGN155,GUN155,166,TGN156,166..IDNP..6FC..(GEN,IDN,PH,VN)202409
BLACK,TRIM0#,2#; BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK/GR RED,TRIM24
main74260-0K090-E7iGGN155,GUN15#,TGN156,166..IDNP..H..GEN; GGN155..IDNP..H..GCC; GUN165..IDNP..GEN202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),CHAMOIS,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#
main74260-0K140-C0supersedes 74260-0K160-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN156,166..(L,S)..LA; GUN156..H..LA202411
BLACK,TRIM2#; MLM BASIC PACKAGE&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
FROMARGE,TRIM0#
main74260-0K160-C1iGGN155,GUN166,TGN166..H..LA; GUN156,16#,TGN166..6FC..L..LA; GUN156..AGTP..H202411
BLACK,TRIM2#; BLACK,TRIM22; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74260-0K310-E9iGUN156,165..THP..S..(ARL,GEN);GGN155,GUN15#,TGN156..THP..(H,S)..GCC; GUN156..H..ARL202408
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
main74260-0K320-C0iGGN155,TGN156..H..GEN; TGN156..IDNP..S..GCC;TGN156..LHD..IDNP..(GEN,SA);GGN155,GUN15#,165..IDNP..S..(GCC,GEN,IDN,PH,SA)202409
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main74260-0K320-E9iGGN155,TGN156..H..GEN; GUN165,TGN156..IDNP..(L,S)..GEN;GGN155,GUN15#,TGN156..IDNP..(H,S)..GCC202409
CHAMOIS,TRIM4#; SEAT COVER MATERIAL-FABLIC(HI),CHAMOIS,TRIM4#
BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/CRIMSON,TRIM3#; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/CRIMSON,TRIM3#
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM24; MLM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM24
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SEAT COVER MATERIAL-FABLIC(HI)
main74271-0K350iTGN156..IDNP..S..GCC;TGN156..IDNP..(GEN,SA,VN);GGN155,GUN15#,16#,TGN166..(IDNP,VNP)..(H,S)202409
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
SEAT COVER MATERIAL-FABLIC(HI)
main74272-0K350iTGN156..IDNP..S..GCC;TGN156..IDNP..(GEN,SA,VN);GGN155,GUN15#,16#,TGN166..(IDNP,VNP)..(H,S)202409
90467T0034
main90467-T0034
9 parts on this diagram · 2 diagrams in section
