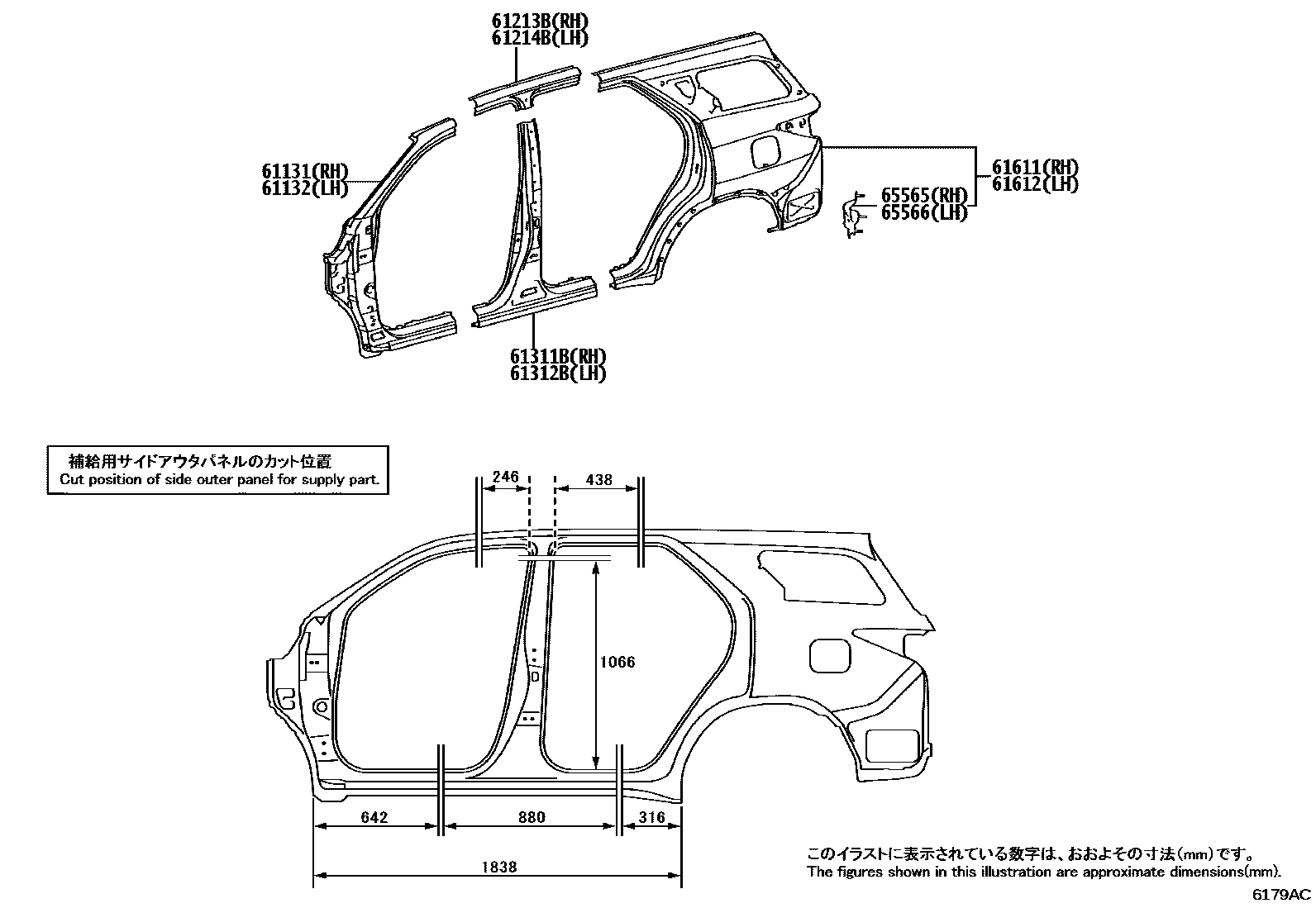

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL ,RH 0003 1INNER PANEL ,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK040iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK040iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,CAMP,IDNP,KENP,MAP,SAP,THP,VNP202408

61611PANEL, QUARTER, RH

main61601-KK010iGUN165..L,S;GUN165..H..VN;GUN166..IDNP,SAP,THP;GUN155,166..(L,S)..(LA,TH);GGN155,GUN155,TGN156,166..GCC,GEN,IDN,KEN,LA,MA,SA,VN;GUN156..(AGTP,IDNP,KENP,MAP,SAP,THP,202408

main61601-KK020iGUN166..H..LA;GUN155,165..H..TH;GUN156..(AGTP,CAMP)..(BZAGT,GEN)202408

BACK MONITOR-WITH(*PVM)

main61601-KK020iGUN166..H..LA;GUN155,165..H..TH;GUN156..(AGTP,CAMP)..(BZAGT,GEN)202408

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

61612PANEL, QUARTER, LH

main61602-KK010iGUN165..L,S;GUN165..H..VN;GUN166..IDNP,SAP,THP;GUN155,166..(L,S)..(LA,TH);GGN155,GUN155,TGN156,166..GCC,GEN,IDN,KEN,LA,MA,SA,VN;GUN156..(AGTP,IDNP,KENP,MAP,SAP,THP,202408

main61602-KK020iGUN166..H..LA;GUN155,165..H..TH;GUN156..(AGTP,CAMP)..(BZAGT,GEN)202408

BACK MONITOR-WITH(*PVM)

main61602-KK020iGUN166..H..LA;GUN155,165..H..TH;GUN156..(AGTP,CAMP)..(BZAGT,GEN)202408

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

65565PATCH, SIDE PANEL REAR END, RH

main65565-KK030

65566PATCH, SIDE PANEL REAR END, LH

main65566-KK030

10 parts on this diagram · 3 diagrams in section
