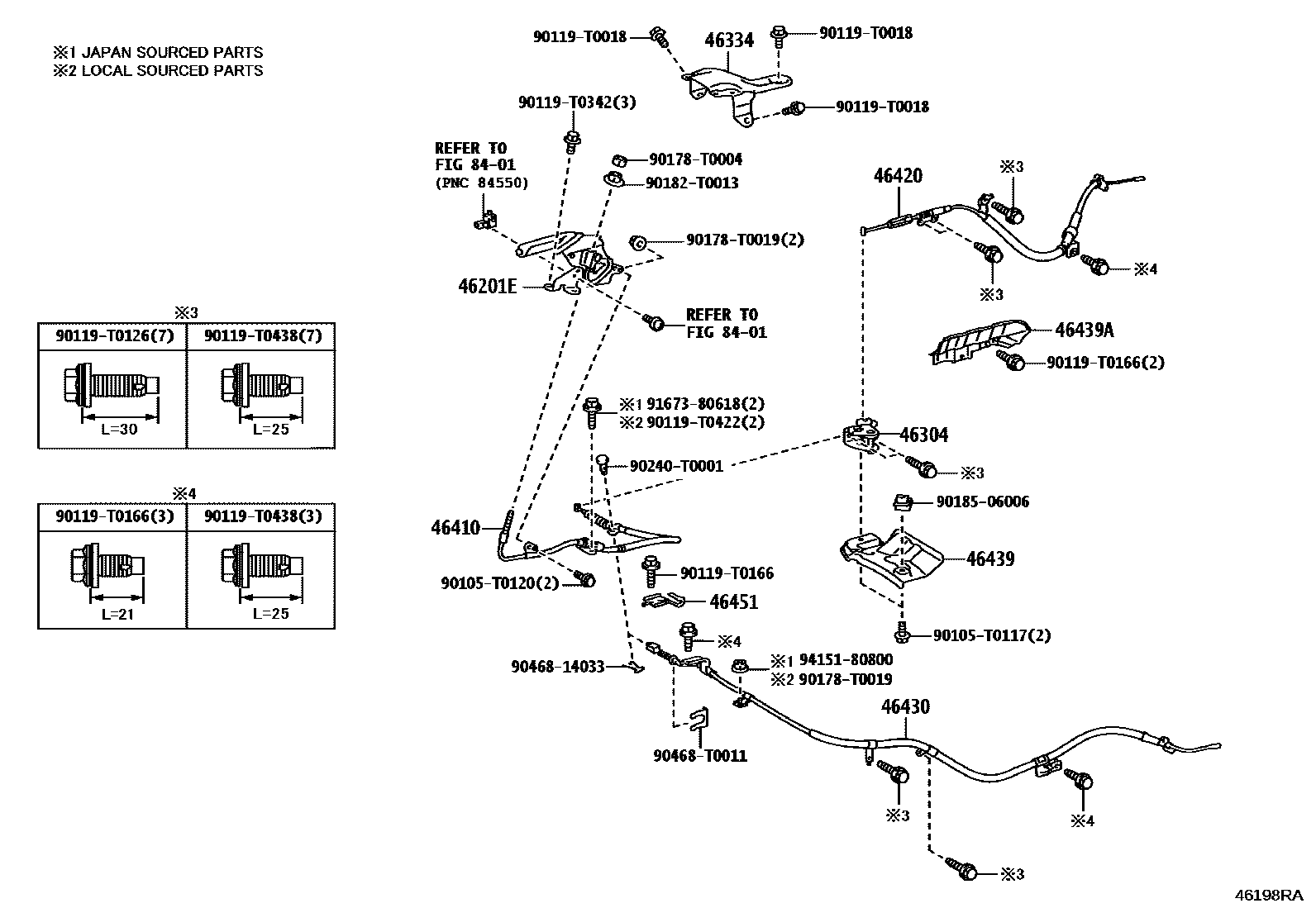

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
main46201-0K140-C0iGUN155,TGN156,166..IDNP..(6F,6FC)..L; GUN156,TGN156..IDNP..L..(ARL,GEN); GUN165..L..(PH,VN);GUN15#,TGN156..IDNP..SA202409
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main46201-0K180-C2iGUN15#..IDNP..H..GCC; GUN156..IDNP..(IDN,PH,VN); GUN156..LHD..IDNP..GEN; GUN156..RHD..GEN;GUN155..IDNP..S..GCC;GUN155..IDNP..H..GEN;GGN155,GUN165,TGN156,166..IDNP..(H,S)..(GCC,GEN); GUN156..VNP;GUN16#,TGN156,166..(H,S)..(IDN,PH,VN)202409
BLACK /GRAY,TRIM0#,2#,4#; BLACK /GRAY,TRIM2#; BLACK /GRAY,TRIM2#,4#; BLACK /GRAY,TRIM22; BLACK /GRAY,TRIM4#
main46201-0K180-C3iGUN156..VNP;TGN166..IDNP..VN;GUN16#,TGN156..H..(PH,VN);GUN156..LHD..IDNP..(GEN,PH)202409
BRACK/CRIMSON,TRIM3#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK/GRAY,TRIM0#,22; BLACK/GRAY,TRIM2#
BLACK/GR RED,TRIM24
BLACK,TRIM2#
BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK/CRIMSON NO.69,TRIM3#
main46201-0K240-C3iGUN15#..THP..H..GCC; GUN155,16#..H..TH; GUN155,165..S..TH;GUN156,TGN156..KEN,MA; GUN156..(CAMP,THP)..GEN; GUN156..H..ARL;GUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..TH202408
BLACK/GRAY,TRIM0#,2#; BLACK/GRAY,TRIM0#,2#,4#; BLACK/GRAY,TRIM0#,22; BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM2#,4#; BLACK/GRAY,TRIM4#
BLACK/GR RED,TRIM24
BLACK,TRIM2#,4#
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46334PROTECTOR, INTERMEDIATE LEVER
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
MADE IN INDONESIA
46430CABLE ASSY, PARKING BRAKE, NO.3
MADE IN THAILAND
MADE IN INDONESIA
46439INSULATOR, PARKING BRAKE CABLE HEAT
46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2
main46439-0K070iGUN156..6F..LA;GUN156,166..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN;GGN155,GUN155,165,TGN156,166..AGTP,IDNP,KENP,MAP,SAP,THP,VNP202408
46451BRACKET, CABLE SUPPORT
8401SWITCH & RELAY & COMPUTER
90105T0117
main90105-T0117
90105T0120
main90105-T0120
90119T0018
main90119-T0018
90119T0126
main90119-T0126
90119T0166
main90119-T0166
90119T0342
main90119-T0342
90119T0422
main90119-T0422
90119T0438
main90119-T0438
90178T0004
main90178-T0004
90178T0019
main90178-T0019
90182T0013
main90182-T0013
9018506006
main90185-06006
90240T0001
main90240-T0001
9046814033
main90468-14033
90468T0011
main90468-T0011
9167380618
main91673-80618
9415180800
main94151-80800
27 parts on this diagram · 2 diagrams in section
