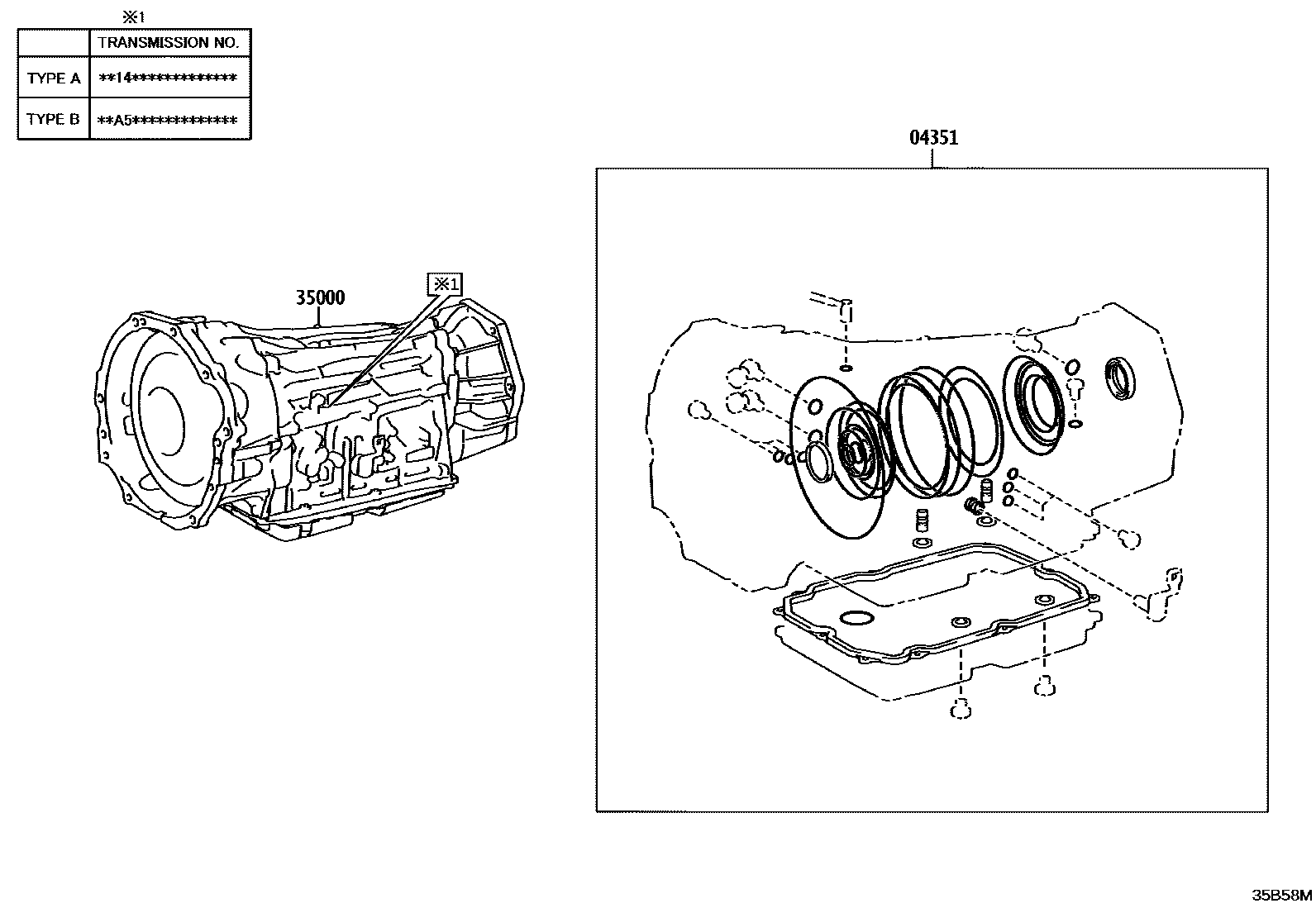

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
main04351-71220iGUN165,TGN166..(IDNP,THP,VNP)..6FC; GUN165..(H,S)..TH; GUN165..L..TH;TGN156,166..(AGTP,IDNP,SAP)..6FC;GUN165..(AGTP,IDNP,SAP,THP)..6FC..(GEN,IDN,LA,PH,SA,VN)202408
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; TYPE B:REFER ILLUST.
main04351-71230iGGN155,GUN15#,TGN156..(CAMP,IDNP,MAP,THP,VNP)..6FC; GGN155,GUN155..(AGTP,IDNP,KENP,SAP)..6FC;GUN156..(AGTP,IDNP,KENP,SAP,THP)..6FC..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,PH,SA,VN); GUN156..TH; GUN156..THP..GCC202408
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
35000TRANSMISSION ASSY, AUTOMATIC
main35000-0K030supersedes 35000-0K040iGUN155..(IDNP,MAP,THP)..6FC..(GCC,GEN,MA,SA); GUN155..TH202408
AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE B:REFER ILLUST.; AC60F,TYPE B:REFER ILLUST.
main35000-0K050supersedes 35000-0K060iGUN165..(H,S)..TH; GUN165..L..TH;GUN165..6FC..(GEN,IDN,PH,VN)202408
AC60E,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE B:REFER ILLUST.; AC60E,TYPE B:REFER ILLUST.
AC60F,TYPE B:REFER ILLUST.
AC60E,TYPE B:REFER ILLUST.
AC60F,TYPE B:REFER ILLUST.
AC60E,TYPE B:REFER ILLUST.
AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE B:REFER ILLUST.; AC60F,TYPE B:REFER ILLUST.
main35000-71340iGUN156..(AGTP,IDNP,KENP,SAP,THP)..6FC..DCRL..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,PH,SA,VN); GUN156..TH; GUN156..THP..GCC202408
AC60F,TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.; AC60F,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; AC60F,TYPE A:REFER ILLUST.
AC60F,TYPE A:REFER ILLUST.
AC60E,TYPE A:REFER ILLUST.
main35000-71390iGUN165..(H,S)..TH; GUN165..L..TH;GUN165..(AGTP,IDNP,SAP,THP)..6FC..(GEN,IDN,LA,PH,SA,VN)202408
AC60E,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; AC60E,TYPE A:REFER ILLUST.
AC60F,TYPE A:REFER ILLUST.
AC60F,TYPE A:REFER ILLUST.
AC60F,TYPE A:REFER ILLUST.
AC60E,TYPE A:REFER ILLUST.
AC60E,TYPE A:REFER ILLUST.
AC60E,TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER ILLUST.
AC60F,TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER ILLUST.; AC60F,TYPE B:REFER ILLUST.
2 parts on this diagram · 2 diagrams in section
