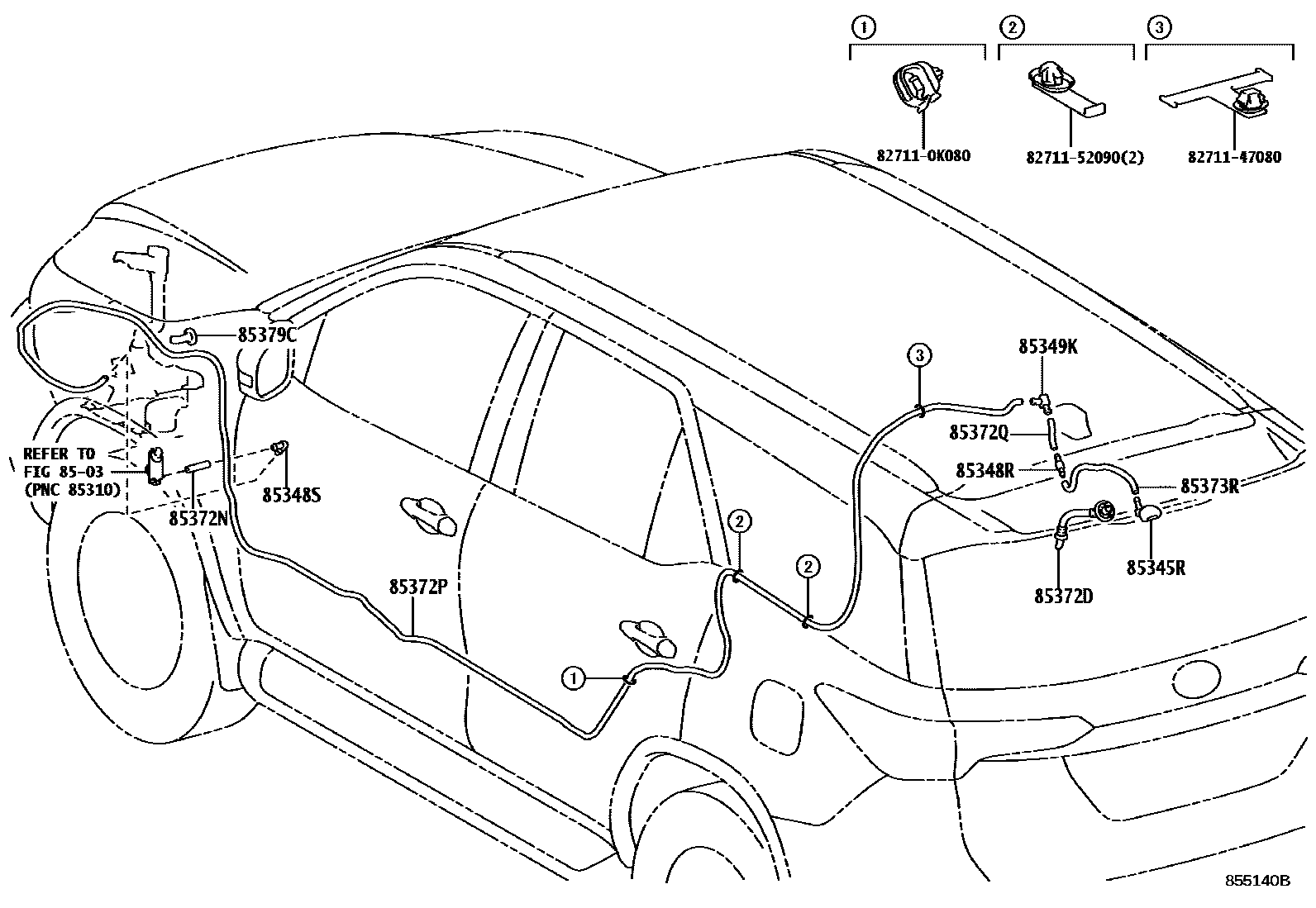

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-0K080iGUN156,166,TGN166..IND202308-202409

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iGUN156,166,TGN166..IND202309-202409

main85375-02330iGGN155,GUN156,TGN156,166..EPT,PKN202308

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iGUN156,166,TGN166..IND202309-202409

main85377-0D040iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-10250iGGN155,GUN156,TGN156,166..EPT,PKN202308

85372DGROMMET, REAR WASHER HOSE

main85373-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33160iGUN15#,TGN156..CAMP,MAP202308-202408

L=40

main90068-33261iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202309-202408

L=40

main90069-46078iGUN156,166,TGN166..IND202310-202409

L=40

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-59150iGUN15#,TGN156..CAMP,MAP202308-202408

L=6080

main90068-59151iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202309-202408

L=6080

main90069-46082iGUN156,166,TGN166..IND202310-202409

L=6080

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90068-33160iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

L=40

main90068-33261iGGN155,GUN15#,16#,TGN156,166..IDNP,VNP202309-202408

L=40

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-59001iGUN156,166,TGN166..IND202309-202409

L=290

main90068-59149iGGN155,GUN156,TGN156,166..EPT,PKN202308

L=290

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-16180iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

827110K080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K080

8271147080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-47080

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

14 parts on this diagram · 1 diagram in section
