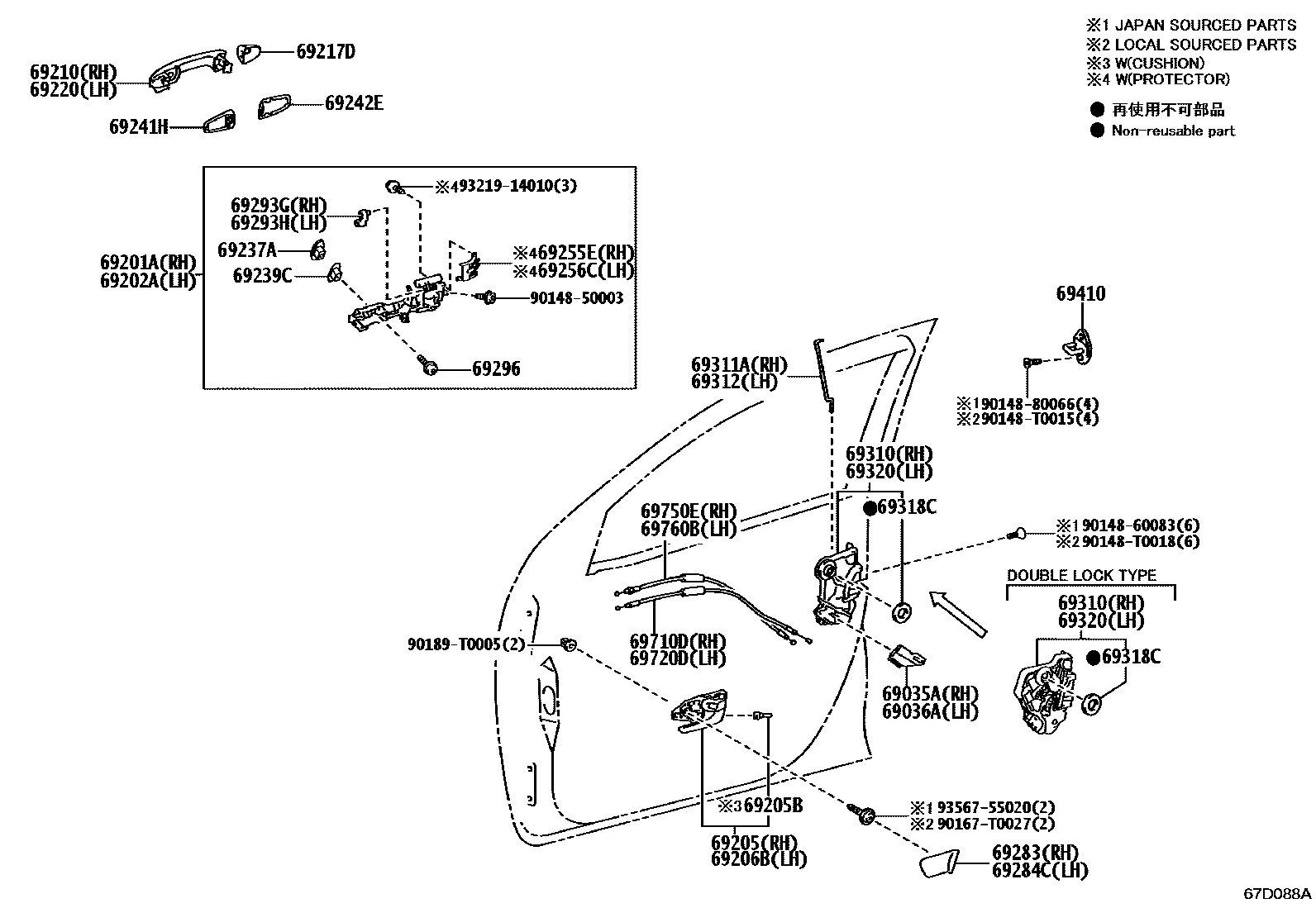

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K160iTGN156,166..THP;GGN155,GUN155..LHD..(AGTP,THP);GUN156,165,TGN166..LHD..(AGTP,THP)..6FC..(H,S)202308-202312
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69205-0K110-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K100-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
main69206-0K150-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6; DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6 ,2QY; SILVER ME.,1D6
ATTITUDE BLACK MC.,218
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PHANTOM BROWN ME.,4W9; PHANTOM BROWN ME.,4W9
PLATED
main69210-0K090iGUN155..L..GEN; GUN165..LHD..IDNP..S;GGN155,GUN15#,166..IDNP..H;TGN156,166..IDNP..(H,S)..(GCC,GEN,IDN,VN); GUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408
PLATED; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); PLATED,WIRELESS DOOR LOCK-WITH(*SES)
PLATED
main69210-0K130iGUN165..IDNP..L..VN; TGN156..IDNP..SA;TGN156..IDNP..L..GCC;GGN155,GUN15#,TGN166..IDNP..(L,S)..(GCC,SA); TGN166..IDNP..VN202309-202408
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PLATED
PLATED
PAINT REQ.
PAINT REQ.; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CKD COLOR,000
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SPARKLING BLACK PEARL CS.,220
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,2SC ,3U5
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,AVANT-GARDE BRONZE ME.,4V8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K902iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
PAINT REQ.; PAINT REQ.,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-0K250iGUN155..L..GEN; GUN156..IDNP..(H,S);GUN165..LHD..IDNP..S;GGN155,GUN155,166,TGN156,166..IDNP..6FC; GUN165..IDNP..L..VN; GUN165..RHD..GEN202309-202408
*CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; *CR,DRIVER SIDE; *CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK),DRIVER SIDE; *CR,WIRELESS DOOR LOCK-WITH(*SES),DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,DRIVER SIDE
main69217-0K380iGUN156..AGTP..H;GUN15#,165..RHD..SA;GGN155,GUN16#,TGN166..6FC..(H,S)..(LA,SA)202308-202410
*CR,PASSENGER SIDE
PLATED,PASSENGER SIDE
PLATED,DRIVER SIDE
main69217-0K911iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
LESS COLOR,DRIVER SIDE; LESS COLOR,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
main69217-0K912iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
LESS COLOR,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; LESS COLOR,PASSENGER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
main69217-0K915iGUN156..IDN; GUN156..IDNP..(PH,VN); GUN165..RHD..IDNP;GUN15#,165,TGN156..IDNP..L..(ARL,GEN,PH,VN); TGN166..IDNP..VN202309-202408
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE,*651; LESS COLOR,DRIVER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
main69217-0K916iGUN156..IDN; GUN156..IDNP..(PH,VN); GUN165..RHD..IDNP;GUN15#,165,TGN156..IDNP..L..(ARL,GEN,PH,VN); TGN166..IDNP..VN202309-202408
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE,*651; LESS COLOR,PASSENGER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6; DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1D6 ,2QY; SILVER ME.,1D6
ATTITUDE BLACK MC.,218
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PHANTOM BROWN ME.,4W9; PHANTOM BROWN ME.,4W9
PLATED
main69210-0K090iGUN155..L..GEN; GUN165..LHD..IDNP..S;GGN155,GUN15#,166..IDNP..H;TGN156,166..IDNP..(H,S)..(GCC,GEN,IDN,VN); GUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408
PLATED; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK); PLATED,WIRELESS DOOR LOCK-WITH(*SES)
PLATED
main69210-0K130iGUN165..IDNP..L..VN; TGN156..IDNP..SA;TGN156..IDNP..L..GCC;GGN155,GUN15#,TGN166..IDNP..(L,S)..(GCC,SA); TGN166..IDNP..VN202309-202408
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
PLATED
PLATED
PAINT REQ.
main69210-0K904iGUN165..RHD..IDNP;GUN155,165,TGN156..IDNP..L..(GEN,PH,VN); TGN166..IDNP..VN202309-202408
PAINT REQ.; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,CKD COLOR,000
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SPARKLING BLACK PEARL CS.,220
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,2SC ,3U5
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,AVANT-GARDE BRONZE ME.,4V8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K902iGUN15#,TGN156..LHD..SAP; GUN156..RHD..6F..SA; GUN156..RHD..6FC..DCRL..SA202402-202410
PAINT REQ.; PAINT REQ.,EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
main69283-0K050-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-0K010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
main69030-02480iGGN155,GUN15#..LHD..THP..H;GUN165,TGN156..LHD..THP..S; GGN155,GUN155..THP..S..GCC202308-202407
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main69030-02530iGUN156..L..BZAGT;GGN155,GUN156,165,TGN166..AGTP..H; GUN165,TGN166..L..LA202311-202410
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
9356755020
main93567-55020
40 parts on this diagram · 1 diagram in section
