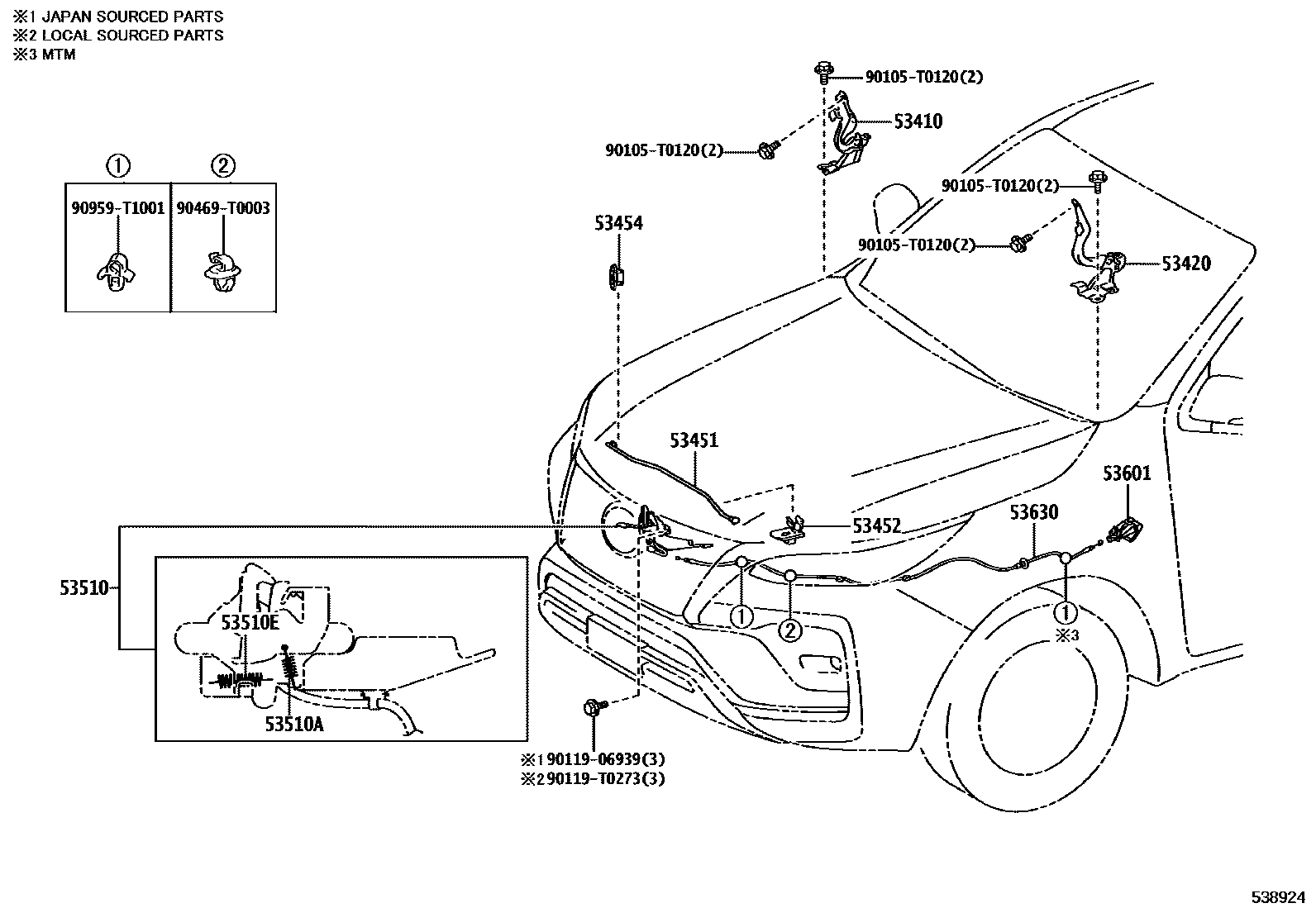

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
main53510-0K740iGUN156,165,TGN156,166..L..LA; GUN156..L..BZAGT;GGN155,GUN156,165,TGN166..AGTP..H202311-202410
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
main53510-0K751iGUN155,165..RHD..IDNP;GUN156,166,TGN166..IDN; GUN156,TGN156,166..RHD..GEN202309-202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K761iGUN155,165..RHD..GEN; GUN156,166..IDN; GUN156,TGN156,166..RHD..IDNP..(ARL,GEN)202309-202408
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-0D040-C0iGUN15#,16#..H..TH; GUN15#,TGN156,166..THP..(H,L)..GCC; GUN155,165..S..TH; GUN155..THP..GEN;GUN156..THP..ARL;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S); GUN156..THP..GEN202308-202407
BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main53601-0D070-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN); GUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC; GUN156,166..PH; GUN156..LHD..IDNP..GEN; GUN165..IDNP..(IDN,PH,VN);GUN15#,166,TGN156,166..IDNP..(IDN,SA,VN)202309-202408
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
53630CABLE ASSY, HOOD LOCK CONTROL
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90959T1001
main90959-T1001
15 parts on this diagram · 2 diagrams in section
