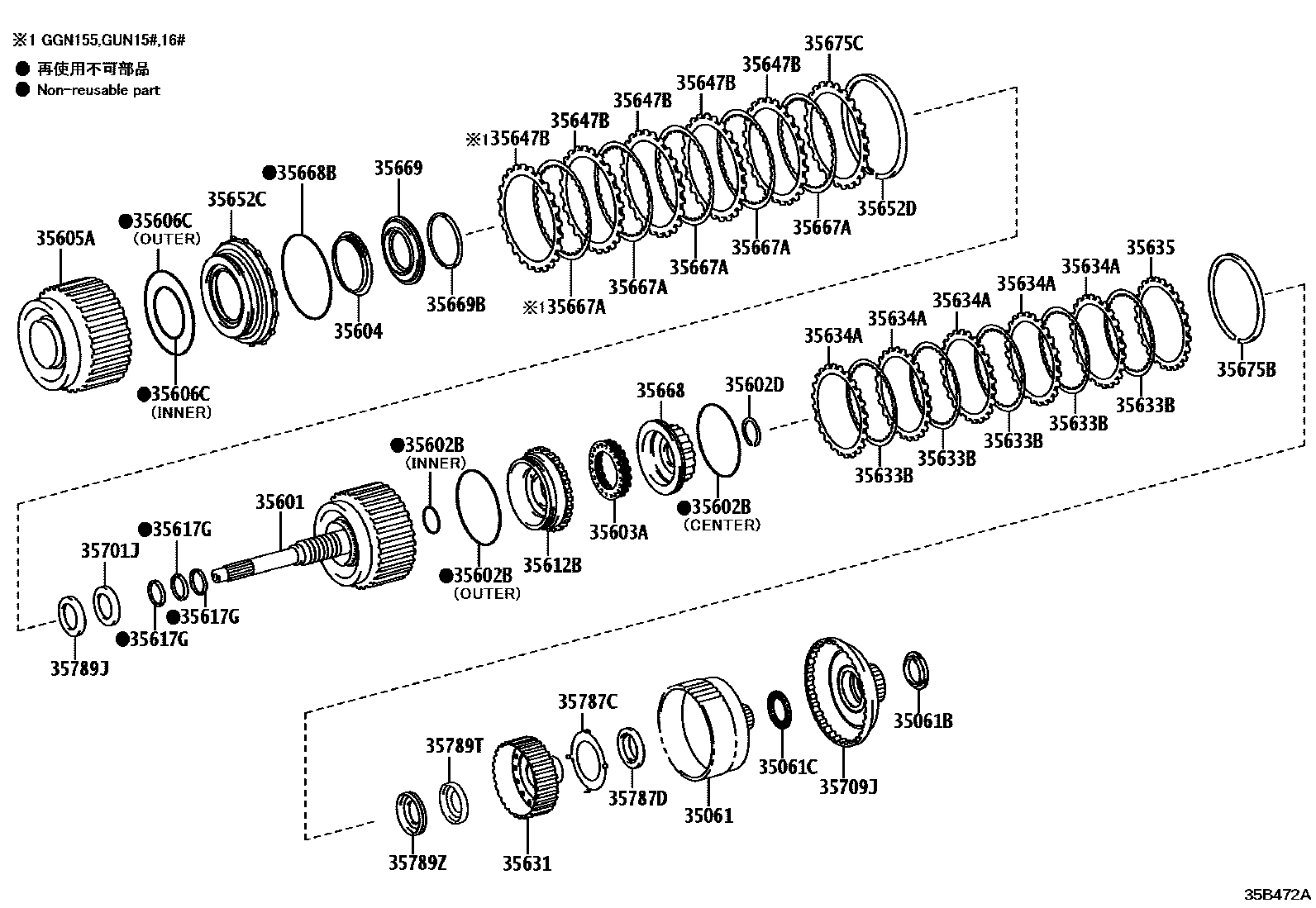

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
main35061-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
main35789-71020iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
main90374-39008iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35601DRUM SUB-ASSY, CLUTCH
(L),TYPE B:REF.35-01
(L),TYPE B:REF.35-01
(L),TYPE B:REF.35-01
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
(J),TYPE B:REF.35-01
35602BRING, O (FOR FORWARD CLUTCH PISTON)
main90301-33017iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T/P A:REF35-01,INNER; T/P B:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
main90301-99096iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
T/PA:REF35-01,CENTER; T/PB:REF35-01,CENTER
main90301-99145iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T/P A:REF35-01,OUTER; T/P B:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
*349,OUTER,(L)
*349,INNER,(L)
*349,CENTER,(L)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
main90520-35003iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L),TYPE B:REF.35-01
main35603-60020iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L),TYPE B:REF.35-01
main35604-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35605ADRUM SUB-ASSY, DIRECT CLUTCH
(L),TYPE B:REF.35-01
TYPE A:REFER 35-01
35606CRING, O (FOR DIRECT CLUTCH PISTON)
main90301-74004iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T/P A:REF35-01,INNER; T/P B:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
main90301-99205iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T/P A:REF35-01,OUTER; T/P B:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
*349,INNER,(L)
*349,OUTER,(L)
35612BPISTON, FORWARD CLUTCH
(L),TYPE B:REF.35-01
main35612-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35617GRING, CLUTCH DRUM OIL SEAL
main35617-71010×3iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
(L),TYPE B:REF.35-01
main35631-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35633-71010×5iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35634-71010×5iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.0,TYPE A:REFER 35-01; T=3.0,TYPE B:REFER 35-01
35635FLANGE, FORWARD CLUTCH
main35635-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.0,TYPE A:REFER 35-01; T=3.0,TYPE B:REFER 35-01
main35635-71020iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.1,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.1,TYPE A:REFER 35-01; T=3.1,TYPE B:REFER 35-01
T=3.2,TYPE A:REFER 35-01; T=3.2,TYPE B:REFER 35-01
T=3.3,TYPE A:REFER 35-01; T=3.3,TYPE B:REFER 35-01
T=3.4,TYPE A:REFER 35-01; T=3.4,TYPE B:REFER 35-01
T=3.5,TYPE A:REFER 35-01
main35635-71070iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.6,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.6,TYPE A:REFER 35-01; T=3.6,TYPE B:REFER 35-01
T=3.7,TYPE A:REFER 35-01; T=3.7,TYPE B:REFER 35-01
T=3.8,TYPE A:REFER 35-01; T=3.8,TYPE B:REFER 35-01
main35635-71100iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.9,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.9,TYPE A:REFER 35-01; T=3.9,TYPE B:REFER 35-01
T=4.0,TYPE A:REFER 35-01; T=4.0,TYPE B:REFER 35-01
main35635-71120iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=4.1,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=4.1,TYPE A:REFER 35-01; T=4.1,TYPE B:REFER 35-01
T=4.2,TYPE A:REFER 35-01; T=4.2,TYPE B:REFER 35-01
35647BPLATE, CLUTCH, NO.2
main35647-71010×4iGGN155,GUN15#,16#..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN); TGN156,166..THP202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35652CPISTON, DIRECT CLUTCH
(L),TYPE B:REF.35-01
(L),TYPE B:REF.35-01
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
(J),TYPE B:REF.35-01
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
main90520-99159iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01
35667ADISK, DIRECT CLUTCH
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35668BALANCER, CLUTCH, NO.1
(L),TYPE B:REF.35-01
main35668-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35668BRING, O(FOR CLUTCH BALANCER)
main90301-99204iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01
35669BALANCER, CLUTCH, NO.2
(L),TYPE B:REF.35-01
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
35669BRING, SNAP (FOR CLUTCH BALANCER)
(J),TYPE B:REF.35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
TYPE A:REFER 35-01
(L),TYPE B:REF.35-01
35675CFLANGE, DIRECT CLUTCH
main35675-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.0,TYPE A:REFER 35-01; T=3.0,TYPE B:REFER 35-01
T=3.1,TYPE A:REFER 35-01; T=3.1,TYPE B:REFER 35-01
main35675-71030iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.2,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.2,TYPE A:REFER 35-01; T=3.2,TYPE B:REFER 35-01
main35675-71040iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
T=3.3,TYPE A:REFER 35-01; T=3.3,TYPE B:REFER 35-01
main35675-71050iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC; GGN155,GUN15#,16#,TGN156,166..IDNP..6FC202308-202408
T=3.4,TYPE A:REFER 35-01; T=3.4,TYPE B:REFER 35-01
main35675-71060iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.5,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.5,TYPE A:REFER 35-01; T=3.5,TYPE B:REFER 35-01
main35675-71070iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
T=3.6,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=3.6,TYPE A:REFER 35-01; T=3.6,TYPE B:REFER 35-01
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
main90374-34015iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35709JDRUM SUB-ASSY, SUN GEAR INPUT
main35709-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35787CRACE, THRUST BEARING, NO.2
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35787DBEARING, THRUST NEEDLE ROLLER
main90374-38005iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
main35789-71010iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
main35789-50050iGGN155,GUN15#,16#,TGN156,166..THP; GUN156,165..TH; GUN156,165..THP..(ARL,GCC,GEN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35789ZBEARING, THRUST NEEDLE ROLLER
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
TYPE B:REFER 35-01,TYPE A:REFER 35-01
33 parts on this diagram · 1 diagram in section
