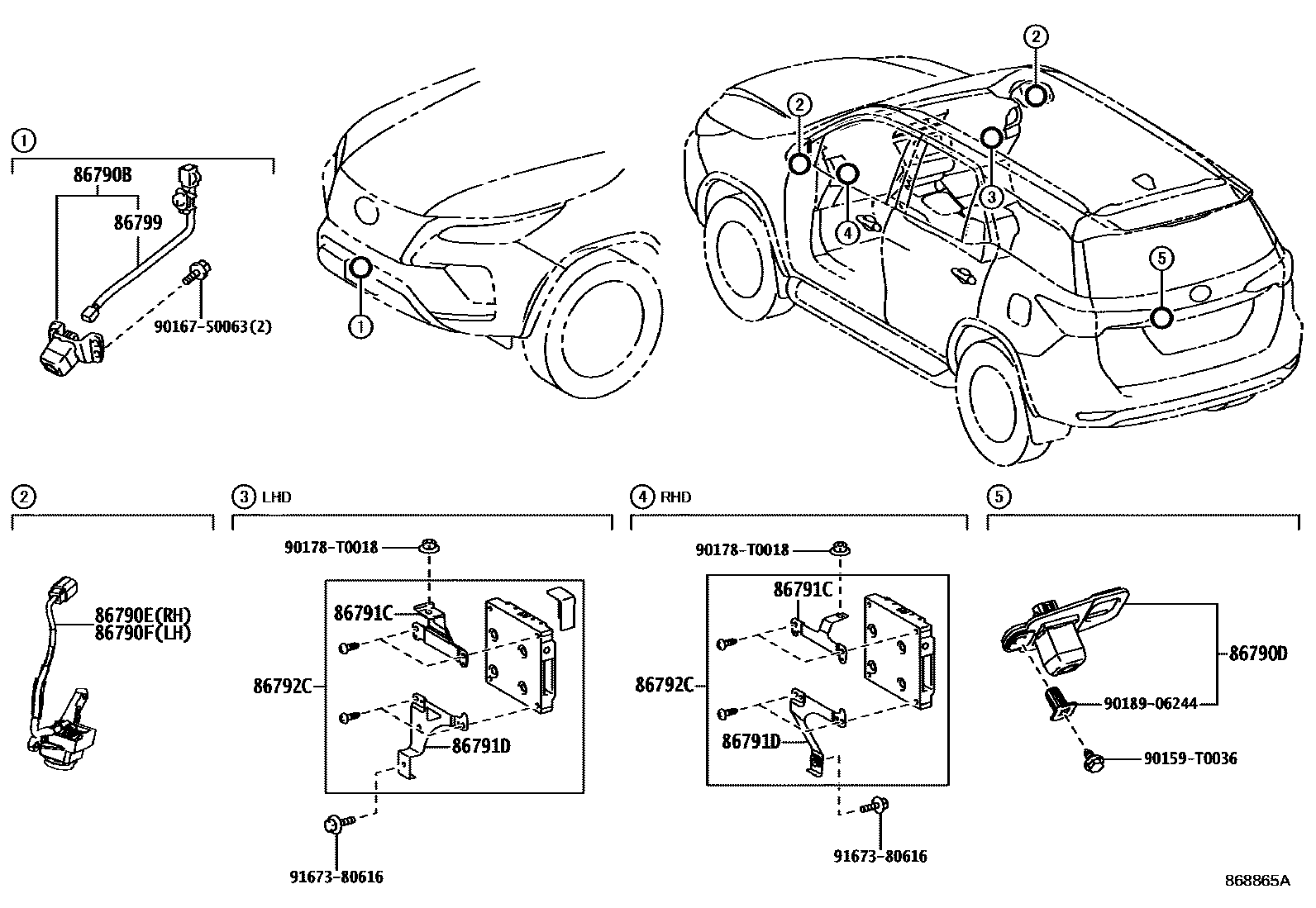

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
main86790-0K180supersedes 86790-0K181iGGN155..H..(GCC,LA);GUN156..IDNP..(GCC,VN);GUN165..(H,S)..(LA,PH);GUN156..RHD..H..(ARL,GEN);TGN166..6FC..(H,S)..(GEN,LA,VN);GUN155,166,TGN156..(H,S)..(SA,VN);GUN156..(AGTP,SAP,THP)..(H,S)..(BZAGT,GCC,GEN,LA,SA); GUN155,165..H..TH; GUN156,166..PH;GUN155,165..H..TH202108-202201
BACK MONITOR-WITH; BACK MONITOR-WITH(*PVM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
BACK MONITOR-WITH; MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
main86790-YY021supersedes 86790-0K181iGUN155,165..H..TH; GUN156,166..TH; GUN156..TH; GUN156..THP..GEN202108-202207
GR SPORT & ACCESSORY&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM PACKAGE & ACCESSORY&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM); MLM PACKAGE&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH); MLM PACKAGE&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
86790DCAMERA ASSY, TELEVISION, RR
main86790-0K110iGUN156,166,TGN166..(6F,6FC)..(L,S)..LA; GUN156..H..LA;GUN156,TGN156..BZAGT;TGN166..AGTP..6FC..(H,S);GGN155,GUN165,TGN168..AGTP202108-202210
BACK MONITOR-WITH
86790ECAMERA ASSY, TELEVISION, SIDE RH
main86790-0K160iGUN156,166..PH; GUN165..S..PH;GUN156..RHD..GEN;TGN166..IDNP..6FC..(GEN,VN);GGN155,GUN156,TGN156..IDNP..H..(GCC,VN)202108-202208
BACK MONITOR-WITH(*PVM)
86790FCAMERA ASSY, TELEVISION, SIDE LH
main86790-0K150iGUN156,166..PH; GUN165..S..PH;GUN156..RHD..GEN;TGN166..IDNP..6FC..(GEN,VN);GGN155,GUN156,TGN156..IDNP..H..(GCC,VN)202108-202208
BACK MONITOR-WITH(*PVM)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
main86791-71030iGUN156,166..PH; GUN156..IDNP..VN; GUN165..S..PH;GGN155,GUN156,TGN156..IDNP..H..(GCC,VN); TGN166..IDNP..VN202108-202208
AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
main86791-71040iGUN156,166..PH; GUN156..IDNP..VN; GUN165..S..PH;GGN155,GUN156,TGN156..IDNP..H..(GCC,VN); TGN166..IDNP..VN202108-202208
AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITH; MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
main86792-71080iGUN156,166..PH; GUN165..S..PH;GGN155,GUN156,TGN156..IDNP..H..(GCC,VN); TGN166..IDNP..VN202108-202208
AUDIO-AVN(8INCH) & *BT&BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
86799WIRE, TELEVISION CAMERA
BACK MONITOR-WITH(*PVM)
GR SPORT&FRONT BUMPER-PAINTED(GR SPORT); GR SPORT&FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
90159T0036
main90159-T0036
9016750063
main90167-50063
90178T0018
main90178-T0018
9018906244
main90189-06244
9167380616
main91673-80616
13 parts on this diagram · 1 diagram in section
