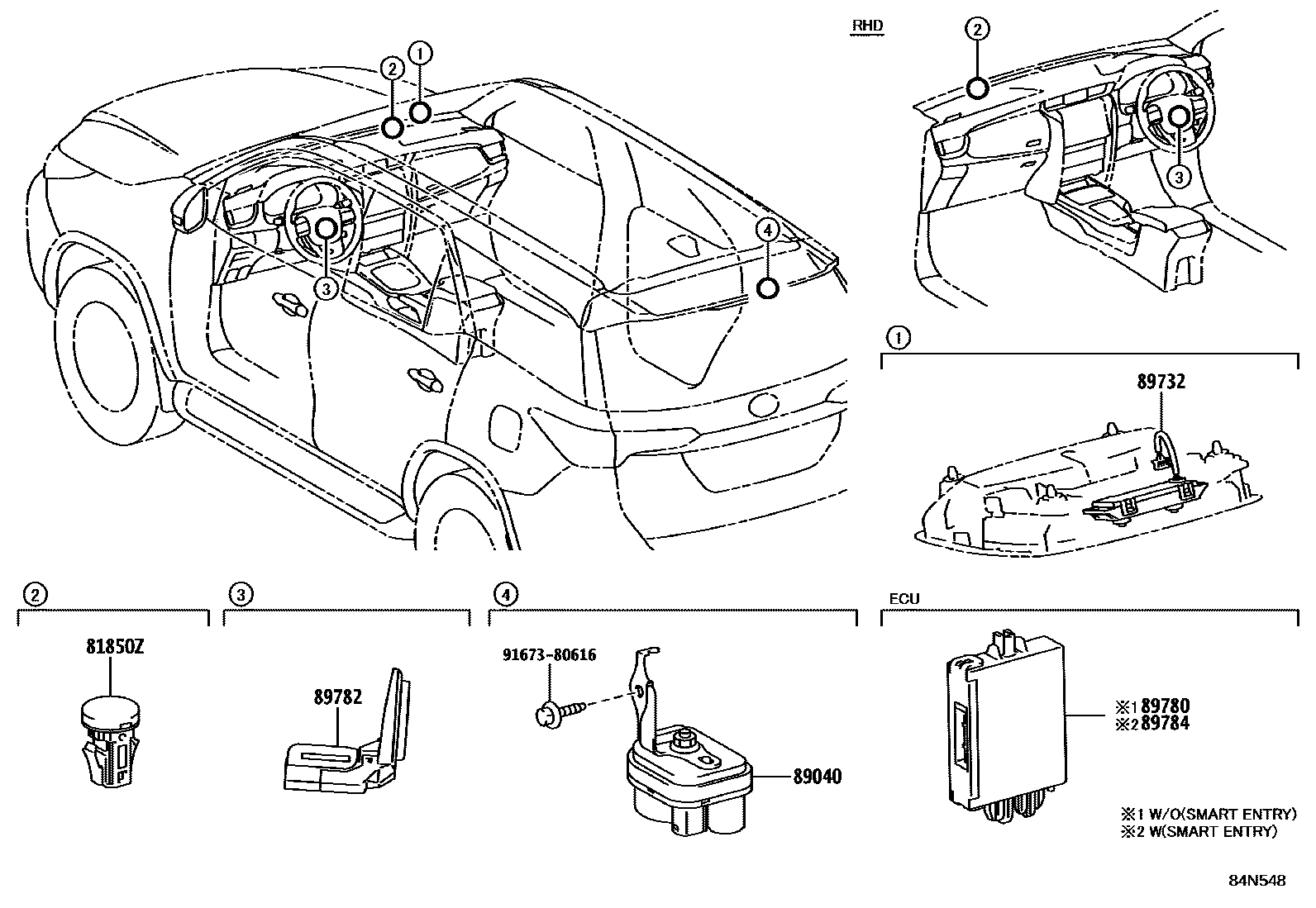

ANTI-THEFT DEVICE
81850ZLAMP ASSY, THEFT WARNING INDICATOR
89040SIREN ASSY, THEFT WARNING
89732SENSOR, THEFT WARNING RADAR
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-0K070iGGN155,GUN155,TGN156..THP..S; GUN156..(L,S)..ARL; TGN168..L;GUN156..LHD..SA;GUN156..(AGTP,THP)..(L,S);GGN155,GUN155,16#,LAN155,TGN156,166..LHD..(AGTP,SAP,THP)..(L,S)202108-202201
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main89780-0K071iGUN15#,165..RHD..SA; TGN168..L;GUN156..LHD..SA;GUN156..(AGTP,THP)..(L,S);GGN155,GUN155,16#,LAN155,TGN156,166..LHD..(AGTP,EPTP,SAP,THP)..(L,S)202202-202207
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main89780-0K110iGUN155,165..LHD..(L,S)..GEN; GUN165..L..(PH,VN);GGN155,GUN155,165,TGN156,166..IDNP..(L,S)..(GCC,GEN); GUN165..RHD..GEN;GGN155,GUN155,TGN156..IDNP..S..GCC202108-202201
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES)
89782COIL, TRANSPONDER KEY
main89782-0K140iGUN165..IDNP..L..(PH,VN);GGN155,GUN155,165,TGN156,166..IDNP..(L,S)..(GCC,GEN,IDN)202108-202208
EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
89784COMPUTER, IMMOBILIZER CODE
9167380616
main91673-80616
7 parts on this diagram · 1 diagram in section
