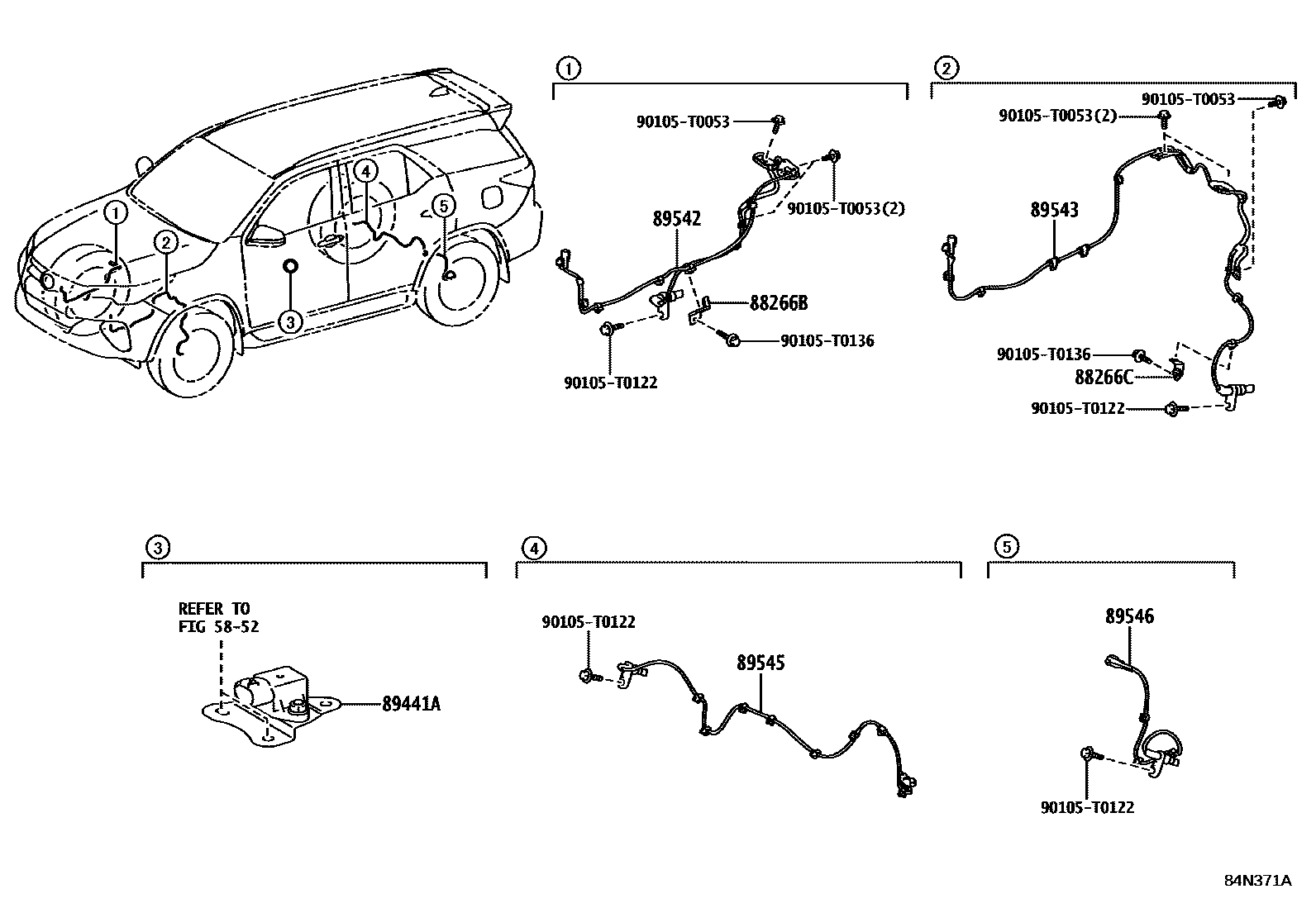

ABS & VSC

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

89441ASENSOR, DECELERATION

main89440-71040iLAN155202109-202301

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

main89542-0K070iGUN156,166,TGN166..IND202110-202209

main89542-0K080iGUN15#,16#,LAN155,TGN156,166..SAP,VNP202108-202301

89543SENSOR, SPEED, FRONT LH

main89543-0K061iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main89543-0K071iGUN156,166,TGN166..IND202110-202209

main89543-0K081iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

89545SENSOR, SPEED, REAR RH

main89545-0K130iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main89545-0K150iGUN156,166,TGN166..IND202110-202209

main89545-0K300iGUN15#,16#,LAN155,TGN156,166..SAP,VNP202108-202301

89546SENSOR, SPEED, REAR LH

main89546-0K130iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main89546-0K150iGUN156,166,TGN166..IND202110-202209

main89546-0K300iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

90105T0053

main90105-T0053

90105T0122

main90105-T0122

90105T0136

main90105-T0136

11 parts on this diagram · 1 diagram in section
