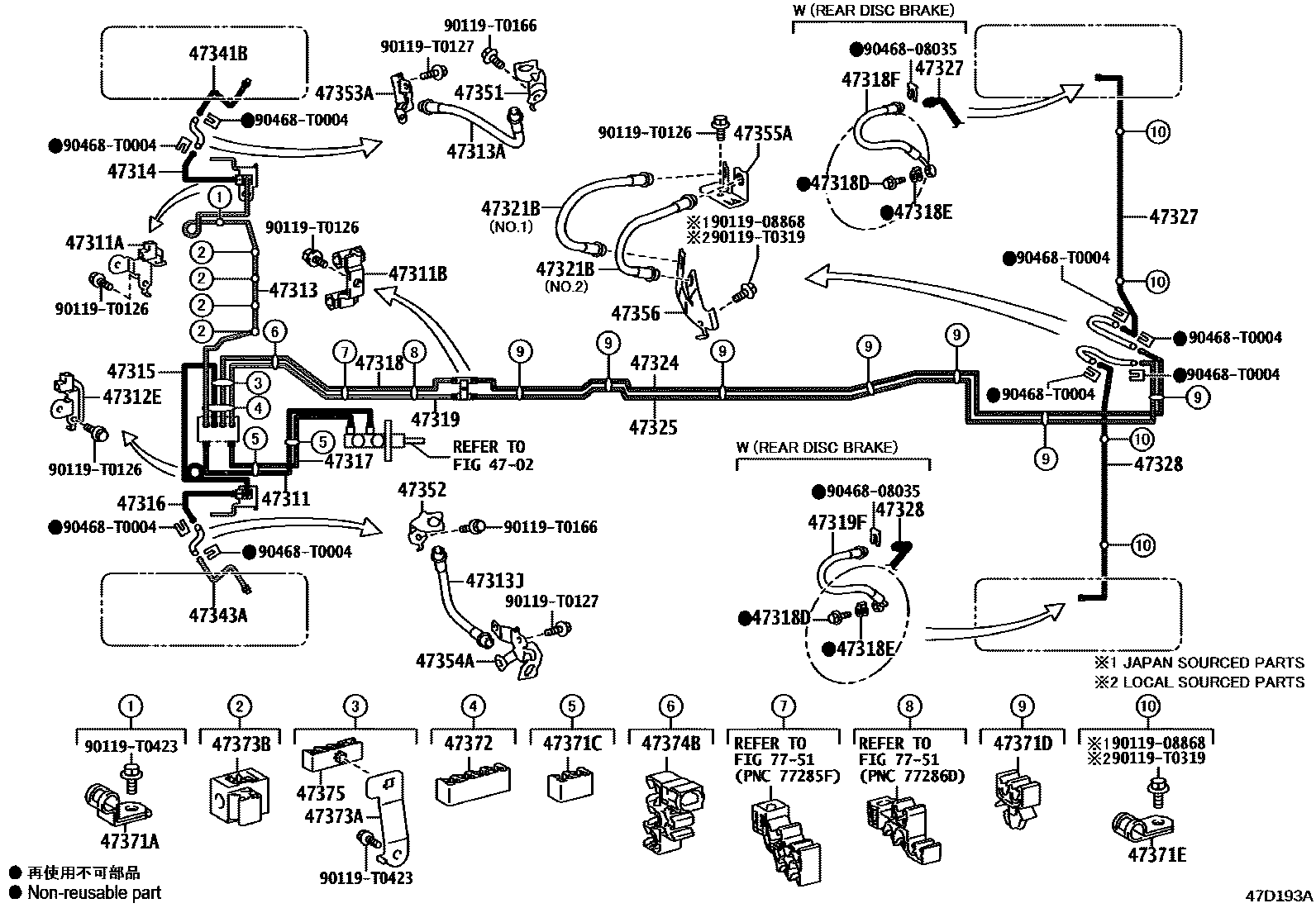

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020iGUN15#,16#..RHD..THP202108-202207

main47311-KK050iGGN155,GUN15#,165,TGN156,166..LHD..THP202108-202207

main47311-KK060iLAN155202109-202301

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10307iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main90412-T0009iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main90412-T0007iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10308iGUN156,166,TGN166..IND202108-202209

main90412-T0010iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47313TUBE, FRONT BRAKE, NO.3

main47313-KK030iGUN15#,16#..RHD..THP202108-202207

main47313-KK040iLAN155202109-202301

main47313-KK060iGGN155,GUN15#,165,TGN156,166..LHD..THP202108-202207

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2098iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main90947-T2122iGUN156,166,TGN166..IND202110-202209

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2098iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

main90947-T2122iGUN156,166,TGN166..IND202110-202209

47314TUBE, FRONT BRAKE, NO.4

main47314-KK020iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

47315TUBE, FRONT BRAKE, NO.5

main47315-KK030iGUN15#,16#,TGN156,166..RHD..(PKN,SA)202108-202303

main47315-KK040iLAN155202109-202301

main47315-KK060iGGN155,GUN15#,165,TGN156,166..LHD..(EPTP,SAP,VNP)202108-202304

47316TUBE, FRONT BRAKE, NO.6

main47316-KK020iGUN156,166,TGN166..IND202108-202209

47317TUBE, FRONT BRAKE, NO.7

main47321-KK020iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202108-202208

main47321-KK030iLAN155202109-202301

main47321-KK040iGGN155,GUN15#,165,TGN156,166..LHD..(EPTP,SAP,VNP)202108-202304

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010iGUN15#,16#,TGN156,166..RHD..(PKN,SA)202108-202303

main47322-KK040iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

main47322-KK050iLAN155202109-202301

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2115iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main90947-T2125iGUN156,166,TGN166..IND202110-202209

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030iGUN156,166,TGN166..IND202108-202209

main47323-KK080iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

main47323-KK090iLAN155202109-202301

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2116iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

main90947-T2126iGUN156,166,TGN166..IND202110-202209

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2099iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

NO.1:REFER ILLUST.

main90947-T2103iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

NO.2:REFER ILLUST.

main90947-T2123iGUN156,166,TGN166..IND202110-202209

NO.1:REFER ILLUST.

main90947-T2124iGUN156,166,TGN166..IND202110-202209

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

47327TUBE, REAR BRAKE, NO.7

main47327-KK190iGUN156,166,TGN166..IND202108-202209

main47327-KK230iTGN166..IDNP..(IDN,VN)202108-202208

47328TUBE, REAR BRAKE, NO.8

main47328-KK190iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main47328-KK230iTGN166..IDNP..(IDN,VN)202108-202208

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K070iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main47341-0K080iGGN155,GUN156,TGN156,166..EPT,PKN202108-202304

main47341-0K090iGUN15#,16#,LAN155,TGN156..SA202109-202301

main47341-0K100iGUN156,165,TGN166..VNP202108-202209

main47341-0K110iGUN156,166,TGN166..IND202110-202209

main47341-0K130iGUN15#,TGN156..MA202110-202208

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K070iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main47343-0K080iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main47343-0K090iGUN15#,16#,LAN155,TGN156..SA202109-202301

main47343-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main47343-0K110iGUN156,166,TGN166..IND202110-202209

main47343-0K130iGUN15#,TGN156..MA202110-202208

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-KK010iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-KK010iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK020iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007iGGN155,GUN15#,165,TGN156,166..LHD..THP; GUN15#,16#..RHD..THP202108-202207

47371CCLAMP, BRAKE TUBE, NO.7

main90949-T1033×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGUN156,166,TGN166..IND202108-202209

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGUN156,166,TGN166..IND202108-202209

main90949-T1028iGGN155,GUN15#,165,TGN156,166..LHD..(EPTP,SAP,VNP)202108-202304

main90949-T1029iLAN155202109-202301

47373ABRACKET, TUBE CLAMP

main90949-T2003iGGN155,GUN15#,165,TGN156,166..LHD..THP202108-202207

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGUN15#,16#..RHD..THP202108-202207

main90949-T1030×4iGGN155,GUN156,16#,TGN156,16#..AGTP202108-202210

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGUN15#,16#..RHD..THP202108-202207

main90949-T1032iGGN155,GUN15#,165,LAN155,TGN156,166..LHD..(EPTP,SAP,VNP)202108-202304

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028iGUN15#,16#..RHD..THP202108-202207

main90949-T1031iGGN155,GUN15#,165,LAN155,TGN156,166..LHD..(EPTP,SAP,VNP)202108-202304

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0319

main90119-T0319

90119T0423

main90119-T0423

9046808035

main90468-08035

90468T0004

main90468-T0004

49 parts on this diagram · 5 diagrams in section
