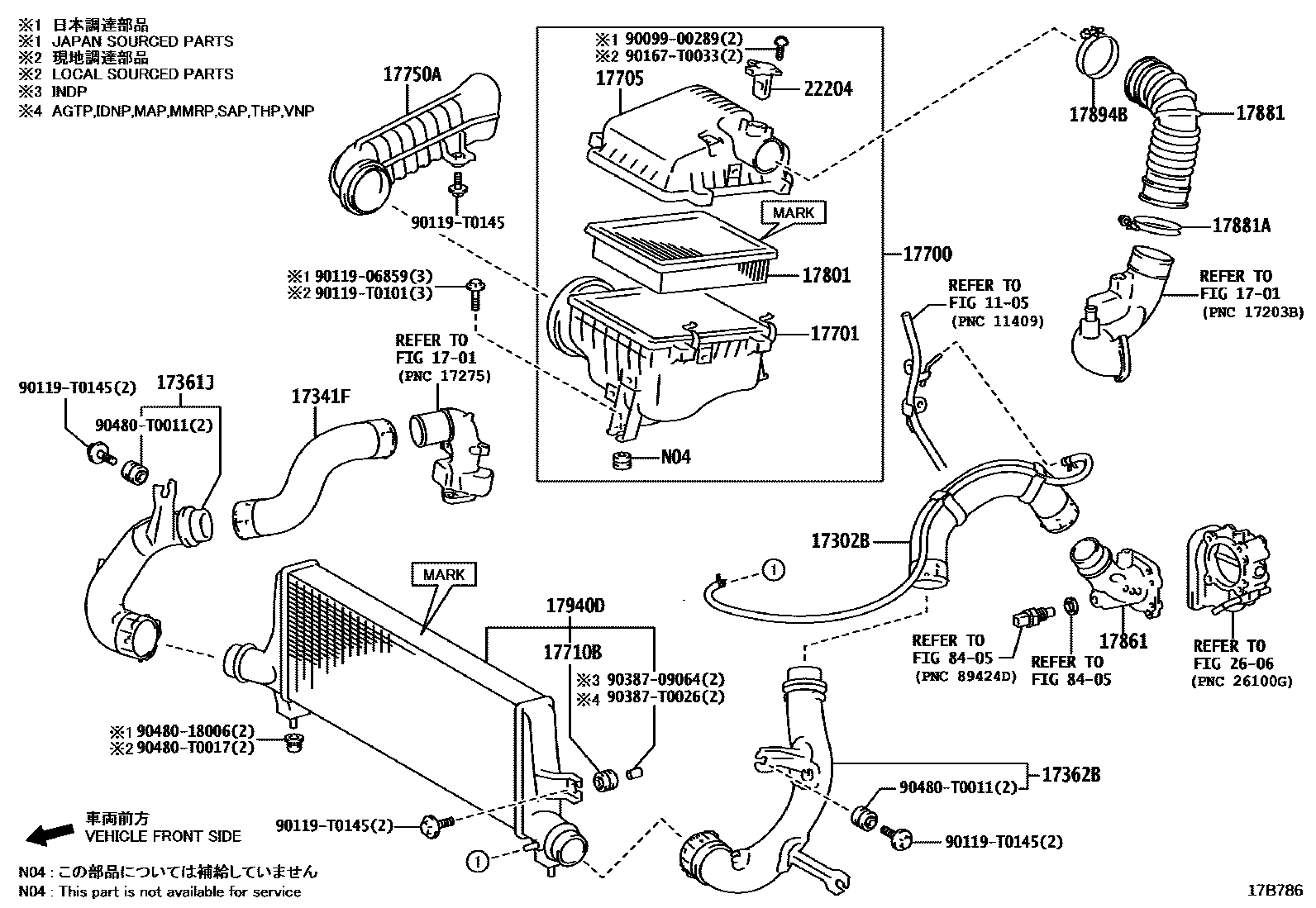

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1701MANIFOLD

→ Go to FIG 17-01

17302BHOSE SUB-ASSY, AIR

main17302-0E021i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202108-202210

main17302-0E022i1GDFTV..GUN156..PKN202210-202301

17341FHOSE, AIR, NO.1

main17341-0E021i1GDFTV,2GDFTV..GUN15#,16#..AGTP,IDNP,INDP,MAP,PKNP,SAP,THP,VNP202108-202207

main17341-0E022i1GDFTV..GUN156,166..IND202208-202210

17361JTUBE, AIR, NO.1

main17361-0E010i1GDFTV,2GDFTV..GUN15#,16#..IDNP,MAP202108-202210

17362BTUBE, AIR, NO.2

main17362-0E010i1GDFTV,2GDFTV..GUN15#,16#..PKNP,SAP,VNP202108-202210

17700CLEANER ASSY, AIR

main17700-0C180i1GRFE..GGN155..EPT202108-202304

main17700-0C200i1GRFE..GGN155..LA202111-202210

main17700-0C210i2TRFE..TGN156..MA202108-202304

main17700-0C220i2TRFE..TGN156,166..IDNP202108-202209

main17700-0C240i2TRFE..TGN156..SA202109-202301

main17700-0C250i2TRFE..TGN156,16#..AGTP202111-202210

main17700-0L290i5LE..LAN155202109-202301

main17700-0L350i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202208

THA SOURCED PARTS

main17700-0L360i1GDFTV,2GDFTV..GUN15#,16#..IDNP202108-202209

IDN SOURCED PARTS

main17700-0L370i1GDFTV..GUN156,166..IND202110-202209

IND SOURCED PARTS

main17700-0L380i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

ZAF SOURCED PARTS

main17700-0L390i1GDFTV,2GDFTV..GUN156,16#..AGTP202111-202210

ARG SOURCED PARTS

main17700-0P210i1GRFE..GGN155..IDNP202108-202208

17701CASE SUB-ASSY, AIR CLEANER

main17701-0C150i1GDFTV,2GDFTV..GUN156,165..VNP202108-202209

IDN SOURCED PARTS

main17701-0C160i1GDFTV..GUN156,166..IND202110-202209

IND SOURCED PARTS

main17701-0C170i1G#,2GDFTV..GGN155,GUN15#,16#..THP202108-202304

THA SOURCED PARTS

main17701-0C180i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

main17701-0C190i1G#,2GDFTV..GGN155,GUN156,16#..AGTP202111-202210

ARG SOURCED PARTS

main17701-0C200i2TRFE..TGN156,166..EPTP,PKNP,VNP202108-202304

main17701-0C210i2TRFE..TGN166..IND202108-202209

main17701-0C220i2TRFE..TGN156..SA202109-202301

main17701-0C230i2TRFE..TGN156,16#..AGTP202111-202210

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C140i2TRFE..TGN156,166..IDNP202108-202209

main17705-0C160i2TRFE..TGN156,166..EPTP,PKNP,VNP202108-202304

main17705-0C170i2TRFE..TGN156..SA202109-202301

main17705-0C180i2TRFE..TGN156,16#..AGTP202111-202210

main17705-0C190i1GRFE..GGN155..THP202108-202304

main17705-0C210i1GRFE..GGN155..LA202111-202210

main17705-0L180i1GRFE..GGN155..IDNP202108-202208

main17705-0L280i5LE..LAN155202109-202301

main17705-0L290i1GDFTV,2GDFTV..GUN15#..MA202108-202208

THA SOURCED PARTS

main17705-0L300i1GDFTV,2GDFTV..GUN156,165..VNP202108-202209

IDN SOURCED PARTS

main17705-0L310i1GDFTV..GUN156,166..IND202110-202209

IND SOURCED PARTS

main17705-0L320i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

ZAF SOURCED PARTS

main17705-0L330i1GDFTV,2GDFTV..GUN156,16#..AGTP202111-202210

ARG SOURCED PARTS

17710BGROMMET

main90480-11016i1GDFTV..GUN156,166..IND202110-202209

(J)

main90480-F0002i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

main90480-T0011i1GDFTV,2GDFTV..GUN156,16#..AGTP202108-202210

(L)

17750AINLET ASSY, AIR CLEANER

main17750-05031i5LE..LAN155202109-202301

main17750-0L050i1GRFE..GGN155..THP202108-202304

main17750-0L060i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202207

MARK = 17750-0L060

main17750-0L070i2TRFE..TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

main17750-0L090i1GRFE..GGN155..LA202111-202210

main17750-0L120i1GRFE..GGN155..IDNP202108-202208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0L040i2TRFE..TGN156,16#..AGTP202108-202304

main17801-0L050i1GDFTV,2GDFTV..GUN156,16#..INDP,VNP202108-202209

MARK 17801-0L050

17861CONNECTOR, INTAKE AIR

main17861-0C110i2TRFE..TGN168202111-202210

main17861-0C130i2TRFE..TGN156,166..IDNP..L202108-202304

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main17861-0C150i2TRFE..TGN156,166..PKNP,VNP202108-202210

main17861-0C150i2TRFE..TGN166..L..GEN;2TRFE..TGN156..LHD..IDNP;2TRFE..TGN166..IDNP..(GCC,IDN,VN)202108-202208

EXHAUST EMISSION CONTROL-EURO6C

main17861-0C150i2TRFE..TGN166..L..GEN;2TRFE..TGN156..LHD..IDNP;2TRFE..TGN166..IDNP..(GCC,IDN,VN)202108-202208

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main17861-0C150i2TRFE..TGN166..L..GEN;2TRFE..TGN156..LHD..IDNP;2TRFE..TGN166..IDNP..(GCC,IDN,VN)202108-202208

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main17861-0C150i2TRFE..TGN166..L..GEN;2TRFE..TGN156..LHD..IDNP;2TRFE..TGN166..IDNP..(GCC,IDN,VN)202108-202208

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

main17861-0E010i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202303

THA SOURCED PARTS

main17861-0E030i1GDFTV..GUN156..THP..ARL202108-202209

IND SOURCED PARTS

main17861-11140i2GDFTV..GUN155,165..THP202108-202207

(J)

17881HOSE, AIR CLEANER, NO.1

main17881-05060i5LE..LAN155202109-202301

main17881-0C110i2TRFE..TGN156,166..THP202108-202304

THA SOURCED PARTS

main17881-0C111i2TRFE..TGN156,166..PKN202310

THA SOURCED PARTS

main17881-0C120i2TRFE..TGN166..IND202108-202209

IDN SOURCED PARTS

main17881-0E020i1GDFTV,2GDFTV..GUN15#,16#..THP202108-202302

THA SOURCED PARTS

main17881-0E021i1GDFTV..GUN156202307

THA SOURCED PARTS

main17881-0E030i1GDFTV,2GDFTV..GUN15#,16#..IDNP202108-202209

IDN SOURCED PARTS

main17881-0E040i1GDFTV..GUN156,166..IND202110-202209

IND SOURCED PARTS

main17881-0E050i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

ZAF SOURCED PARTS

main17881-0P160i1GRFE..GGN155..LA202108-202304

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0005i1G#,2GDFTV..GGN155,GUN15#,16#..IDNP,MAP202108-202304

main90460-T0020i5LE..LAN155202108-202304

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-T0020i1G#,2GDFTV..GGN155,GUN156,16#..AGTP202108-202304

17940DINTERCOOLER ASSY

main17940-0E010i1GDFTV,2GDFTV..GUN156,165..PKNP,VNP202108-202208

MARK=0E010

main17940-0E020i1GDFTV..GUN156,166..IND202110-202209

MARK=0E020

main17940-0E030i1GDFTV,2GDFTV..GUN15#,16#..SA202109-202301

MARK=0E030

main17940-0E040i1GDFTV,2GDFTV..GUN156,16#..AGTP202111-202210

MARK=0E040

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1GRFE..GGN155..THP202108-202304

main22204-30030i1GDFTV..GUN156,166..IND202108-202210

main22204-75040i2TRFE..TGN156,166..THP202108-202304

2606VENTURI

→ Go to FIG 26-06

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900289

main90099-00289

9011906859

main90119-06859

90119T0101

main90119-T0101

90119T0145

main90119-T0145

90167T0033

main90167-T0033

9038709064

main90387-09064

90387T0026

main90387-T0026

9048018006

main90480-18006

90480T0011

main90480-T0011

90480T0017

main90480-T0017

30 parts on this diagram · 4 diagrams in section
