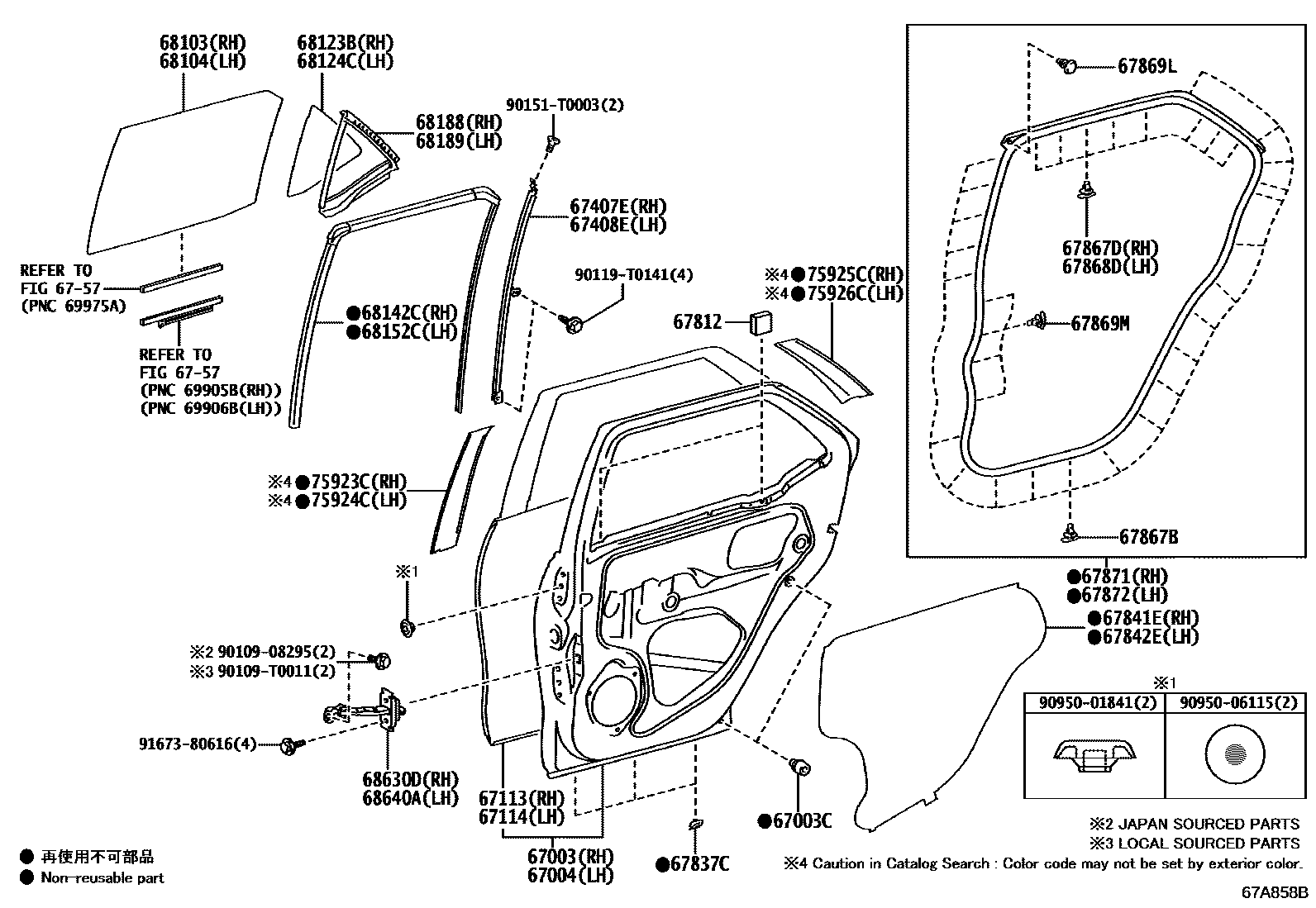

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

67003CCUSHION, REAR DOOR PANEL

main90541-09131×4iGUN156,TGN156,166..PKN202006-202201

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK030iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

67113PANEL, REAR DOOR, OUTER RH

main67113-KK030iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

67114PANEL, REAR DOOR, OUTER LH

main67114-KK030iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K070iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main67407-0K080iGGN155,GUN156,165,TGN156,16#..AGTSU202007-202110

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K070iGUN156,TGN156,166..PKN202006-202201

main67408-0K080iGGN155,GUN156,165,TGN156,16#..AGTSU202007-202110

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67812PAD, REAR DOOR SILENCER

main69759-0K030×4iGUN156,TGN156,166..PKN202006-202201

main69759-0K060×4iGUN15#,16#,LAN155,TGN156..SA202009-202109

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K091×6iGUN15#,16#..RHD..THSUV202006-202108

main67837-0K092×6iGUN156,TGN156,166..PKN202006-202201

PLANT TMT

main67837-0K102×6iGUN15#,16#,LAN155,TGN156..SA202009-202109

main67837-0K112×6iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main67837-0K121×6iGUN156,TGN156,166..PKN202011-202201

EXCEPT PLANT TMT

main67837-0K210×6iGUN15#,TGN156..MA202101-202110

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K160iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main67841-0K170iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main67841-0K180iGUN156,166,TGN166..IND202101-202109

main67841-0K230iGUN15#,16#,LAN155,TGN156..SA202009-202109

main67841-0K260iGUN156,165,TGN166..VNSUV202009-202204

main67841-0K290iGUN156,TGN156,166..PKN202104-202201

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K030iGGN155,GUN15#,16#,TGN156,166..EPTSU,MASUV,THSUV202006-202203

main67842-0K040iGGN155,GUN15#,16#,TGN156,166..IDNSU202007-202108

main67842-0K050iGUN156,166,TGN166..IND202101-202109

main67842-0K110iGUN156,165,TGN166..VNSUV202009-202204

main67842-0K150iGUN15#,16#,LAN155,TGN156..SA202009-202109

main67842-0K170iGUN156,TGN156,166..PKN202104-202201

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×22iGUN15#,TGN156..MA202101-202110

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52020×8iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52040×8iGGN155,GUN156,165,TGN156,16#..AGTSU202006-202110

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-0K010iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main90467-06084×2iGUN156,TGN156,166..PKN202006-202201

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020×8iGUN156,TGN156,166..PKN202006-202201

main67867-50050×8iGGN155,GUN15#,16#,LAN155,TGN156,166..IDNSU,INDSU,SASUV,VNSUV202007-202204

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K100iGGN155,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV202006-202105

main67871-0K101iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202106-202203

main67871-0K130iGUN15#,16#,LAN155,TGN156..SA202009-202102

main67871-0K131iGUN15#,16#,LAN155,TGN156..SA202103-202109

main67871-0K140iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main67871-0K150iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202102

main67871-0K151iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202103-202204

main67871-0K160iGUN156,166,TGN166..IND202101-202109

main67871-0K170iGUN15#,TGN156..MA202101-202102

main67871-0K171iGUN15#,TGN156..MA202103-202110

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K100iGGN155,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV202006-202105

main67872-0K101iGGN155,GUN15#,16#,TGN156,166..EPTSU,THSUV202106-202203

main67872-0K130iGUN15#,16#,LAN155,TGN156..SA202009-202102

main67872-0K131iGUN15#,16#,LAN155,TGN156..SA202103-202109

main67872-0K140iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main67872-0K150iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202102

main67872-0K151iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202103-202204

main67872-0K160iGUN156,166,TGN166..IND202101-202109

main67872-0K170iGUN15#,TGN156..MA202101-202102

main67872-0K171iGUN15#,TGN156..MA202103-202110

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K301iGUN156..L..ARL;GUN15#..THSUV..(GEN,TH);GUN16#,TGN156,166..THSUV;GGN155,GUN155..THSUV..(L,S)202006-202108

main68113-0K311iGGN155,TGN166..EPT;GUN156..(H,S)..ARL202006-202203

main68113-0K330supersedes 68113-0K320iGUN156,166..RHD..SA; GUN156..LHD..SA;GUN155,165,LAN155,TGN156..SA202009-202109

BACK GLASS-FIX TYPE(PRIVACY)

main68113-0K340iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68113-0K350iGUN155..RHD..GEN;GGN155,GUN155..LHD..IDNSU..(L,S);GGN155,GUN156..(IDNSU,VNSUV)..(GEN,PH,VN);GUN16#,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,PH,VN)202007-202204

main68113-0K360iGUN155..LHD..H..GEN;GUN155,165,TGN166..IDN; GUN165..LHD..GEN202007-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68113-0K390iGUN15#,TGN156..MA202101-202110

main68113-0K420iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156..THSUV..S202006-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68113-0K430iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68113-0K440iGUN156,166,TGN166..IND202101-202109

main68113-0K480iGUN156,TGN156,166..PKN202104-202201

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K301iGUN156..L..ARL;GUN15#..THSUV..(GEN,TH);GUN16#,TGN156,166..THSUV;GGN155,GUN155..THSUV..(L,S)202006-202108

main68114-0K311iGGN155,TGN166..EPT;GUN156..(H,S)..ARL202006-202203

main68114-0K330supersedes 68114-0K320iGUN156,166..RHD..SA; GUN156..LHD..SA;GUN155,165,LAN155,TGN156..SA202009-202109

BACK GLASS-FIX TYPE(PRIVACY)

main68114-0K340iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68114-0K350iGUN155..RHD..GEN;GGN155,GUN155..LHD..IDNSU..(L,S);GGN155,GUN156..(IDNSU,VNSUV)..(GEN,PH,VN);GUN16#,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,PH,VN)202007-202204

main68114-0K360iGUN155..LHD..H..GEN;GUN155,165,TGN166..IDN; GUN165..LHD..GEN202007-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68114-0K390iGUN15#,TGN156..MA202101-202110

main68114-0K420iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156..THSUV..S202006-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68114-0K430iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68114-0K440iGUN156,166,TGN166..IND202101-202109

main68114-0K480iGUN156,TGN156,166..PKN202104-202201

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K151iGUN156..L..ARL;GUN15#..THSUV..(GEN,TH);GUN16#,TGN156,166..THSUV;GGN155,GUN155..THSUV..(L,S)202006-202108

main68123-0K161iGGN155,TGN166..EPT;GUN156..(H,S)..ARL202006-202203

main68123-0K180supersedes 68123-0K170iGUN156,166..RHD..SA; GUN156..LHD..SA;GUN155,165,LAN155,TGN156..SA202009-202109

BACK GLASS-FIX TYPE(PRIVACY)

main68123-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68123-0K200iGUN155..RHD..GEN;GGN155,GUN155..LHD..IDNSU..(L,S);GGN155,GUN156..(IDNSU,VNSUV)..(GEN,PH,VN);GUN16#,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,PH,VN)202007-202204

main68123-0K210iGUN155..LHD..H..GEN;GUN155,165,TGN166..IDN; GUN165..LHD..GEN202007-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68123-0K290iGUN15#,TGN156..MA202101-202110

main68123-0K310iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156..THSUV..S202006-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68123-0K320iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68123-0K350iGUN156,166,TGN166..IND202101-202109

main68123-0K390iGUN156,TGN156,166..PKN202104-202201

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K151iGUN156..L..ARL;GUN15#..THSUV..(GEN,TH);GUN16#,TGN156,166..THSUV;GGN155,GUN155..THSUV..(L,S)202006-202108

main68124-0K161iGGN155,TGN166..EPT;GUN156..(H,S)..ARL202006-202203

main68124-0K180supersedes 68124-0K170iGUN156,166..RHD..SA; GUN156..LHD..SA;GUN155,165,LAN155,TGN156..SA202009-202109

BACK GLASS-FIX TYPE(PRIVACY)

main68124-0K190iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68124-0K200iGUN155..RHD..GEN;GGN155,GUN155..LHD..IDNSU..(L,S);GGN155,GUN156..(IDNSU,VNSUV)..(GEN,PH,VN);GUN16#,TGN156,166..(IDNSU,VNSUV)..(GCC,GEN,PH,VN)202007-202204

main68124-0K210iGUN155..LHD..H..GEN;GUN155,165,TGN166..IDN; GUN165..LHD..GEN202007-202108

BACK GLASS-FIX TYPE(PRIVACY)

main68124-0K290iGUN15#,TGN156..MA202101-202110

main68124-0K310iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156..THSUV..S202006-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68124-0K320iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156..IDNSU..S..GCC202007-202108

BACK GLASS-FIX TYPE(GREEN, *HSEA)

main68124-0K350iGUN156,166,TGN166..IND202101-202109

main68124-0K390iGUN156,TGN156,166..PKN202104-202201

68142CRUN, REAR DOOR GLASS, RH

main68142-0K090iGUN156,TGN156,166..PKN202006-202201

main68142-0K120iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68142-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68142-0K140iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68142-0K150iGUN156,166,TGN166..IND202101-202109

main68142-0K160iGUN15#,TGN156..MA202101-202110

68152CRUN, REAR DOOR GLASS, LH

main68152-0K090iGUN156,TGN156,166..PKN202006-202201

main68152-0K120iGUN15#,16#,LAN155,TGN156..SA202009-202109

main68152-0K130iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main68152-0K140iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68152-0K150iGUN156,166,TGN166..IND202101-202109

main68152-0K160iGUN15#,TGN156..MA202101-202110

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K060iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,SASUV,THSUV202006-202203

main68188-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68188-0K100iGUN156,166,TGN166..IND202101-202109

main68188-0K150iGUN15#,TGN156..MA202101-202110

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K060iGUN156,TGN156,166..PKN202006-202201

main68189-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68189-0K100iGUN156,166,TGN166..IND202101-202109

main68189-0K150iGUN15#,TGN156..MA202101-202110

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68630-0K080iGUN15#,16#,LAN155,TGN156,166..IND,SA202009-202109

main68630-0K091iGUN156,TGN156,166..PKN202006-202201

main68630-0K100iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K070iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main68630-0K080iGUN15#,16#,LAN155,TGN156,166..IND,SA202009-202109

main68630-0K091iGUN156,TGN156,166..PKN202006-202201

main68630-0K100iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN156,TGN156,166..PKN202006-202201

main75923-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75923-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

main75923-0K130iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75923-0K140iGUN156,166,TGN166..IND202101-202109

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN156,TGN156,166..PKN202006-202201

main75924-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75924-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

main75924-0K130iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75924-0K140iGUN156,166,TGN166..IND202101-202109

75925CTAPE, BLACK OUT, NO.3 RH

main75925-0K030iGUN156,TGN156,166..PKN202006-202201

main75925-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75925-0K050iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75925-0K060iGUN156,166,TGN166..IND202101-202109

main75925-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

75926CTAPE, BLACK OUT, NO.3 LH

main75926-0K030iGUN156,TGN156,166..PKN202006-202201

main75926-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU202011-202110

main75926-0K050iGGN155,GUN15#,16#,TGN156,166..IDNSU,VNSUV202007-202204

main75926-0K060iGUN156,166,TGN166..IND202101-202109

main75926-0K090iGUN15#,16#,LAN155,TGN156..SA202009-202109

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

40 parts on this diagram · 2 diagrams in section
