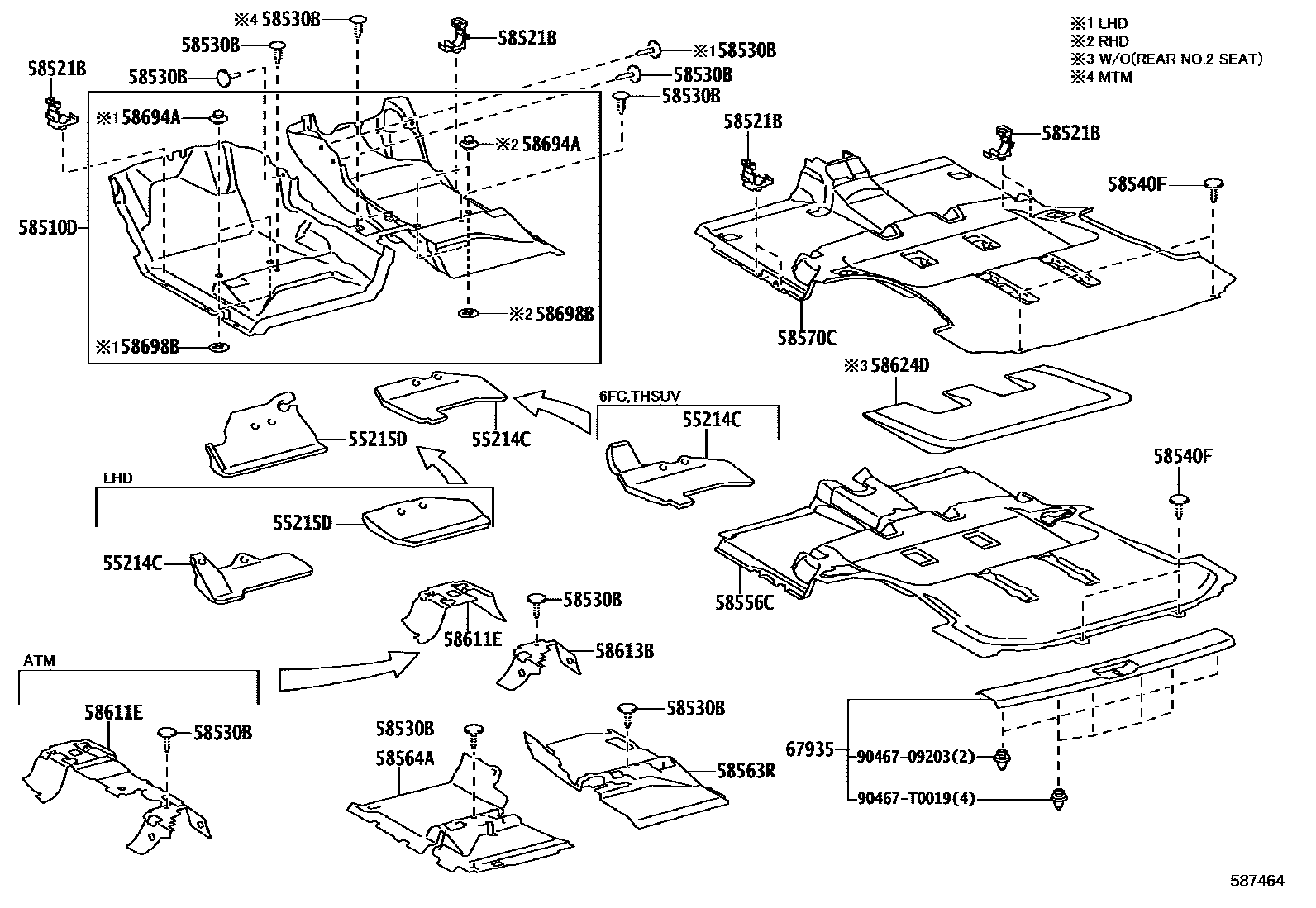

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
main55214-KK010iGGN155,GUN15#,16#,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)202006-202204
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,4#; BLACK,TRIM4#
main58500-0K610-C0iGUN155,165,TGN156,166..IDNSU..L..GCC; GUN156,166..PH; GUN156..IDNSU..(GCC,VN);GUN165..LHD..IDNSU..6FC..(GEN,PH,VN);GGN155,GUN155,TGN156,166..LHD..IDNSU..(H,S); GUN156..LHD..IDNSU..GEN202007-202108
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
main58510-0KY70-C1iGGN155,GUN156,TGN166..THSUV..GCC;GUN155,TGN156..THSUV..(H,S)..GCC; GUN155,165,TGN156..THSUV..L; GUN156..THSUV..GEN202006-202108
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
58540FCLIP(FOR REAR FLOOR CARPET)
main90467-T0031-C0×4iTGN166..THSUV;GUN166..6F..IND;TGN166..GEN,IND,VN;GUN156..RHD..(ARL,GEN);GUN156..(IDNSU,THSUV)..(GCC,VN);GUN165,TGN156..(L,S)..(GEN,PH,TH,VN);GGN155,GUN155,TGN156..(H,S)..(EPT,GCC,GEN,VN)202006-202204
BLACK,TRIM2#,4#
58556CSILENCER, REAR FLOOR
REAR NO.2 SEAT-WITHOUT
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
main58570-0K600-C0iGUN15#,16#..THSUV..H..(GEN,TH); GUN155,165,TGN156..THSUV..L; GUN165..S..TH;GUN155,TGN156..THSUV..(H,S)..GCC;GGN155,GUN156,TGN166..THSUV..(ARL,GCC)202006-202108
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main58570-0K700-C1iGUN155,165,TGN156,166..IDNSU..(6F,6FC)..L..(GCC,GEN); GUN156,166..PH; GUN156..LHD..IDNSU..GEN202007-202108
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,3#
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#
58611ESHEET, FRONT FLOOR SILENCER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
58624DPAD, CENTER FLOOR SILENCER
REAR NO.2 SEAT-WITHOUT
58694APLATE, MAT SET, UPPER
(L)
main58694-76010×2iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204
58698BPLATE, MAT SET, LOWER
(L)
67935PLATE, BACK DOOR SCUFF
BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM4#
BLACK,TRIM2#,3#
9046709203
main90467-09203
90467T0019
main90467-T0019
18 parts on this diagram · 1 diagram in section
