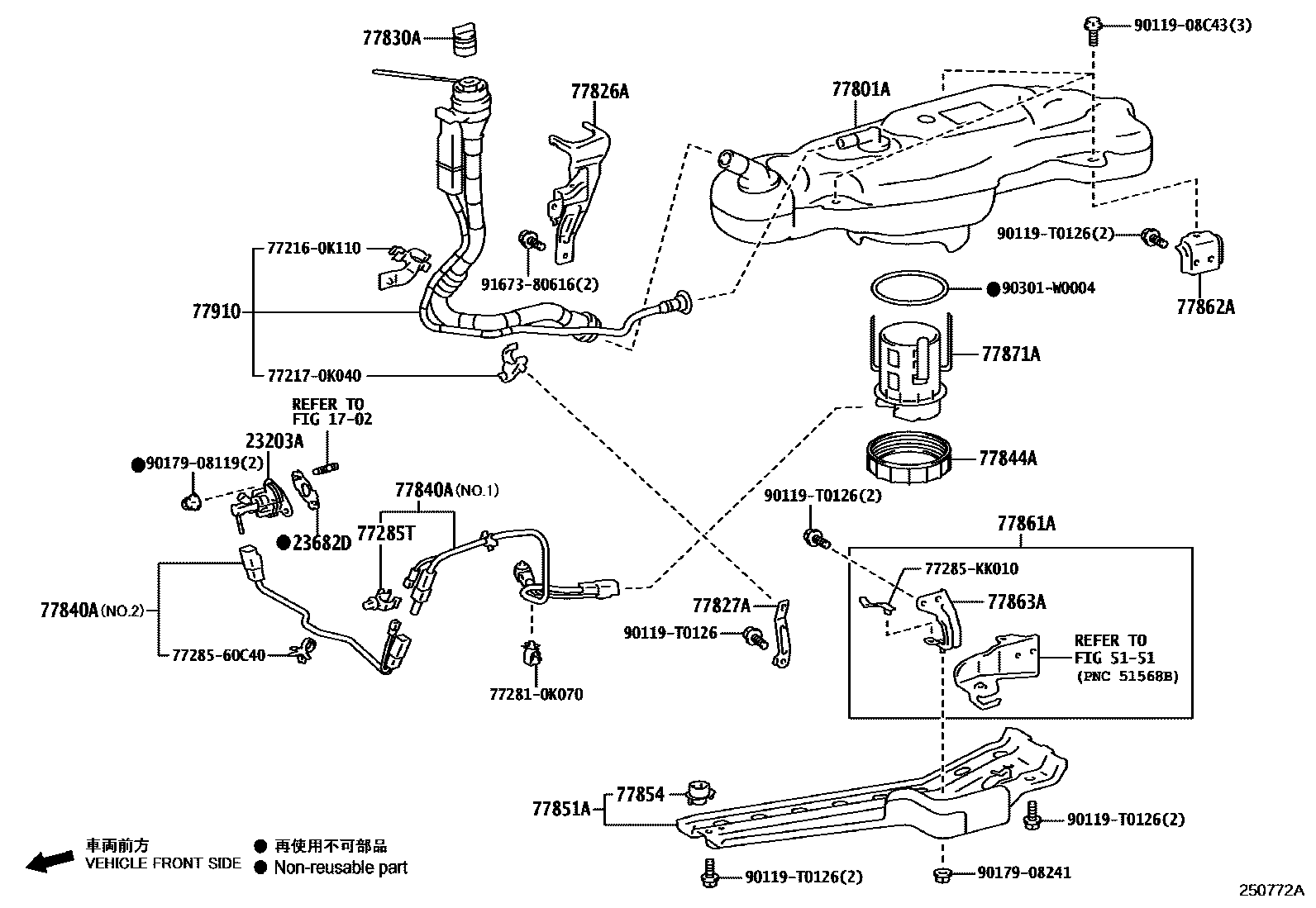

UREA TANK & TUBE
1702EXHAUST PIPE
23203AINJECTOR SET, UREA
23682DGASKET, NOZZLE HOLDER
5151FRAME
77285TCLAMP, UREA TUBE, NO.1
77801ATANK SUB-ASSY, UREA
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
77830ACAP ASSY, UREA TANK
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
77840ATUBE ASSY, UREA W/HEATER
NO.2
NO.1
77844ARETAINER, UREA PUMP GAGE
77851APROTECTOR, UREA TANK
77854BRACKET, UREA TANK PROTECTOR, FRONT NO.1
77861ABRACKET, UREA TANK, NO.1
77862ABRACKET, UREA TANK, NO.2
77863ABRACKET, UREA TANK, NO.3
77871APUMP, UREA
77910PIPE ASSY, UREA TANK FILLER
772160K110COVER, FUEL PIPE
main77216-0K110
772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K040
772810K070BRACKET, FUEL MAIN TUBE, NO.1
main77281-0K070
7728560C40BRACKET, FUEL TUBE
main77285-60C40
77285KK010BRACKET, FUEL TUBE
main77285-KK010
9011908C43
main90119-08C43
90119T0126
main90119-T0126
9017908119
main90179-08119
9017908241
main90179-08241
90301W0004
main90301-W0004
9167380616
main91673-80616
29 parts on this diagram · 1 diagram in section
