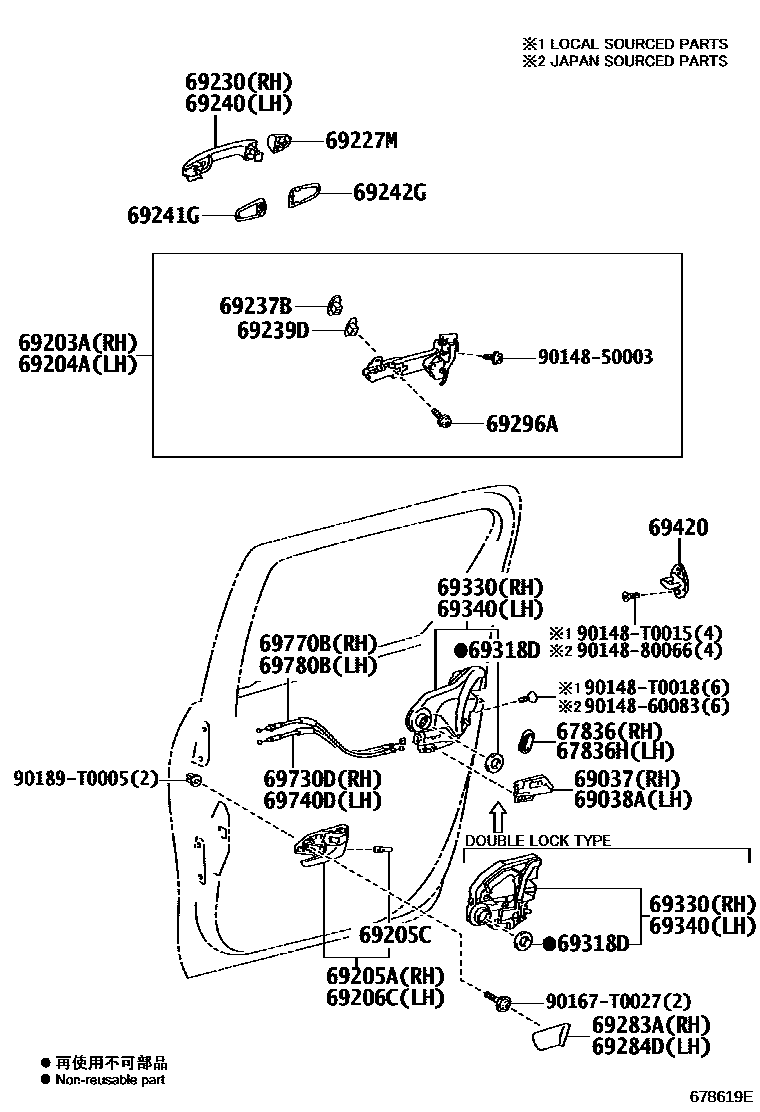

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
main67836-02030iGUN156..THSUV..(L,S);KUN156,165..IDNSU,SASUV;TGN166..(IDNSU,THSUV)..L;GUN156..IDNSU,PKNSU,VNSUV;GGN155,165,GUN155,165..IDNSU..H;TGN166..(IDNSU,PKNSU,SASUV,THSUV,VNS201507-202104
main67836-02030iGUN165..TH;GUN165..THSUV..H;GGN155,165,GUN15#,166,TGN166..(EPTSU,THSUV)..(H,M)201710-202101
EXCEPT PLANT TSAM
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PLANT TSAM
PLANT TSAM
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PLANT TSAM
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
main67836-02030iGUN156..THSUV..(L,S);KUN156,165..IDNSU,SASUV;TGN166..(IDNSU,THSUV)..L;GUN156..IDNSU,PKNSU,VNSUV;GGN155,165,GUN155,165..IDNSU..H;TGN166..(IDNSU,PKNSU,SASUV,THSUV,VNS201507-202104
main67836-02030iGUN165..TH;GUN165..THSUV..H;GGN155,165,GUN15#,166,TGN166..(EPTSU,THSUV)..(H,M)201710-202101
EXCEPT PLANT TSAM
PLANT TSAM
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PLANT TSAM
EXPORT FROM SOUTH AFRICA&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PLANT TSAM
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
main69203-0K110iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
main69204-0K110iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
main69205-0K150-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
main69206-0K140-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM0#,3#,4#
main69206-0K140-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM3#,4#
main69206-0K140-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
main69227-0K140iTGN156,166..IDNSU..M..LA;TGN156,166..IDNSU..5F..GCC;GUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GUN155,165..IDNSU..(H,L,M)..(GCC,GEN,IDN,PH);GGN155,165,GUN156,KUN156..(I201601-202008
*CR
*CR
*CR
*CR,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
*CR
LESS COLOR
LESS COLOR
main69227-0K907iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
LESS COLOR
main69227-0K908iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-0K130iTGN156,166..IDNSU..M..LA;TGN156,166..IDNSU..5F..GCC;GUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GUN155,165..IDNSU..(H,L,M)..(GCC,GEN,IDN,PH);GGN155,165,GUN156,KUN156..(I201601-202008
PLATED
PLATED
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
PAINT REQ.
main69210-0K903iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
PAINT REQ.
main69210-0K904iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
PAINT REQ.
69237BNUT, REAR DOOR HANDLE
main69237-0E010iTGN156..H;TGN166..THSUV..5F;TGN166..IDNSU..GCC;GUN165..(IDNSU,SASUV)..6FC..L;GUN156..IDNSU,INDSU,SASUV,VNSUV;TGN156..(IDNSU,PKNSU,SASUV)..6FC;GUN156,TGN156..MTM..(A201507-202012
main69237-0K040iGUN165,TGN168..S..(BZAGT,TH);GUN156,TGN156,166..AGTSU..(H,M);GUN165..(MASUV,THSUV,VNSUV)..(L,M);GGN155,GUN155,166..AGTSU,MASUV,THSUV;GUN156,TGN156,166..MASUV,PKNSU,201907-202104
main69237-0K070iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
69239DBUSH, REAR DOOR HANDLE
main69239-0K070iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
main69239-0K080iGUN165..VNSUV..L;GUN156,TGN156,166..AGTSU..(H,M);GUN156,165,TGN156,166..MASUV,PKNSU,SASUV,THSUV;GUN156,KUN156,TGN168..(AGTSU,SASUV)..(M,S)..(DCR,HTWCF,IART);GGN155,201507-202104
main69239-0K090iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69210-0K130iTGN156,166..IDNSU..M..LA;TGN156,166..IDNSU..5F..GCC;GUN155,165..(IDNSU,VNSUV)..S..(GCC,VN);GUN155,165..IDNSU..(H,L,M)..(GCC,GEN,IDN,PH);GGN155,165,GUN156,KUN156..(I201601-202008
PLATED
PLATED
main69210-0K200iGUN156..(AGTSU,THSUV)..H;TGN156,166..AGTSU..(H,M);GGN155,165,GUN155,166..AGTSU,MASUV,THSUV;GUN156..(AGTSU,PKNSU,THSUV)..M..(ARL,LA,PKN,TH);GUN156,KUN156,TGN168..AGT201507-202104
PLATED
PLATED
PLATED
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
PAINT REQ.
PAINT REQ.
main69210-0K903iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
PAINT REQ.
main69210-0K904iGUN165,TGN156..IDNSU..L..(GEN,LA,VN);GUN15#,165,KUN156,TGN166..IDNSU..(L,S)..(GEN,IDN,LA,PH)201601-202007
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-0K070iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69242-0K060iGUN165..IDNSU..L;GUN165..(IDNSU,VNSUV)..(H,M,S);GGN155,165,GUN15#,KUN156,TGN156,166..IDNSU,VNSUV201601-202008
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-0K020-C0iTGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV;TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
main69283-0K070-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM3#,4#
main69283-0K070-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
main69283-0K070-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,165,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010
BLACK,TRIM0#,3#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
main69284-0K050-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM3#,4#
main69284-0K050-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
main69284-0K050-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,165,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010
BLACK,TRIM0#,3#,4#
69296ASCREW, DOOR INSIDE HANDLE
main69296-30010iGUN156,TGN168..L..BZAGT;GGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..(AGTSU,SASUV)..(L,S)..(DCR,DEFI,HDCR,HTWC)201512-202010
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
main69050-0K020iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155,165..IDNSU..H..GCC;GGN155,165,GUN156,KUN156..(IDNSU,VNSUV)..(H,M);GUN155,TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,PH,201601-202008
main69050-0K090iGUN156..L..BZAGT;GGN155,TGN168..AGTSU;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010
main69050-0K110iGUN15#,TGN156..(EPTSU,PKNSU,THSUV)..(L,S);GGN155,165,GUN165,KUN165,TGN166..LHD..(EPTSU,SASUV,THSUV)..(L,S)201507-202101
main69050-0K150iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA)201601-202007
69340LOCK ASSY, REAR DOOR, LH
main69060-0K070iGUN165..PH,VN;GUN165..RHD..IDNSU;GUN155,165..IDNSU..H..GCC;GGN155,165,GUN156,KUN156..(IDNSU,VNSUV)..(H,M);GUN155,TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,PH,201601-202008
main69060-0K100iGUN156..L..BZAGT;GGN155,TGN168..AGTSU;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010
main69060-0K120iGUN15#,TGN156..(EPTSU,PKNSU,THSUV)..(L,S);GGN155,165,GUN165,KUN165,TGN166..LHD..(EPTSU,SASUV,THSUV)..(L,S)201507-202101
main69060-0K160iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA)201601-202007
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-0K200iGUN155,LAN155..S..SA;GUN156..LHD..(SASUV,THSUV);GUN156..RHD..(PKNSU,THSUV);KUN156,165,TGN156..PKNSU,SASUV,THSUV;GGN155,165,GUN155,16#,TGN166..PKNSU,THSUV201507-202104
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-0K180iGUN155,LAN155..S..SA;GUN156..LHD..(SASUV,THSUV);GUN156..RHD..(PKNSU,THSUV);KUN156,165,TGN156..PKNSU,SASUV,THSUV;GGN155,165,GUN155,16#,TGN166..PKNSU,THSUV201507-202104
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
34 parts on this diagram · 1 diagram in section
