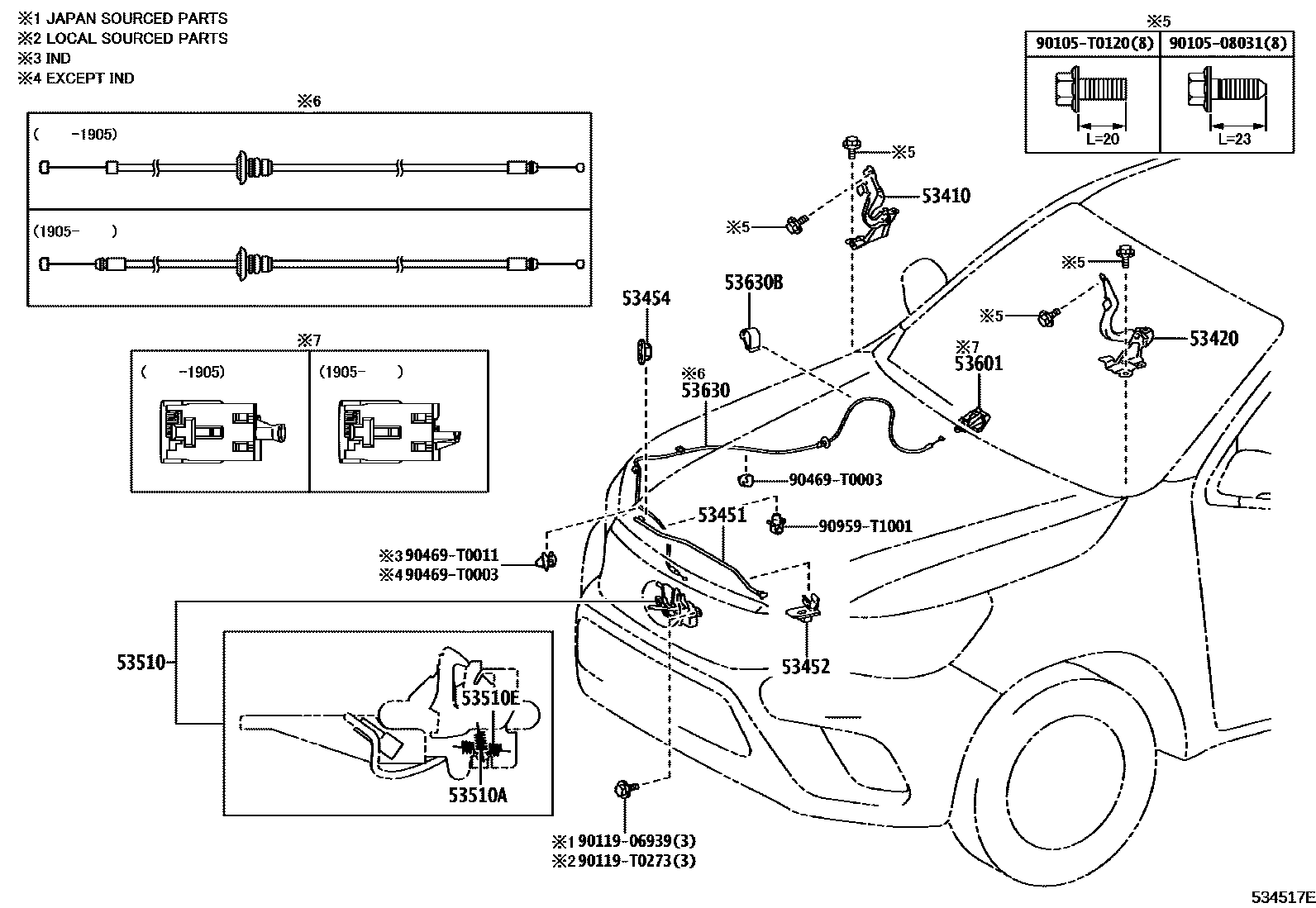

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510LOCK ASSY, HOOD
main53510-0K660supersedes 53510-0K650iGUN156..RHD..(PKNSU,THSUV)..M;GUN155,16#,TGN156,166..MA,PKN,TH201507-202104
main53510-0K740supersedes 53510-0K730iGUN156,165,KUN156,TGN156,166..AGTSU..L..LA; GUN156..L..BZAGT;GGN155,TGN168..AGTSU;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
main53510-0K750supersedes 53510-0K760iGUN155,165,TGN166..IDN;KUN156,TGN156,166..RHD..(H,S)..GEN; KUN156,TGN156,166..RHD..M..GEN201601-201606
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K751supersedes 53510-0K761iGUN156,KUN156,TGN156,166..RHD..M..GEN; TGN166..IDN;GUN155,165..RHD..IDNSU;KUN156,TGN156,166..RHD..(H,S)..GEN201607-202007
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K771iGUN15#,165,KUN156..LHD..IDNSU..GEN;GUN156,KUN156,TGN156,166..IDNSU..L..(GEN,LA)201607-202007
main53510-0K780supersedes 53510-0K770iGUN156,KUN156..IDNSU..M..(LA,PH);GGN155,GUN165,TGN156,166..LHD..(6F,6FC)..(GEN,PH,VN); KUN156..LHD..GEN;GUN156,KUN156,TGN156,166..IDNSU..L..(GEN,LA); KUN156..LHD..M..GEN201601-201606
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
main53510-0K781iGUN165..PH,VN;GUN156,KUN156..(IDNSU,VNSUV)..M..(LA,PH,VN);GGN155,TGN156,166..LHD..(IDNSU,VNSUV)..(M,S)..(GEN,LA,PH,VN)201607-202008
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0K190iLAN155..S;GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GUN156..LHD..(AGTSU,SASUV,THSUV)..(L,M,S);GGN155,165,GUN155,165,KUN156,165,TGN156,16#..LHD..(AGTSU,EPTSU,SASUV,THSUV)201512-201905
main53630-0K200iTGN166..PH,VN;TGN156,166..LHD..IDNSU..(L,M);GGN155,165,GUN15#,165,KUN156..LHD..IDNSU201601-201905
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9010508031
main90105-08031
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90469T0011
main90469-T0011
90959T1001
main90959-T1001
18 parts on this diagram · 2 diagrams in section
