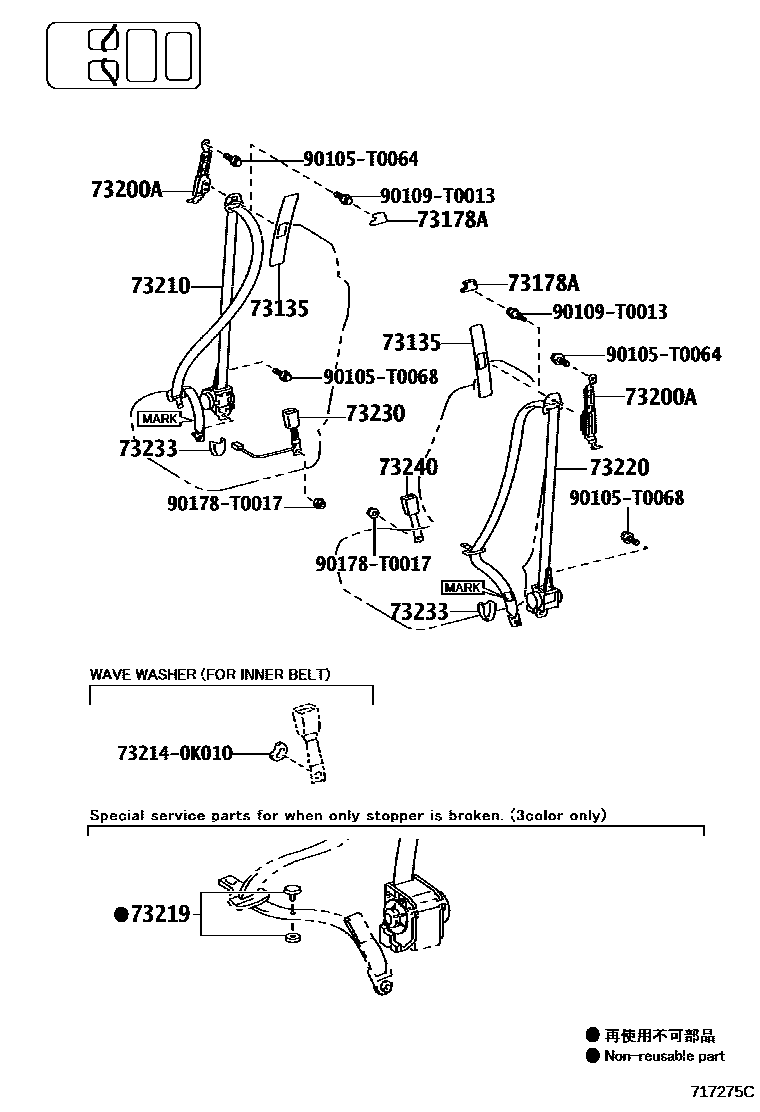

SEAT BELT
73135COVER, SHOULDER BELT ANCHORAGE PLATE
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#
main73135-0K010-B0iGGN50,KUN60..IDSUV..(GCC,GEN,IDN,PHL);GGN50,60,KUN50,61,LAN50..CO,IDN,LA,MA,SA;KUN51,60,TGN51,61..SUVW..(CO,KZS,LA,MA,SA,VN);KUN51,TGN51,61..(IDSUV,SASUV)..(GEN,IDN201203-201611
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33020-B3iGGN50..GCC,SA;GGN50..5FC..CO;KUN51..SR..IART;GGN50,KUN51..IDSUV..LA;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL);GGN60,KUN5#,6#,LAN50,TGN51..(IDSUV,SUVW)..(GEN,IDN,KZS,MA,PHL201308-201703
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02090-B0iKUN51..SASUV;GGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW..(CO,KZS,LA,MA,SA,VN)201203-201611
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM4#
IVORY,TRIM4#,MARK=DA
IVORY,TRIM4#
BLACK,TRIM2#
IVORY,TRIM4#
BLACK,TRIM2#
main73210-0K131-A1iGGN50..5F..CO;GGN50,TGN61..SUVW..(5F,5FC)..(ANCOM,LA);KUN51,TGN61..(4FC,5FC)..DLX..(HTWCF,IART);GGN60,KUN51,TGN51,61..SUVW..SR..(DCR,HTWC)..(ANCOM,CO,LA)201110
IVORY,TRIM4#
main73210-0K131-C0iTGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..SR..(CO,LA)201310-201510
BLACK,TRIM2#
IVORY,TRIM4#
IVORY,TRIM4#,MARK=AD
main73210-0K481-A0iKUN61..SA;KUN51..SR..IART;KUN61..(5F,5FC)..IND;TGN61..4FC..HTWC..LA;GGN50..5FC..(CO,EPT,SA);GGN50,TGN51,61..IDSUV..GCC;GGN60,KUN51,60,LAN50,TGN51..EPT,IND,SA201107-201407
IVORY,TRIM4#
main73210-0K481-A0iKUN61..SA;KUN51..SR..IART;KUN61..(5F,5FC)..IND;TGN61..4FC..HTWC..LA;GGN50..5FC..(CO,EPT,SA);GGN50,TGN51,61..IDSUV..GCC;GGN60,KUN51,60,LAN50,TGN51..EPT,IND,SA201107-201308
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
BLACK,TRIM2#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
ASEAN GENERAL SPEC,BLACK,TRIM2#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
IVORY,TRIM4#
BLACK,TRIM1#
IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
ASEAN GENERAL SPEC,BLACK,TRIM2#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
main73219-33030iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201703
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM4#,MARK=DB
IVORY,TRIM4#
IVORY,TRIM4#
BLACK,TRIM2#
IVORY,TRIM4#
BLACK,TRIM2#
main73220-0K131-A1iGGN50..5F..CO;GGN50,TGN61..SUVW..(5F,5FC)..(ANCOM,LA);KUN51,TGN61..(4FC,5FC)..DLX..(HTWCF,IART);GGN60,KUN51,TGN51,61..SUVW..SR..(DCR,HTWC)..(ANCOM,CO,LA)201110
IVORY,TRIM4#
main73220-0K131-C0iTGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..SR..(CO,LA)201310-201510
BLACK,TRIM2#
IVORY,TRIM4#
BLACK,TRIM1#
IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
IVORY,TRIM4#,MARK=AF
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
IVORY,TRIM4#
main73220-0K271-A0iKUN61..SA;KUN51..SR..IART;KUN61..(5F,5FC)..IND;TGN61..4FC..HTWC..LA;GGN50..5FC..(CO,EPT,SA);GGN50,TGN51,61..IDSUV..GCC;GGN60,KUN51,60,LAN50,TGN51..EPT,IND,SA201107-201308
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
ASEAN GENERAL SPEC,BLACK,TRIM2#
IVORY,TRIM4#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,IVORY,TRIM4#
BRUNEI SPEC,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),IVORY,TRIM4#
ASEAN GENERAL SPEC,IVORY,TRIM4#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM,BLACK,TRIM2#
BRUNEI SPEC,BLACK,TRIM2#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SINGAPORE SPEC&ANTI-THEFT SYSTEM-*IM&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#
ASEAN GENERAL SPEC,BLACK,TRIM2#
ASEAN GENERAL SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0K020-C0iKUN51..RHD..IDSUV;KUN60..RHD..(GEN,IDN,SA);KUN50,LAN50,TGN61..RHD..(IDN,MA,SA)201308-201601
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
main73230-0K611-C0iTGN61..GEN,TH;KUN51..RHD..SUVW;GGN50,60,KUN60..SR..(IND,SA);KUN61,TGN51..RHD..(GEN,IDN,IND,MA,SA,TH)201308-201608
BLACK,TRIM2#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
main73230-0K740-C0iTGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..SR..(CO,LA)201310-201510
BLACK,TRIM2#
main73230-0K740-E0iKUN51..SUVW..DCR..(CO,LA);GGN50,TGN51,61..(4FC,5F)..CO;GGN50,TGN61..SUVW..(5F,5FC)..LA;KUN51,TGN61..(4FC,5FC)..DLX..(HTWCF,IART)201210-201510
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
DK.GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#
BLACK,TRIM2#
main73233-60010-E2iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201703
SAND BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
main73230-0K030-C0iKUN60..RHD..(GEN,IDN,IND,SA);GGN50,60,KUN5#,61,LAN50,TGN51,61..RHD..(IDSUV,SUVW)..(GEN,IDN,IND,MA,SA,TH)201308-201608
BLACK,TRIM2#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
main73230-0K730-C0iTGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..SR..(CO,LA)201310-201510
BLACK,TRIM2#
main73230-0K730-E0iKUN51..SUVW..DCR..(CO,LA);GGN50,TGN51,61..(4FC,5F)..CO;GGN50,TGN61..SUVW..(5F,5FC)..LA;KUN51,TGN61..(4FC,5FC)..DLX..(HTWCF,IART)201210-201510
SAND BEIGE,TRIM4#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
90105T0064
main90105-T0064
90105T0068
main90105-T0068
90109T0013
main90109-T0013
90178T0017
main90178-T0017
14 parts on this diagram · 3 diagrams in section
