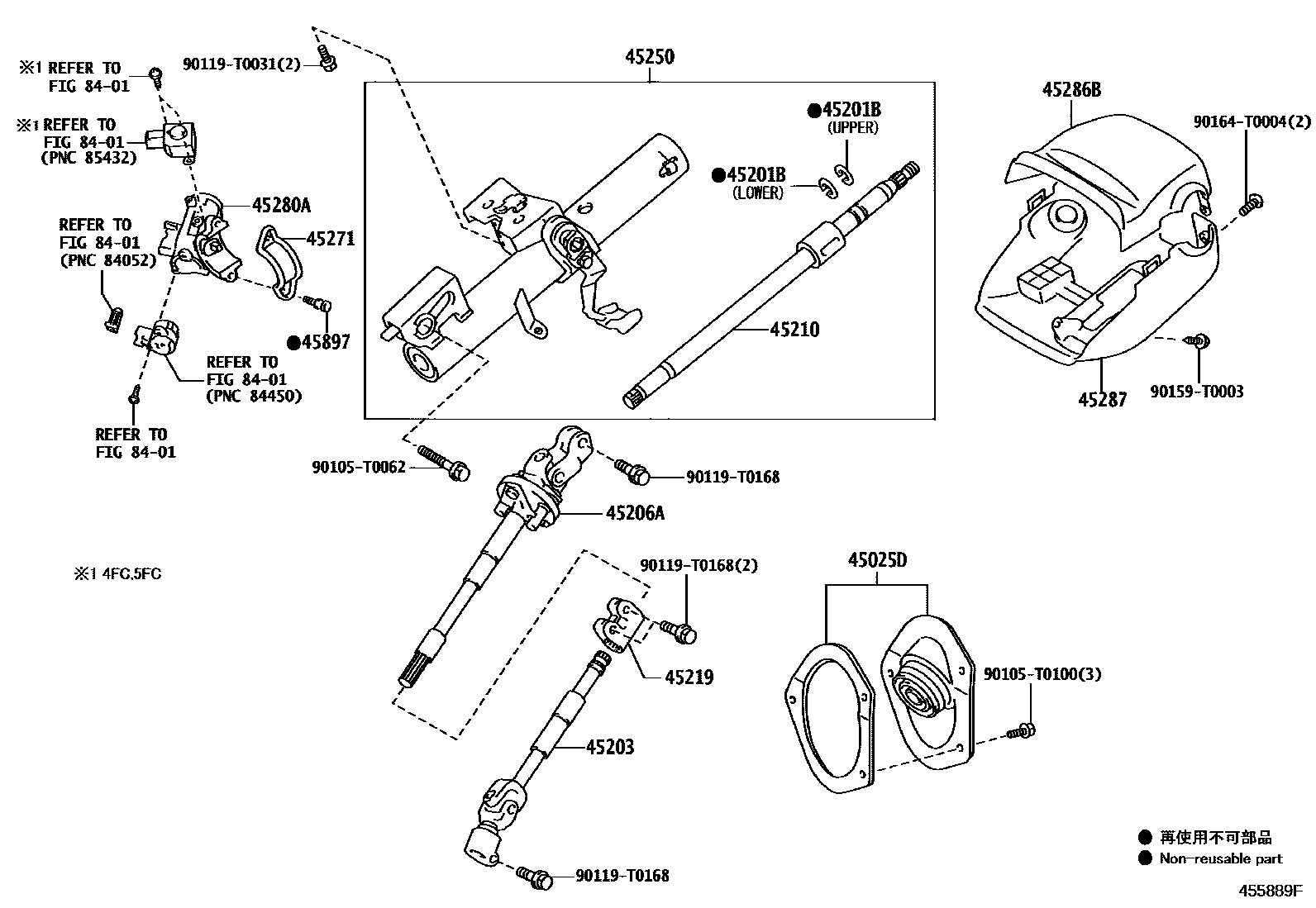

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0K030iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH)201107-201609

main45025-0K040iGGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA)201107

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iKUN51,61..(5F,5FC)..IND201107-201406

T=1.20,LOWER

main90520-17269iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

T=1.20,UPPER

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K100iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH)201107-201609

main45203-0K110iKUN60,TGN51,61..VN201107-201611

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K040iGGN50,TGN51..EPT201107-201612

main45206-0K110iKUN51,6#..IND201406-201608

45210SHAFT ASSY, STEERING MAIN

main45210-0K010iKUN51,61..(5F,5FC)..IND201107-201406

main45210-0K020iKUN51,6#..IND201406-201608

45219YOKE, STEERING SLIDING

main45219-0K090iKUN60,TGN51,61..VN201107-201611

main45219-0K100iKUN51,6#..IND201406-201608

45250COLUMN ASSY, STEERING

main45250-0K010iKUN51,61..5F..IND201107-201406

main45250-0K020iKUN51,6#..IND201406-201608

45271CLAMP, STEERING COLUMN, UPPER

main45271-0K010iTGN51..KZS201107-201703

main45271-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201212-201510

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0K020iKUN51,6#..5F..IND201107-201608

main45280-0K030iTGN51..PKN201107-201609

main45280-0K100iGGN50,KUN51,60,TGN51,61..IDSUV..5F201212-201510

main45280-0K110iGGN50,KUN5#,60,TGN51,61..IDSUV..(4FC,5FC)201212-201510

45286BCOVER, STEERING COLUMN, UPR

main45286-0K010-B0iKUN60,TGN61..TH;KUN51,61..5FC..TH201107-201308

DK.GRAY,TRIM1#

main45286-0K010-C0iGGN50,TGN51..EPT201309-201612

BLACK,TRIM4#

main45286-0K010-E1iKUN51,61..5FC..TH;GGN50,KUN60,TGN51,61..EPT,TH201107-201308

ASH BROWN,TRIM4#

main45286-0K020-C0iGGN50..GCC; TGN51,61..GCC201308-201510

BLACK,TRIM2#,40; BLACK,TRIM40

main45286-0K020-E1iTGN51..5F..SA;LAN50,TGN51..RHD..(PKN,SA)201107-201311

ASH BROWN,TRIM4#

main45286-0K030-C0iKUN51,61..IND201401-201501

BLACK,TRIM2#,40

main45286-0K030-E1iKUN51,61..IND201401-201501

ASH BROWN,TRIM40

45287COVER, STEERING COLUMN, LWR

main45287-0K010-B0iKUN60,TGN61..TH;KUN51,61..5FC..TH201107-201308

DK.GRAY,TRIM1#

main45287-0K010-C0iGGN50,TGN51..EPT; KUN50,TGN51..MA201308-201309

BLACK,TRIM2#; BLACK,TRIM40

main45287-0K010-E1iKUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH);GGN50,KUN50,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL)201107-201309

ASH BROWN,TRIM4#

main45287-0K020-C0iKUN51..RHD..SA;KUN51..LHD..5F..SA;KUN51..SUVW..5FC..LA;KUN51..(SASUV,SUVW)..(4FC,5F)..(CO,GEN,LA);GGN50,60,KUN6#,LAN50,TGN51,61..SUVW..(CO,LA,SA)201310-201512

BLACK,TRIM2#,4#

main45287-0K020-E1iKUN60,TGN51,61..VN;GGN50,KUN51,60,TGN51,61..IDSUV201107-201308

ASH BROWN,TRIM4#

main45287-0K030-C0iKUN51,6#..IND201501-201608

BLACK,TRIM2#,4#

main45287-0K030-E1iKUN51,61..IND201201-201401

ASH BROWN,TRIM4#

main45287-0K040-C0iKUN51,6#,TGN61..TH201308-201504

BLACK,TRIM2#,4#

main45287-0K090-C0iKUN5#,60,TGN51,61..IDN,PHL201308-201611

BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-0K010×2iGGN50,TGN51..EPT201107-201612

main45897-0K020×2iGGN50,KUN5#,60,TGN51,61..IDSUV201212-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0062

main90105-T0062

90105T0100

main90105-T0100

90119T0031

main90119-T0031

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

19 parts on this diagram · 1 diagram in section
