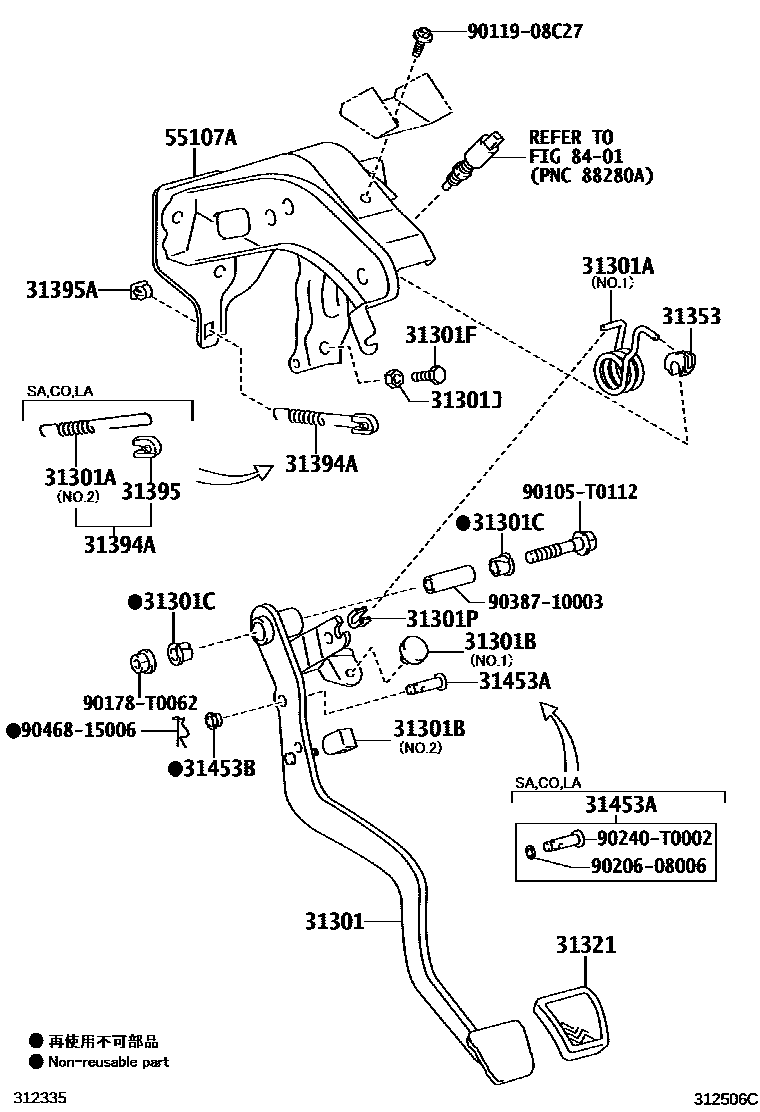

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K030iTGN51,61..5F..(GCC,KZS)201107-201703

main31301-0K040iGGN50..5F..(GEN,LA)201107-201510

main31301-0K050iLAN50..RHD201108-201310

main31301-0K070iLAN50,TGN51..LHD..5F..SA201108-201512

main31301-0K090iTGN51,61..5F..(CO,LA)201110-201510

main31301-0K100iGGN50..5F..CO201111-201510

main31301-0K160iKUN51,6#..RHD..5F..(GEN,IDN,IND,TH)201107-201608

main31301-0K180iKUN51..LHD..(IDSUV,THSUV)..5F;GGN50,KUN60..LHD..(IDSUV,SUVW)..5F..(GCC,GEN,PHL,VN)201107-201611

main31301-0K200iKUN51,6#..RHD..5F..SA201108-201512

main31301-0K220iKUN51..LHD..(SASUV,SUVW)..5F..(GEN,SA)201108-201512

main31301-0K230iKUN51..SUVW..5F..(CO,LA)201110-201510

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iLAN50,TGN51,61..5F201107-201703

main90905-06079iKUN51..SASUV..5F;GGN50,KUN51,6#..SUVW..5F..(CO,LA,SA)201108-201512

NO.2

main90949-T3001iKUN51..SASUV..5F;GGN50,KUN51,6#..SUVW..5F..(CO,LA,SA)201108-201512

NO.1

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKUN51,6#..5F;GGN50..5F..GCC201107

NO.1

main90541-T0004iKUN51,6#..RHD..5F201107-201608

NO.2

main90541-T0005iGGN50..5F..(CO,GEN,LA); LAN50,TGN51,61..LHD..5F201107

NO.2

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iGGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)201107-201703

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLAN50..LHD;KUN51,6#..5F..SA;KUN51..SASUV..5F201107-201505

main90101-T0005iKUN51,6#,LAN50..(SASUV,SUVW)..5F..(GEN,SA)201505-201512

(L)

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0011iKUN51,6#..5F..IND201107-201608

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iKUN51,6#..5F..IND201107-201608

31321PAD, CLUTCH PEDAL

main31321-02010iGGN50,KUN51,TGN51,61..SUVW..5F..(CO,LA)201110-201510

main31321-52010iKUN51,6#..5F..IND201107-201608

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iKUN51,6#..5F..IND201107-201608

31394ASPRING, PEDAL W/HOOK

main31394-25010iKUN51,6#..5F..IND201107-201608

31395HOOK, PEDAL SPRING

main31395-33010iKUN51..SASUV..5F;GGN50,KUN51,6#..SUVW..5F..(CO,LA,SA)201108-201512

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iKUN51,6#..5F..IND201107-201608

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-0K011iKUN51,6#..5F..IND201107-201608

L=29.4

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)201107-201703

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0K011iGGN50..5F..CO201111-201510

main55107-0K021iLAN50,TGN51,61..5F201107-201703

main55107-0K031iGGN50..5F..(GEN,LA)201107-201510

main55107-0K060iKUN51,6#..5F..IND201107-201608

main55107-0K070iKUN51..SASUV..5F;KUN51,6#..SUVW..5F..(CO,LA,SA)201108-201512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9020608006

main90206-08006

90240T0002

main90240-T0002

9038710003

main90387-10003

9046815006

main90468-15006

23 parts on this diagram · 10 diagrams in section
