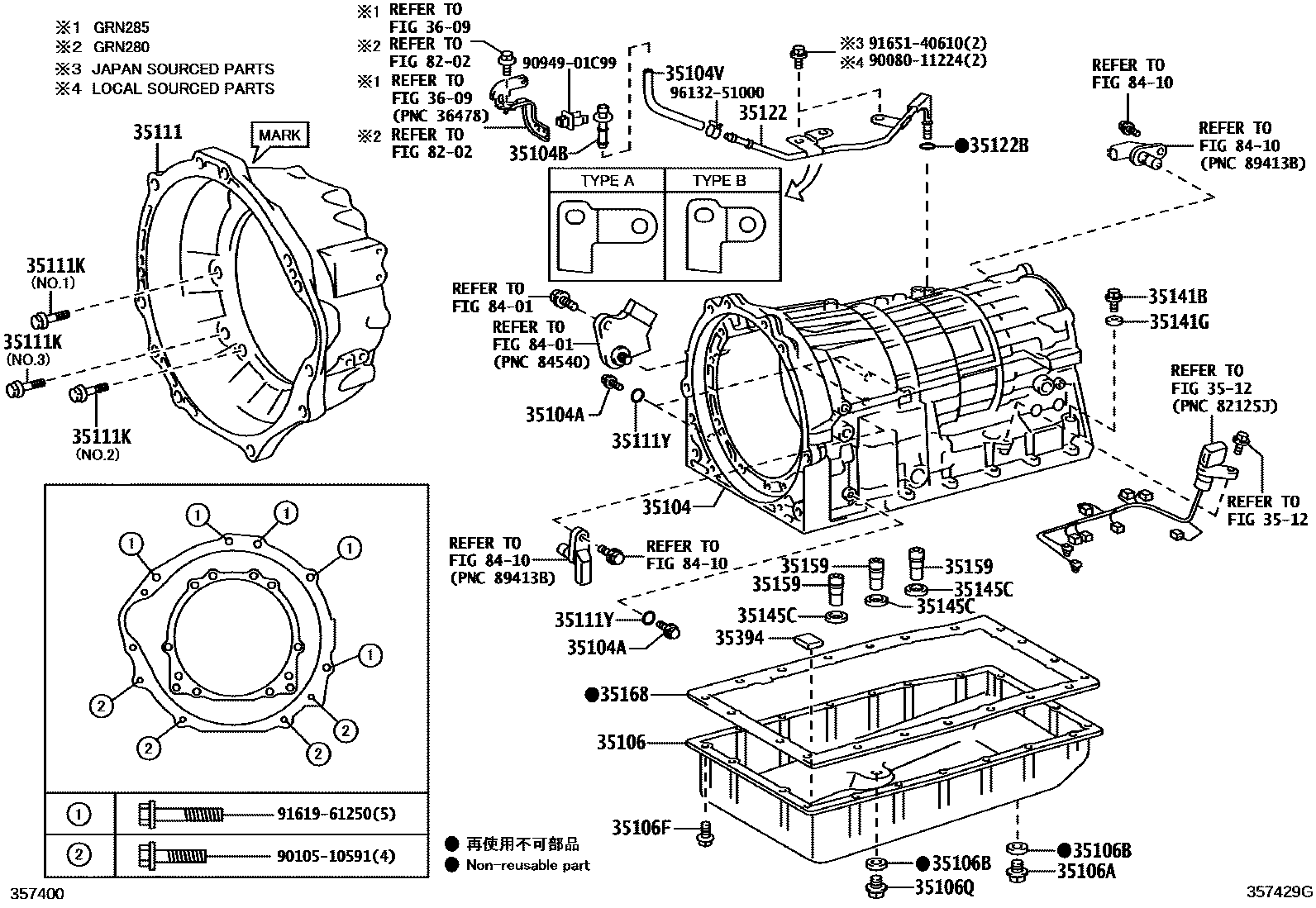

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C010iGRN285201205-201308

(L)

main35104-35040iGRN285201511-201604

TYPE B:REFER 35-01

main35104-60221iGRN285201308-201511

(J)

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRN28#201908

main90341-A0001×5iGRN285201308-201511

(L)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03188iGRN28#200908-201105

main90930-03211iGRN28#201105-201308

35104VHOSE (FOR BREATHER PLUG)

main35121-35020iGRN28#200908-201308

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C010iGRN285201205-201308

(L)

main35106-60180iGRN280; GRN285200908-201308

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRN28#201908

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRN285201308-201511

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRN285201307-201308

(J)

main90119-A0298×20iGRN285201308-201511

(L)

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRN28#201908

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-04010iGRN285201308-201511

MARK UB

main35111-60150iGRN280201308-201908

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRN28#200908-201308

*10-1.5PX35-30,NO.1

main90119-10947×2iGRN280; GRN285201403-201908

*10-1.50PX35-29.3,(J),NO.2; *10-1.50PX35-29.3,NO.2

main90119-12378×2iGRN280; GRN285201403-201908

*12-1.75PX38-30,(J),NO.3; *12-1.75PX38-30,NO.3

main90119-A0272×6iGRN285201205-201308

*10-1.5PX35-29.3,NO.1

main90119-A0404×2iGRN285201403-201511

*10-1.5PX35-29.3,(L),NO.2

main90119-A0405×2iGRN285201403-201511

*12-1.75PX38-30,(L),NO.3

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRN28#200908-201308

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-34010iGRN285201205-201308

TYPE A:REFER ILLUST.

main35122-60020iGRN285201205-201308

TYPE B:REFER ILLUST.

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iGRN28#200908-201308

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRN28#201908

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRN28#200908-201308

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRN28#200908-201308

35159GASKET, BRAKE DRUM

main35159-0C010×3iGRN285201308-201511

(L)

main35159-60010×3iGRN280; GRN285200908-201308

(J)

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60010iGRN28#200908-201308

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGRN28#201308-201908

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008011224

main90080-11224

9010510591

main90105-10591

9094901C99

main90949-01C99

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

31 parts on this diagram · 1 diagram in section
