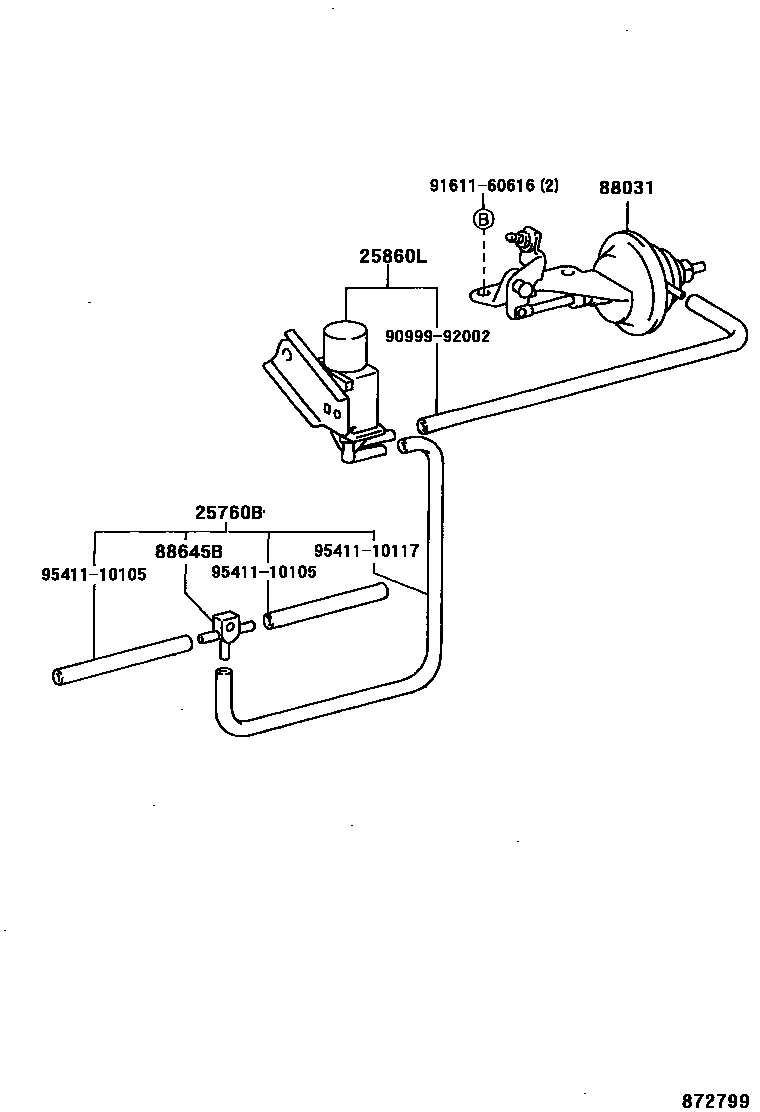

HEATING & AIR CONDITIONING - VACUUM PIPING

25760BHOSE ASSY, VACUUM TRANSMITTING

main25760-67020i1KZT..KZN185199511-200008

25860LVALVE ASSY, VACUUM SWITCHING

main25860-67010i1KZT..KZN185199511-200008

88031ACTUATOR SET, IDLE-UP

main88031-35110iKZN185199511-200008

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iKZN185199511-200008

9099992002

main90999-92002

9161160616

main91611-60616

9541110105

main95411-10105

9541110117

main95411-10117

8 parts on this diagram · 1 diagram in section
