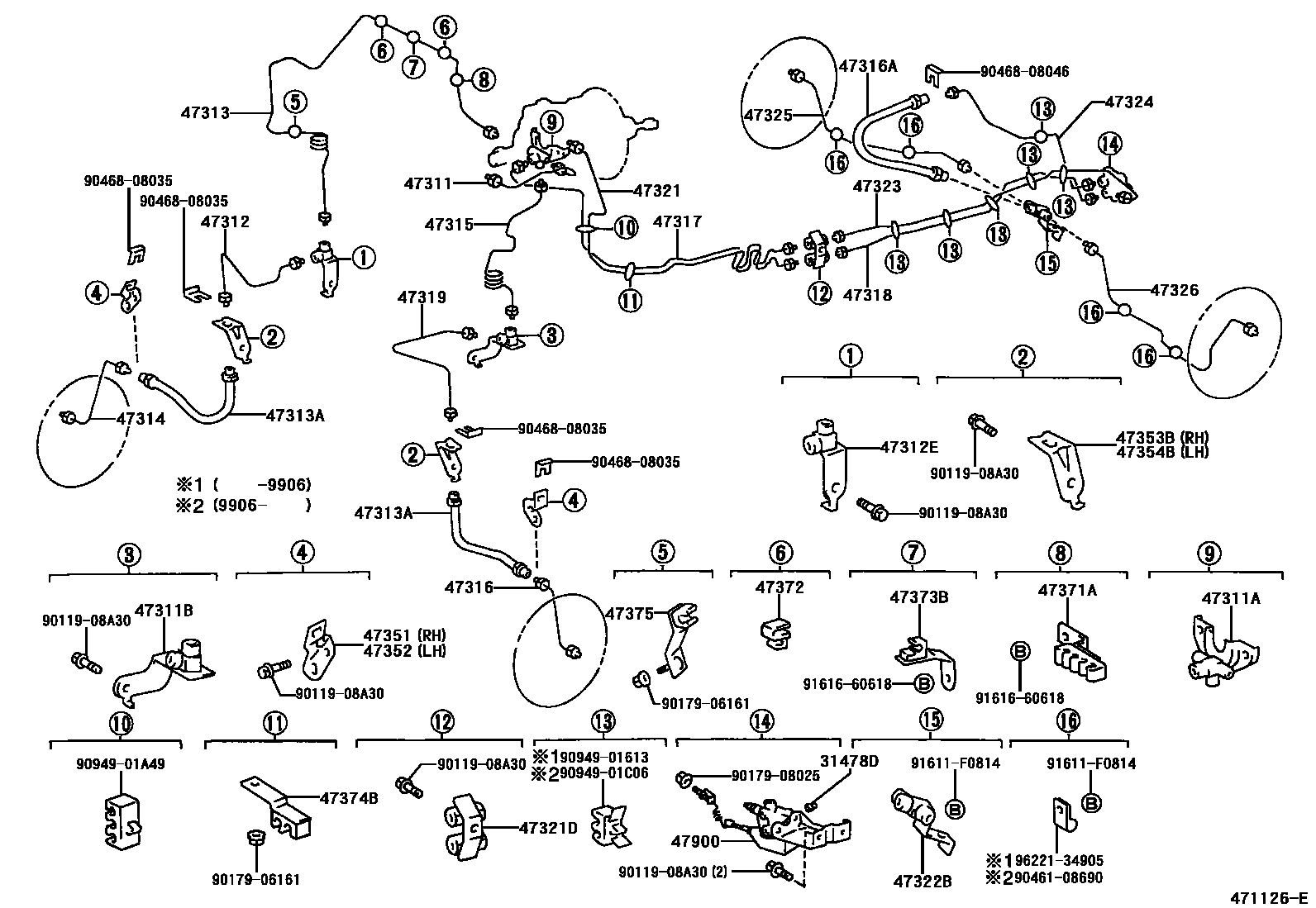

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS)

31478DCAP, BLEEDER PLUG(FOR LSPV)

main31478-30010iKZN185,RZN18#,VZN18#199511

47311TUBE, FRONT BRAKE, NO.1

main47311-35480iKZN185,RZN18#,VZN18#199511

main47311-35510iKZN185,VZN18#199807

W(ABS)

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-14006iKZN185,RZN18#,VZN18#199511

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12040iKZN185,RZN18#,VZN18#199511

47312TUBE, FRONT BRAKE, NO.2

main47313-3D050iKZN185,RZN18#,VZN18#199511

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12041iKZN185,RZN18#,VZN18#199511

47313TUBE, FRONT BRAKE, NO.3

main47313-3D010iKZN185,RZN18#,VZN18#199511

main47313-3D040iKZN185,VZN18#199807

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02862×2iKZN185,RZN185,VZN185199511-200008

main90947-02B14×2iKZN185,RZN18#,VZN18#200008

47314TUBE, FRONT BRAKE, NO.4

main47314-35330iKZN185,RZN18#,VZN18#199511

47315TUBE, FRONT BRAKE, NO.5

main47315-35300iKZN185,RZN18#,VZN18#199511

main47315-35310iKZN185,VZN185199807-200008

W(ABS)

47316TUBE, FRONT BRAKE, NO.6

main47316-35250iKZN185,RZN18#,VZN18#199511

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02869iKZN185,RZN185,VZN185199511-200008

main90947-02C59iKZN185,RZN18#,VZN18#200008

47317TUBE, FRONT BRAKE, NO.7

main47317-35040iKZN185,RZN18#,VZN18#199511

47318TUBE, FRONT BRAKE, NO.8

main47318-35090iKZN185,RZN185,VZN185199511-199801

main47318-35091iKZN185,RZN185,VZN185199801-199906

main47318-60121iKZN185,RZN18#,VZN18#199906

47319TUBE, FRONT BRAKE, NO.9

main47315-35320iKZN185,RZN18#,VZN18#199511

47321TUBE, REAR BRAKE, NO.1

main47321-35740iKZN185,VZN18#199807

W(ABS)

main47321-35750iKZN185,RZN18#,VZN18#199511

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10165iKZN185,VZN18#199807

W(ABS)

main90412-10166iKZN185,RZN18#,VZN18#199511

47322TUBE, REAR BRAKE, NO.2

main47322-35730iKZN185,VZN18#199807

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10263iKZN185,RZN185,VZN185199511-200008

main90413-10295iKZN185,RZN18#,VZN18#200008

47323TUBE, REAR BRAKE, NO.3

main47323-35160iKZN185,RZN185,VZN185199511-199801

main47323-35161iKZN185,RZN185,VZN185199801-199906

main47323-35170iKZN185,VZN185199807-199906

W(ABS)

main47323-35220iKZN185,VZN18#200008

W(ABS)

main47323-60631iKZN185,RZN18#,VZN18#199906

main47323-60641iKZN185,VZN185199906-200008

W(ABS)

47324TUBE, REAR BRAKE, NO.4

main47324-35240iKZN185,RZN185,VZN185199511-199801

main47324-35241iKZN185,RZN185,VZN185199801-199906

main47324-35280iKZN185,RZN18#,VZN18#200008

main47324-60271iKZN185,RZN185,VZN185199906-200008

47325TUBE, REAR BRAKE, NO.5

main47325-35270iKZN185,RZN185,VZN185199511-199906

main47325-35272iKZN185,RZN185,VZN185199906-200008

main47325-35340iKZN185,RZN18#,VZN18#200008

47326TUBE, REAR BRAKE, NO.6

main47326-35050iKZN185,RZN185,VZN185199511-199906

main47326-35052iKZN185,RZN185,VZN185199906-200008

main47326-35090iKZN185,RZN18#,VZN18#200008

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35270iKZN185,RZN18#,VZN18#199511

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35310iKZN185,RZN18#,VZN18#199511

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35110iKZN185,RZN18#,VZN18#199511

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-35100iKZN185,RZN18#,VZN18#199511

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35300iKZN185,RZN18#,VZN18#199511

main47371-60140iKZN185,VZN18#199907

W(265/70R16 7J TIRE)

47372CLAMP, BRAKE TUBE, NO.2

main47372-35150×2iKZN185,VZN18#199807

W(ABS)

main47372-35170×2iKZN185,RZN18#,VZN18#199511

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35070iKZN185,RZN18#,VZN18#199511

main47373-35090iKZN185,VZN18#199807

W(ABS)

47374BCLAMP, BRAKE TUBE, NO.4

main47374-35030iKZN185,RZN18#,VZN18#199511

47375CLAMP, BRAKE TUBE, NO.5

main47375-35160iKZN185,RZN18#,VZN18#199511

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-35490iKZN185,RZN185,VZN185199511-199801

main47900-35491iKZN185,RZN18#,VZN18#199801-200205

main47900-35493iKZN185,RZN18#,VZN18#200205

9011908A30

main90119-08A30

9017906161

main90179-06161

9017908025

main90179-08025

9046108690

main90461-08690

9046808035

main90468-08035

9046808046

main90468-08046

9094901613

main90949-01613

9094901A49

main90949-01A49

9094901C06

main90949-01C06

91611F0814

main91611-F0814

9161660618

main91616-60618

9622134905

main96221-34905

45 parts on this diagram · 3 diagrams in section
