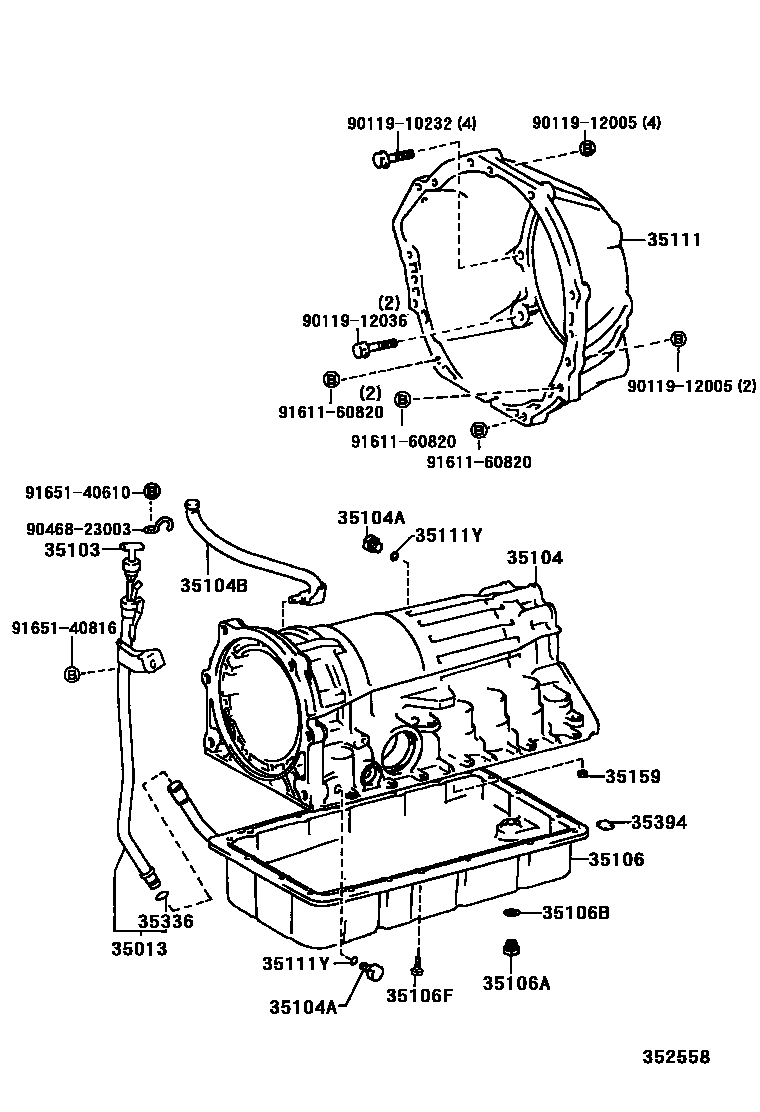

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340F 0002 1A340E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35290iVZN18#199511

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35290iVZN180200008

main35103-35300iVZN185199511-199603

main35103-35350iVZN185199603

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-35011iVZN185199511

main35104-35030iVZN180200008

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iVZN18#199511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iVZN180200008

main90930-03116iVZN185199511

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35090iVZN180200008

main35106-35100iVZN185199511

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iVZN18#199511

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iVZN18#199511

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iVZN18#199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35060iVZN18#199511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iVZN18#199511

35159GASKET, BRAKE DRUM

main35159-30010iVZN18#199511

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iVZN18#199511

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iVZN185199511

9011910232

main90119-10232

9011912005

main90119-12005

9011912036

main90119-12036

9046823003

main90468-23003

9161160820

main91611-60820

9165140610

main91651-40610

9165140816

main91651-40816

21 parts on this diagram · 2 diagrams in section
