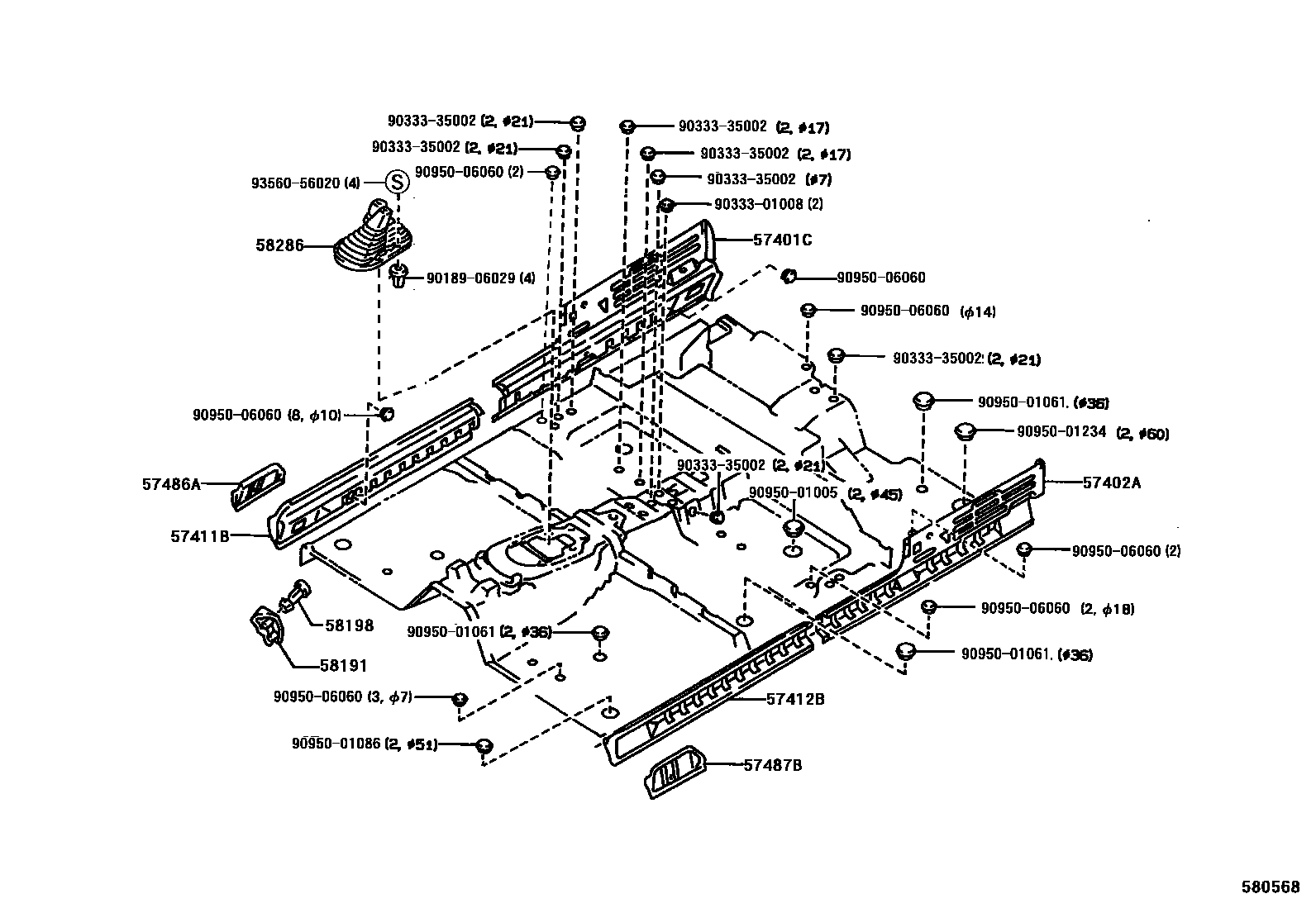

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0005 1 0006 1

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-89114iLN10#,RN105,YN106..T1198808-200106

main57401-89115iLN111,RN110198808-199708

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-89114iLN205..T1200106

main57402-89115iLN111,RN110198808-199708

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135199008-200106

main57411-89104iLN106,111,13#,RN105,110,13#,YN106,13#198808-199008

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135199008-200106

main57412-89106iLN106,111,13#,RN105,110,13#,YN106,13#198808-199008

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

58191FOOTREST, FRONT FLOOR

main58191-35010iLN10#,111,13#,RN10#,110,13#,VZN130,YN135..RHD..(DLX,SR5)199008-199201

main58191-89103iLN106,111,13#,RN105,110,130,YN13#..RHD..(DLX,SR5)198808-199008

main58192-89101iLN107..SR5..GEN;LN13#,RN106,13#,YN135..LHD..(DLX,SR5)198904-200106

58198CLIP, FOOTREST

main58198-89101×2iLN107..SR5..GEN;LN13#,RN106,13#,YN135..LHD..(DLX,SR5)198904-200106

main58198-89102×2iLN106..RHD..T1..GEN..CBU199108-199909

MALAYSIA SPEC

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-35030iLN13#,RN13#,VZN130..RHD..5F199308-199511

main58280-35040iLN10#,111..RHD199308-199909

main58280-35050iLN13#,RN13#..LHD199308-199511

main58280-35060iLN10#,111..LHD199308-200106

main58280-35080iRN10#,110,YN106..RHD199308-199708

main58280-35090iRN10#,YN106..LHD199308-199909

main58280-89112iLN13#,RN10#,110,13#,VZN130,YN106,135..RHD..5F198808-199308

main58280-89113iLN10#,111..RHD198808-199308

main58280-89116iLN13#,RN10#,13#,YN106,135..LHD198808-199308

main58280-89117iLN106,111..LHD198808-199308

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001005

main90950-01005

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006060

main90950-06060

9356056020

main93560-56020

18 parts on this diagram · 5 diagrams in section
