INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

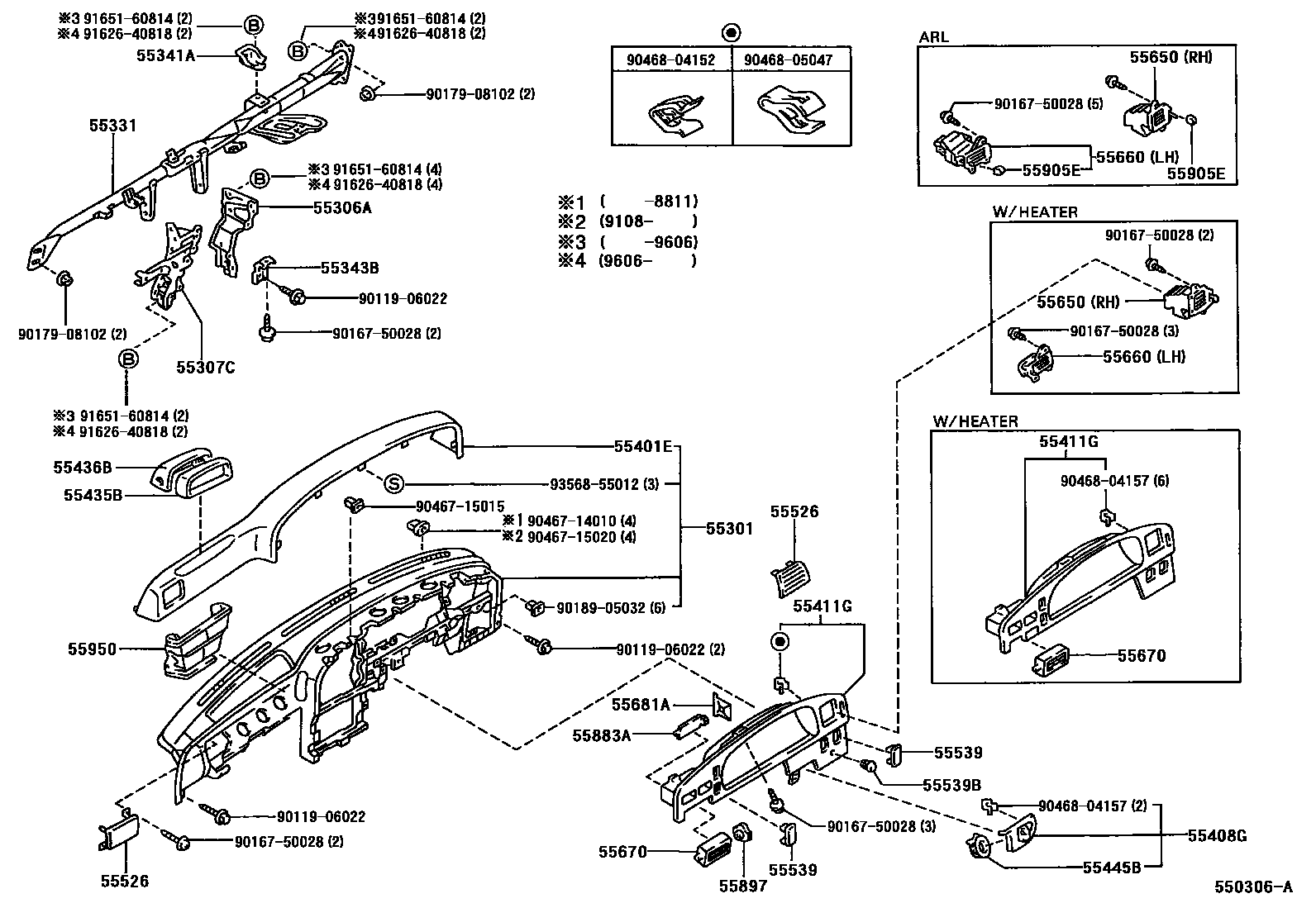

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35020-B0iLN106,111,RN10#,YN106..LHD199211-199909

GRAY,TRIM1#

main55301-35020-D0iRN105..V199108-199708

RED,TRIM3#

main55301-35020-J0iLN106,111,RN105,YN106..LHD199108-199211

BLUE,TRIM8#

main55301-35030-B0iRN106..GEN199108-199211

GRAY,TRIM1#

main55301-35030-J0iRN106..GEN199108-199211

BLUE,TRIM8#

main55301-89121-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main55301-89121-B0iLN13#,RN13#,YN135..LHD198904-199511

MEDIUM GRAY,TRIM1#

main55301-89121-E0iLN135,RN135,YN135..LHD198904-199108

BROWN,TRIM4#

main55301-89121-J0iLN13#,RN13#,YN135..LHD198904-199511

MEDIUM BLUE,TRIM8#

main55301-89122-02iLN135,YN135..LHD199008-199108

W(ACCESSORY METER),RED,TRIM3#

main55301-89122-03iLN13#,RN13#,YN135..LHD198904-199511

W(ACCESSORY METER),GRAY,TRIM1#

main55301-89122-04iLN13#,RN13#,YN135..LHD198904-199511

W(ACCESSORY METER),BLUE,TRIM8#

main55301-89122-06iLN135,RN135,YN135..LHD198904-199108

W(ACCESSORY METER),BROWN,TRIM4#

main55301-89123-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main55301-89123-03iLN106,111,RN105,110,YN106..RHD198808-198901

GRAY,TRIM1#

main55301-89123-04iLN106,111,RN105,110,YN106..RHD198808-198901

BLUE,TRIM8#

main55301-89123-06iLN106,111,RN105,110,YN106..RHD198808-198901

BROWN,TRIM4#

main55301-89123-B0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198901-199909

MEDIUM GRAY,TRIM1#

main55301-89123-E0iLN106,111,13#,RN105,110,130,VZN130,YN106,13#..RHD198901-199108

BROWN,TRIM4#

main55301-89123-J0iLN13#,RN13#,VZN130..RHD199408-199511

MEDIUM BLUE,TRIM8#

main55301-89124-02iLN135,YN135..RHD199008-199108

W(ACCESSORY METER),RED,TRIM3#

main55301-89124-03iLN135,YN135..RHD198904-199108

W(ACCESSORY METER),GRAY,TRIM1#

main55301-89124-04iLN135,YN135..RHD198904-199108

W(ACCESSORY METER),BLUE,TRIM8#

main55301-89124-06iLN135,YN135..RHD198904-199108

W(ACCESSORY METER),BROWN,TRIM4#

main55301-89126-03iLN106,111,RN105,YN106..LHD198808-199108

GRAY,TRIM1#

main55301-89126-04iLN106,111,RN105,YN106..LHD198808-199108

BLUE,TRIM8#

main55301-89126-06iLN106,111,RN105,YN106..LHD198808-199108

BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35010iLN10#,111,RN10#,YN106..LHD199108-200106

main55306-35110iKZN205,LN205200106

main55306-89105iLN13#,RN13#,YN135..LHD198904-199511

main55306-89106iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35010iKZN205,LN205200106

main55307-89107iLN13#,RN13#,YN135..LHD198904-199511

main55307-89108iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35020iKZN205,LN205200106

main55330-35030iLN13#,RN13#..LHD199408-199511

main55330-89117iLN135,YN135..LHD198904-198906

main55330-89118iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

main55330-89119iLN106,111,RN105,YN106..LHD198808-198906

main55330-89120iLN135,RN135,YN135..LHD198906-199108

main55330-89121iLN106,111,RN105,YN106..LHD198906-199108

55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER

main55341-89103iLN10#,111,13#,RN10#,13#,YN106,135..LHD198808-200106

main55341-89104iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-89101iLN10#,111,13#,RN10#,13#,YN106,135..LHD198808-200106

main55343-89102iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-89122-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main55401-89122-B0iLN13#,RN13#,YN135..LHD198904-199511

MEDIUM GRAY,TRIM1#

main55401-89122-E0iLN135,RN135,YN135..LHD198904-199108

BROWN,TRIM4#

main55401-89122-J0iLN13#,RN13#,YN135..LHD198904-199511

MEDIUM BLUE,TRIM8#

main55401-89123-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main55401-89123-03iLN106,111,RN105,110,YN106..RHD198808-198901

GRAY,TRIM1#

main55401-89123-04iLN106,111,RN105,110,YN106..RHD198808-198901

BLUE,TRIM8#

main55401-89123-06iLN106,111,RN105,110,YN106..RHD198808-198901

BROWN,TRIM4#

main55401-89123-B0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198901-199909

MEDIUM GRAY,TRIM1#

main55401-89123-E0iLN106,111,13#,RN105,110,130,VZN130,YN106,13#..RHD198901-199108

BROWN,TRIM4#

main55401-89123-J0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198901-199408

MEDIUM BLUE,TRIM8#

55408GBEZEL SUB-ASSY, STARTER SWITCH

main55408-89101iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199909

main55408-89104iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-35040iLN106,111,RN10#,YN106..LHD199108-199909

main55411-89109iLN13#,RN13#,YN135..LHD198904-199511

main55411-89110iLN10#,111,130,RN10#,110,130,VZN130,YN130..ARL198808-199812

main55411-89111iLN106,111,RN105,YN106..LHD198808-199108

main55411-89114iLN107..ARL199508-199812

NEW ZEALAND SPEC

55435BCLUSTER, METER HOOD, NO.1

main55435-89104-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main55435-89104-03iLN135,YN135..RHD198904-199108

GRAY,TRIM1#

main55435-89104-04iLN135,YN135..RHD198904-199108

BLUE,TRIM8#

main55435-89104-06iLN135,YN135..RHD198904-199108

BROWN,TRIM4#

main55435-89105-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main55435-89105-03iLN13#,RN13#,YN135..LHD198904-199511

GRAY,TRIM1#

main55435-89105-04iLN13#,RN13#,YN135..LHD198904-199511

BLUE,TRIM8#

main55435-89105-06iLN135,RN135,YN135..LHD198904-199108

BROWN,TRIM4#

55436BCLUSTER, METER HOOD, NO.2

main55436-89101-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main55436-89101-03iLN135,YN135..RHD198904-199108

GRAY,TRIM1#

main55436-89101-04iLN135,YN135..RHD198904-199108

BLUE,TRIM8#

main55436-89101-06iLN135,YN135..RHD198904-199108

BROWN,TRIM4#

main55436-89102-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main55436-89102-03iLN13#,RN13#,YN135..LHD199008-199511

GRAY,TRIM1#

main55436-89102-04iLN13#,RN13#,YN135..LHD198904-199511

BLUE,TRIM8#

main55436-89102-06iLN135,RN135,YN135..LHD198904-199108

BROWN,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-89103iLN107..ARL;LN106,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199909

55526COVER, INSTRUMENT PANEL REGISTER OPENING

main55526-89108iLN106,111,135,RN105,135,YN106,135..LHD198808-198908

DRIVER SIDE

main55526-89109-02iRN105..V199108-199708

RED,TRIM3#,PASSENGER SIDE

main55526-89109-03iLN106,111,RN105,YN106..LHD199008-199108

GRAY,TRIM1#,PASSENGER SIDE

main55526-89109-04iLN106,111,RN105,YN106..LHD199008-199108

BLUE,TRIM8#,PASSENGER SIDE

main55526-89109-06iLN106,111,RN105,YN106..LHD199008-199108

BROWN,TRIM4#,PASSENGER SIDE

main55526-89110iLN106,YN106..RHD..GEN199008-199108

DRIVER SIDE

main55526-89111-03iLN106,135,YN106,135..RHD..GEN198808-199008

GRAY,TRIM1#,PASSENGER SIDE

main55526-89111-04iLN106,YN106..RHD..GEN199008-199108

BLUE,TRIM8#,PASSENGER SIDE

main55526-89111-06iLN106,YN106..RHD..GEN199008-199108

BROWN,TRIM4#,PASSENGER SIDE

55539COVER, SPARE SWITCH HOLE

main55539-89105iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-89104iRN135..GEN;LN106,111,13#,RN10#,130,YN106,135..GEN,V198808-199909

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89112iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199909

main55650-89113iLN107..ARL199508-199812

NEW ZEALAND SPEC

main55650-89114iLN10#,111,130,RN10#,110,130,VZN130,YN130..ARL198808-199812

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-89106-03iLN10#,111,130,RN10#,110,130,VZN130,YN130..ARL198808-199812

GRAY,TRIM1#

main55660-89106-04iLN130,RN130,VZN130..ARL199408-199511

BLUE,TRIM8#

main55660-89106-06iLN106,111,130,RN105,110,130,VZN130,YN130..ARL198808-199108

BROWN,TRIM4#

main55660-89107-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main55660-89107-03iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199109

GRAY,TRIM1#

main55660-89107-04iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199109

BLUE,TRIM8#

main55660-89107-06iLN106,111,135,RN105,135,YN106,135..LHD198808-199108

BROWN,TRIM4#

main55660-89107-B0iLN107..(SR5,STD)..GEN;LN106,111,13#,RN10#,13#,YN106..LHD199109-200105

MEDIUM GRAY,TRIM1#

main55660-89107-D0iRN105..V199109-199708

RED,TRIM3#

main55660-89107-J0iLN106,111,13#,RN10#,13#,YN106..LHD199109-199408

MEDIUM BLUE,TRIM8#

main55660-89108-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main55660-89108-03iLN106,135,RN105,135,YN106,135..RHD..GEN198808-199310

GRAY,TRIM1#

main55660-89108-04iLN106,135,RN105,135,YN106,135..RHD..GEN198808-199310

BLUE,TRIM8#

main55660-89108-06iLN106,135,YN106,135..RHD..GEN198808-199108

BROWN,TRIM4#

main55660-89108-B0iLN107..ARL199508-199812

NEW ZEALAND SPEC,MEDIUM GRAY,TRIM1#

main55660-89108-J0iLN135,RN135..RHD199408-199511

MEDIUM BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-89115×2iLN106,111,RN105,YN106..LHD; LN135,RN135,YN135..LHD199008-199108

W(HEATER)

main55670-89116×2iLN106,111,130,RN105,110,130,YN130..ARL; LN106,135,YN106,135..RHD..GEN198808-199008

W(HEATER)

main55670-89117×2iLN106,111,135,RN105,135,YN106,135..LHD198808-198908

main55670-89118×2iLN106,135,YN106,135..RHD..GEN198808-199008

55681ASUPPORT, INSTRUMENT PANEL REGISTER

main55681-89101iLN106,111,135,RN105,135,YN106,135..LHD198808-198908

main55681-89102iLN106,135,YN106,135..RHD..GEN198808-199008

55883ADAMPER, AIR

main55883-89101×2iLN106,111,RN105,YN106..LHD199008-199108

main55883-89102×2iLN106,YN106..RHD..GEN199008-199108

55897KNOB, AIR DAMPER CONTROL LEVER

main55897-89105×2iLN106,111,135,RN105,135,YN106,135..LHD198808-198908

main55897-89108×2iLN106,135,YN106,135..RHD..GEN198808-199008

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLN130,RN130,VZN130..ARL199408-199511

BLACK,TRIM1#,8#,PASSENGER SIDE

main55905-12050-13×2iLN106,111,130,RN105,110,130,VZN130,YN130..ARL198808-199106

MEDIUM GRAY,TRIM1#

main55905-12050-26×2iLN106,111,130,RN105,110,130,VZN130,YN130..ARL198808-199106

BROWN,TRIM4#

main55905-12050-54×2iLN106,111,130,RN105,110,130,VZN130,YN130..ARL198808-199106

BLUE,TRIM8#

main55905-35090-B0iLN10#,111,130,RN10#,110,130,VZN130..ARL199108-199812

GRAY,TRIM1#,DRIVER SIDE

main55905-35090-E0iLN106,111,130,RN105,110,130,VZN130..ARL199106-199108

BROWN,TRIM4#,PASSENGER SIDE

main55905-35090-J0iLN130,RN130,VZN130..ARL199408-199511

BLUE,TRIM8#,DRIVER SIDE

55950NOZZLE ASSY, DEFROSTER

main55950-89108iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199909

main55950-89109iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

9011906022

main90119-06022

9016750028

main90167-50028

9017908102

main90179-08102

9018905032

main90189-05032

9046714010

main90467-14010

9046715015

main90467-15015

9046715020

main90467-15020

9046804152

main90468-04152

9046804157

main90468-04157

9046805047

main90468-05047

9162640818

main91626-40818

9165160814

main91651-60814

9356855012

main93568-55012

36 parts on this diagram · 6 diagrams in section
