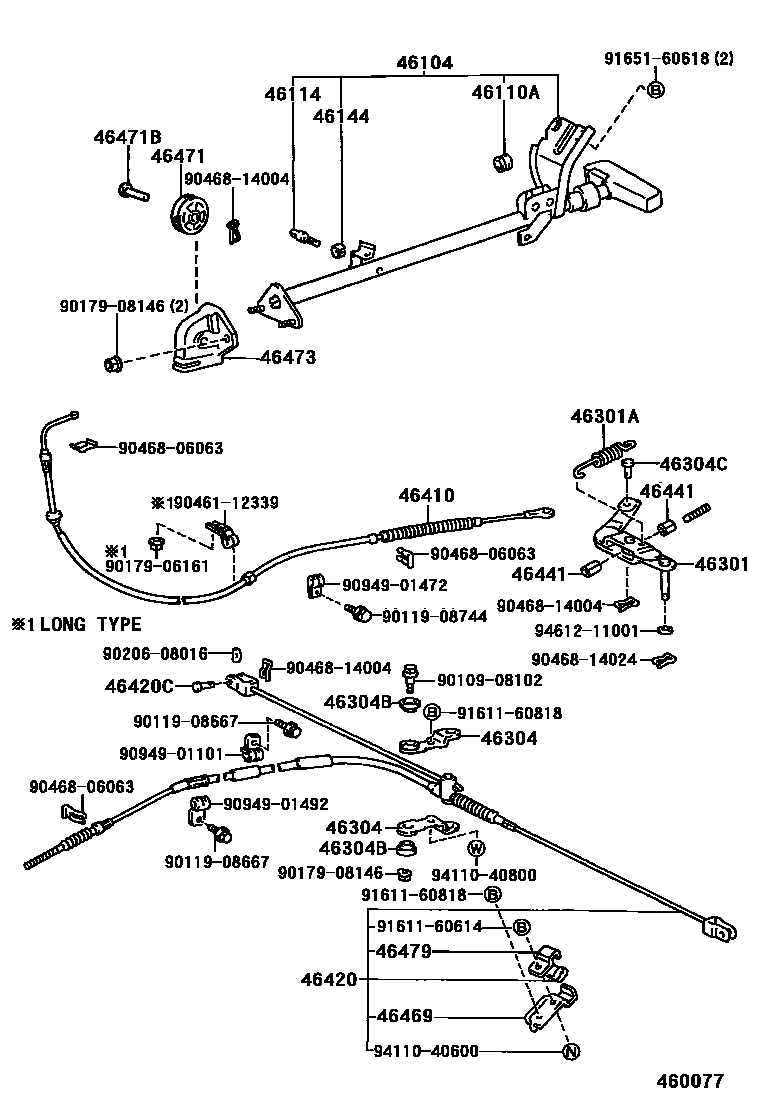

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35010iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199306

main46104-35020iVZN130199008-199511

main46104-35030iLN106,111,130,RN10#,13#,YN106..LHD199306-199308

main46110-35230iLN10#,111,13#,RN10#,110,13#,YN106,13#..RHD198808-199909

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35190iLN106,RN105,YN106198808-199909

main46301-35200iLN107,111,135,RN106,110,135,YN135198808-200106

main46301-35210iLN130,RN130,VZN130,YN130198908-199108

main46301-35220iLN130,RN130,VZN130199108-199511

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-20060iLN135,RN135,YN135198904-199511

main90506-25003iLN107,111,RN106,110199012-200106

main90507-20011iLN106,RN105,YN106199012-199909

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-35010iLN130,RN130,VZN130,YN130198908-199511

main46341-35030×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

46304CPIN(FOR PARKING BRAKE EQUALIZER)

main90240-08040iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35450iRN105,YN106..RHD198808-199708

main46410-35460iLN106..RHD198808-199909

main46410-35470iRN110198808-199708

main46410-35480iLN111..ARL198808-199708

main46410-35510iLN106,RN105,YN106..LHD198808-199708

main46410-35520iLN135..LHD198904-199511

main46410-35550iRN106..GEN199108-199909

main46410-35580iLN111..GEN198808-199708

main46410-35590iRN13#,YN13#..RHD198904-199511

main46410-35600iLN13#..RHD198904-199308

main46410-35630iRN13#,YN135..LHD198904-199511

main46410-35660iLN130..GEN199108-199511

main46410-35670iVZN130199008-199511

main46410-35680iLN107..GEN199703-200106

main46410-35690iRN106..ARL199108-199708

main46410-35700iLN107..ARL199108-199812

main46410-35730iLN13#..RHD199308-199511

main46410-3D030iLN205200106

main46410-3D040iKZN205200108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35490iLN106,RN105,YN106198808-199909

main46420-35500iLN107,111,RN106,110198808-200106

main46420-35510iLN135,RN135,YN135198904-199511

main46420-35520iLN130,RN130,VZN130,YN130198908-199511

main46420-35720iKZN205,LN205200106

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46469LEVER, CABLE GUIDE SUPPORT

main46469-35020iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

46471PULLEY, WIRE

main46471-20010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iVZN130;LN10#,111,13#,RN10#,13#,YN106,135..LHD198808-200106

main90240-08070iLN10#,111,13#,RN10#,110,13#,YN106,13#..RHD198808-199909

46473BRACKET, PULLEY

main46473-35020iLN10#,111,13#,RN10#,110,13#,YN106,13#..RHD198808-199909

46479LEVER, CABLE GUIDE SAPPORT, NO.2

main46479-35010iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

9010908102

main90109-08102

9011908667

main90119-08667

9011908744

main90119-08744

9017906161

main90179-06161

9017908146

main90179-08146

9020608016

main90206-08016

9046112339

main90461-12339

9046806063

main90468-06063

9046814004

main90468-14004

9046814024

main90468-14024

9094901101

main90949-01101

9094901472

main90949-01472

9094901492

main90949-01492

9161160614

main91611-60614

9161160818

main91611-60818

9165160618

main91651-60618

9411040600

main94110-40600

9411040800

main94110-40800

9461211001

main94612-11001

37 parts on this diagram · 4 diagrams in section
