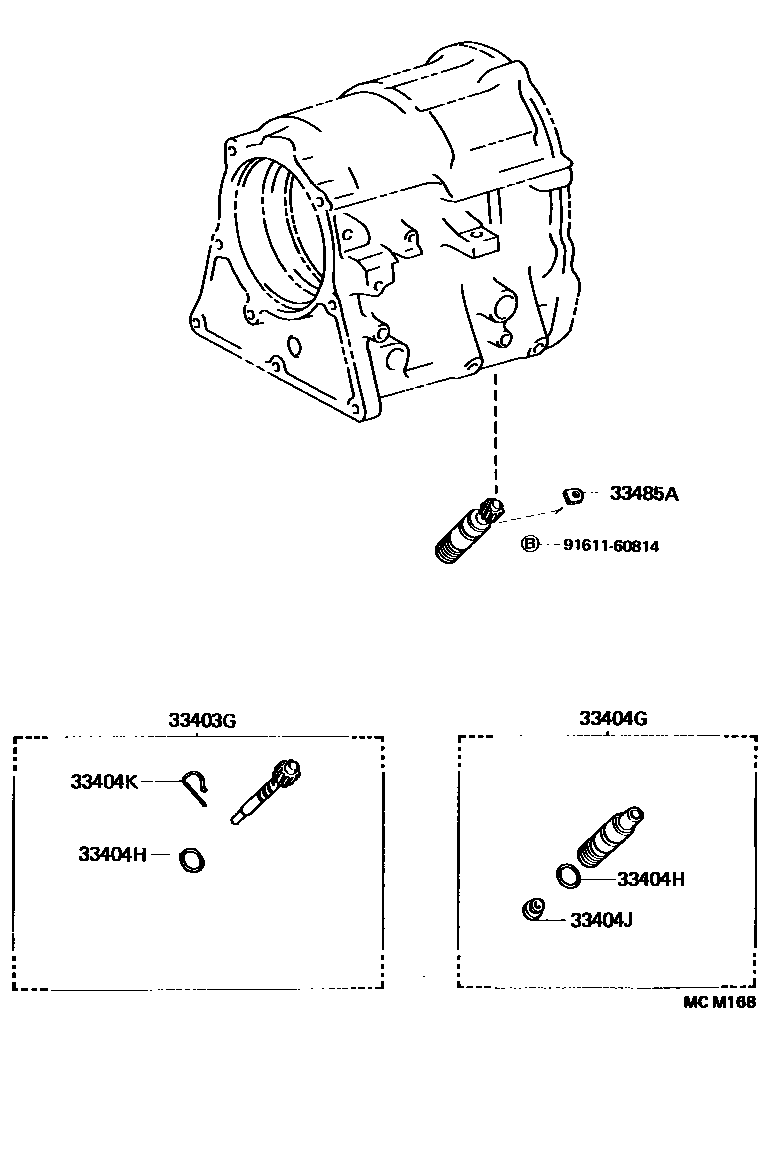

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0003 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29145iLN107,111..ARL..CBU199606-199812

N=31,MARK 31:10

main33403-39045iVZN130..4FC199108-199511

N=17,MARK 17:4,W(*ADD)

main33403-39315iVZN130..4FC199108-199408

N=20,MARK 20:6

main33482-29055iYN130198908-199008

N=17,MARK 17:5

main33482-39025iVZN130..4FC199008-199108

N=19,MARK 19:6

main33482-39045iVZN130..4FC199408-199511

N=20,MARK 20:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-22010iLN107,111..ARL..CBU199606-199812

main33404-35010iVZN130,YN130..4FC198908-199108

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iVZN130..4FC199408-199511

main96711-24030iLN107,111..ARL..CBU199606-199812

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iVZN130,YN130..4FC198908-199108

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZN130,YN130..4FC198908-199511

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iVZN130,YN130..4FC198908-199108

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
