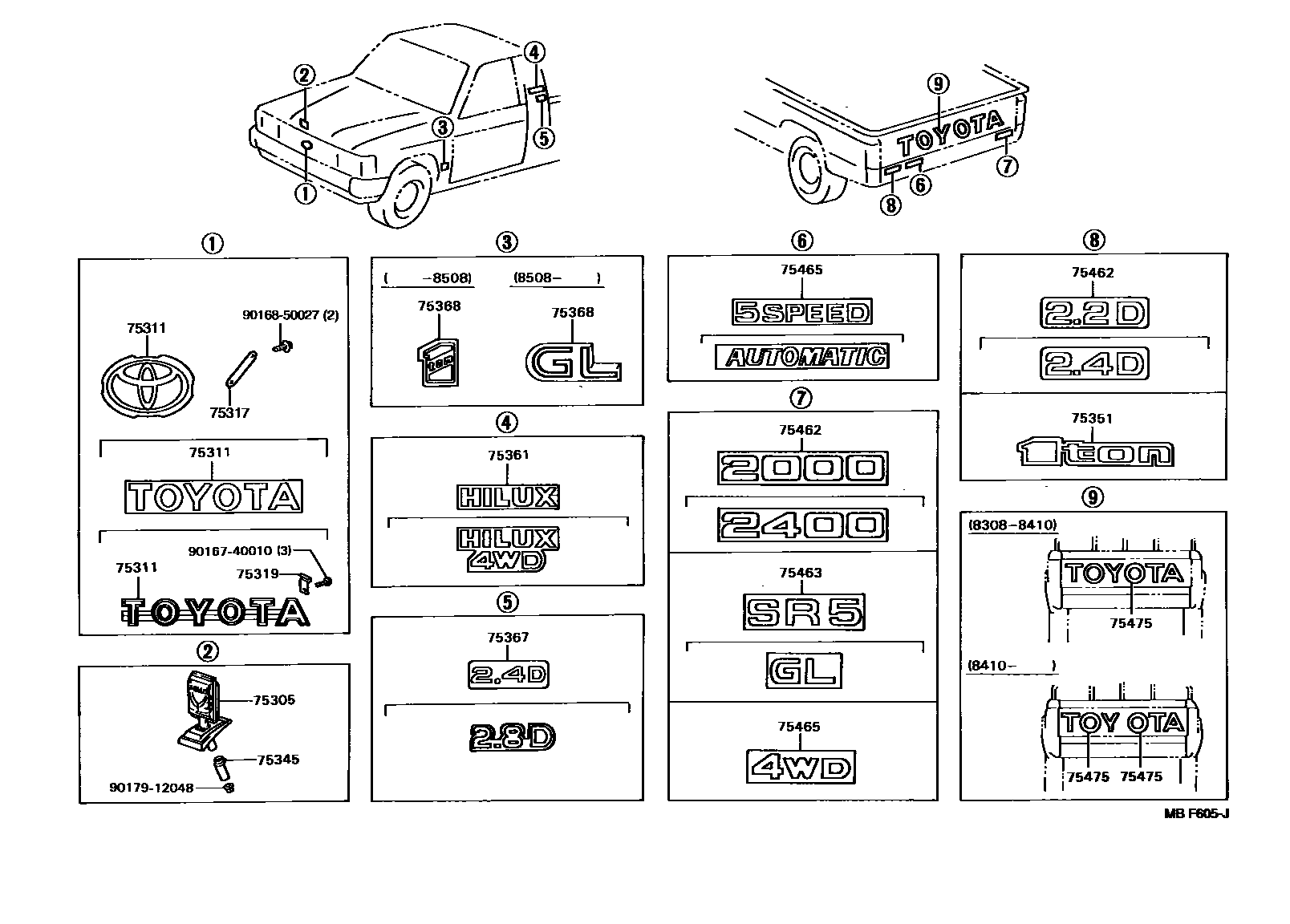

EMBLEM & NAME PLATE

0001 1 0002 1

75305EMBLEM, HOOD

main75303-89101iRN50,55,YN52,57..ME198508-199807

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-35130iLN5#,6#,RN58,67,YN5#199407-199807

main75311-89109iLN5#,6#,YN5#,6#198308-198508

main75311-89110iRN5#,YN52,57..ME198508-198608

main75311-89113iLN5#,YN50,51,55,56,57,58..ARL,EUR,GEN,SA198608-199407

main75311-89114iRN5#,YN52,57..ME198608-198708

main75311-89115iLN51,YN57..RHD..RCB..GEN..CBU198808-199407

THAILAND SPEC

main75311-89116iRN5#,YN52,57..STD..ME198708-199407

75317PLATE, RADIATOR GRILLE ORNAMENT

main75317-35010iLN5#,6#,RN58,67,YN5#199407-199807

75319RETAINER, RADIATOR GRILLE (OR FRONT PANEL) NAME

main75318-89101iRN5#,YN52,57..ME198508-198608

main75318-89102iRN5#,YN52,57..ME198608-198708

75345PAD, HOOD ORNAMENT, NO.1

main75346-89101iRN50,55,YN52,57..ME198508-199807

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75471-89117iYN52,57..RCB..ME198503-198608

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75351-89118×2iLN5#,65,67,RN5#,67,YN5#,67198608-199807

HILUX,HILUX

main75351-89120×2iLN60,65,YN60,62,65,67..T1,TW198308-198608

HILUX 4WD

75367PLATE, FRONT FENDER NAME, NO.3 (DISPLACEMENT)

main75351-89116×2iLN51,56,60,65..T1,TW198308-199508

2.4D,2.4D

main75351-89126iLN51,56199508-199807

2.4D

main75351-89127iLN57,67199508-199807

2.8D

75368PLATE, FRONT FENDER NAME, NO.4 (LOADING CAPACITY MARK)

main75351-89122iYN52,57..RCB..ME198503-198508

main75351-89124iRN50,55,YN52,57..5F..ME198508-199807

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75435-89103iLN60,61..ARL198403-198903

2.4D,2.4D

main75435-89104iYN60..SR5198403-198508

2.0

main75435-89108iYN63198508-198608

main75473-89106iLN51,56,60,65..T1,T3,TW198308-198608

2.4D

main75473-89107iLN50,55198308-198408

2.2D

main75473-89108iYN52,57198308-198608

2000

main75473-89116iRN50,55198601-199807

2400,2400

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75435-89102iLN60,61,RN61,YN60,63..SR5198403-198903

SR5,SR5

main75472-89121iLN55,56,RN58,YN57,58,65,67..SR5198308-199807

SR5,SR5

main75472-89123iRN5#,YN52,57..RCB..5F..ME198508-198608

GL,GL

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75435-89105iYN63..EFI198608-198903

EFI,EFI

main75471-89113iLN60,65,YN60,62,65,67..T1,TW198308-198608

4WD

main75473-89112iLN56,YN57..4FC198508-198608

AUTOMATIC

main75474-89104-01iRN5#,YN52,57..5F..ME198508-198608

5SPEED,BLACK,BLACK

main75474-89104-08iYN57..5F..DLX..GEN198309-198608

5SPEED,WHITE,IVORY

main75474-89106-01iLN56,YN57..4FC198308-198508

AUTOMATIC,BLACK,BLACK

main75474-89106-08iLN56,YN57..4FC198308-198508

AUTOMATIC,WHITE,IVORY

main75474-89109iLN56,YN57,58..4FC198608-199807

AUTOMATIC,AUTOMATIC

main75474-89110iYN58..5F..(SR5,STD);LN51,56,RN50,55,YN51,52,56,57..5F198608-199807

5SPEED,5SPEED

main75474-89111iYN63..EFI198608-198903

AUTOMATIC,AUTOMATIC

75475PLATE, TAIL GATE

main75471-89109-01iYN57..LHD..STD198408-198410

TOYOTA,BLACK,BLACK

main75471-89109-02iYN57..LHD..STD198408-198410

TOYOTA,RED,RED/MAROON

main75471-89109-08iYN57..LHD..STD198408-198410

TOYOTA,WHITE,IVORY

main75471-89115-01iLN56,65,YN57..XTR..DLX..GEN; RN50,55,YN52,57..ME; YN57..LHD..TW..GEN198608-199807

TOY,BLACK,BLACK

main75471-89115-02iLN56,65,YN57..XTR..DLX..GEN; RN50,55,YN52,57..ME; YN57..LHD..TW..GEN198608-199807

TOY,RED,RED

main75471-89115-08iLN56,65,YN57..XTR..DLX..GEN; RN50,55,YN52,57..ME; YN57..LHD..TW..GEN198608-199807

TOY,WHITE,WHITE

main75472-89122-01iLN56,65,YN57..XTR..DLX..GEN; RN50,55,YN52,57..ME; YN57..LHD..TW..GEN198608-199807

OTA,BLACK,BLACK

main75472-89122-02iLN56,65,YN57..XTR..DLX..GEN; RN50,55,YN52,57..ME; YN57..LHD..TW..GEN198608-199807

OTA,RED,RED

main75472-89122-08iLN56,65,YN57..XTR..DLX..GEN; YN57..LHD..TW..GEN198608-199807

OTA,WHITE,WHITE

9016740010

main90167-40010

9016850027

main90168-50027

9017912048

main90179-12048

16 parts on this diagram · 2 diagrams in section
