REAR DOOR PANEL & GLASS
67435FRAME, REAR DOOR WINDOW LOWER, RH
67436FRAME, REAR DOOR WINDOW, LOWER LH
6756REAR DOOR LOCK & HANDLE
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67772BCAP, REAR DOOR TRIM RETAINER
67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67833COVER, REAR DOOR SERVICE HOLE
67833BCLIP(FOR REAR DOOR SERVICE HOLE COVER)
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)
main68211-89103
9011906430
main90119-06430
9095001392
main90950-01392
9165640616
main91656-40616

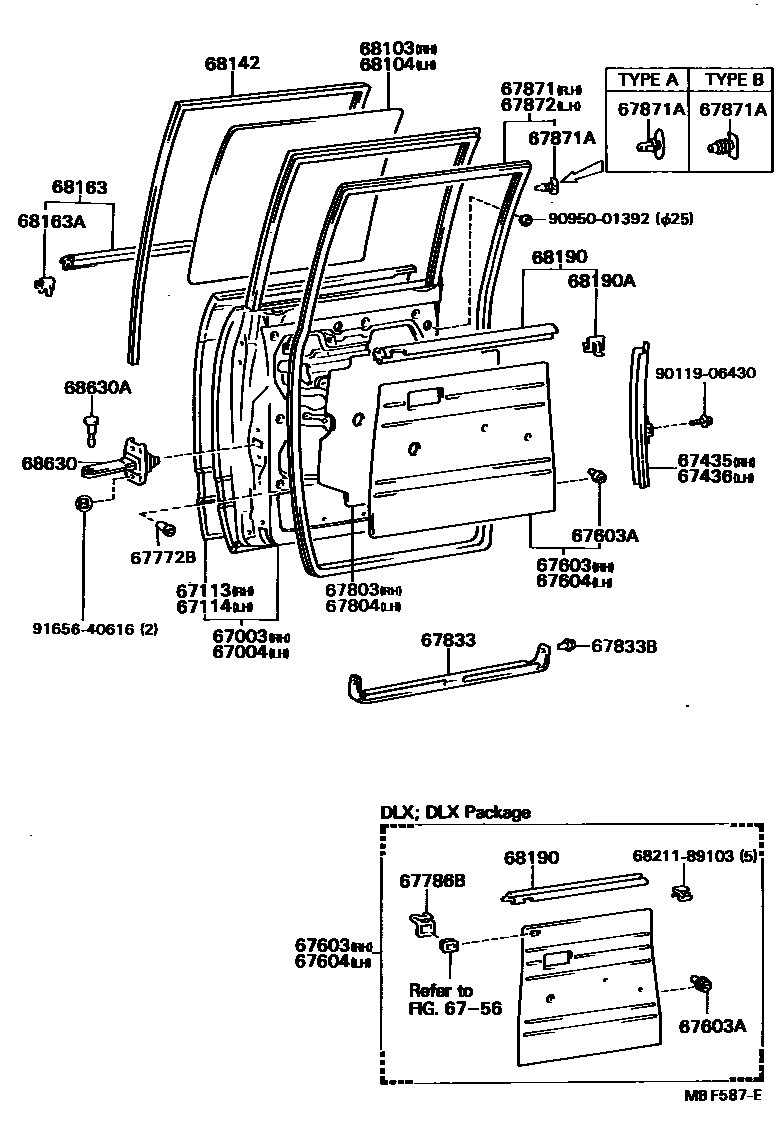

32 parts on this diagram · 1 diagram in section
