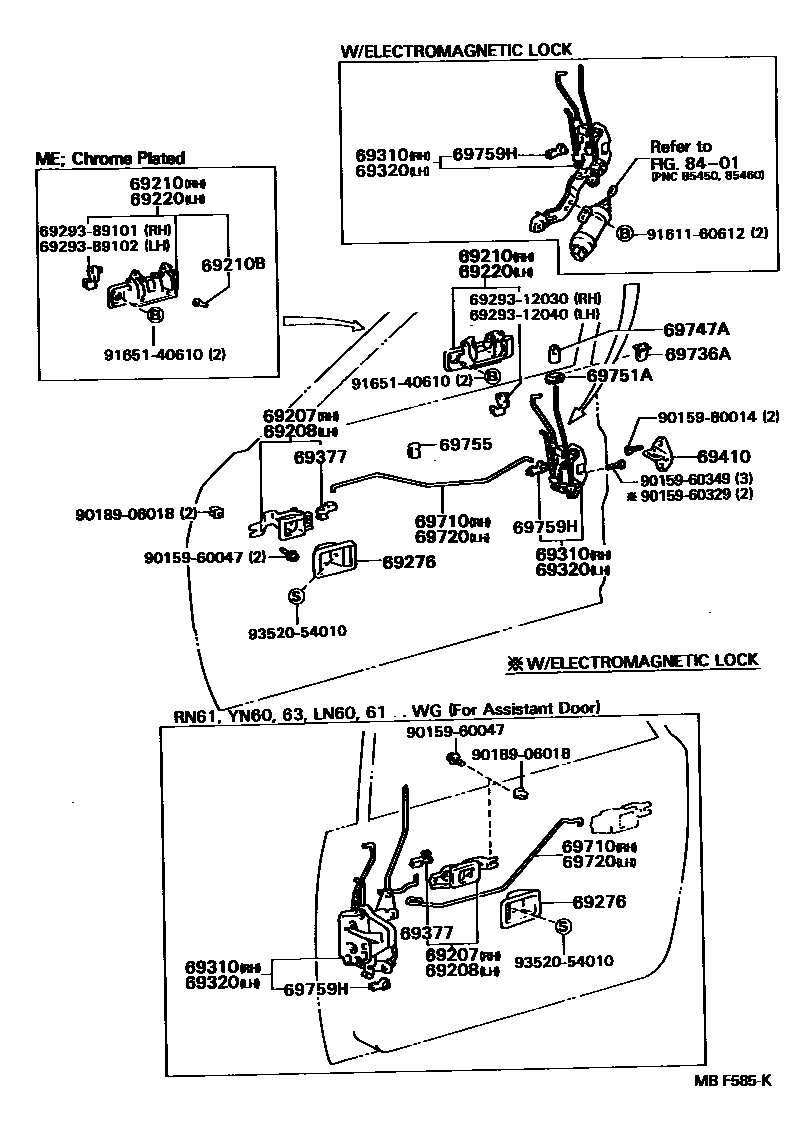

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-06iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198608

*SOOS & *GUS,BROWN,BROWN,TRIM4#; BROWN,BROWN,TRIM4#

main69205-12070-23iYN60,63..SR5..ME198403-198608

FR,GRAY,GRAY,TRIM1#

main69205-12070-24iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198608

*SOOS & *GUS,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main69205-12070-33iLN5#,65,67,RN58,61,YN50,51,55,56,57,58,67..EUR,GEN,SA; YN63..ME; YN67..ME198608-199807

FR,GRAY,MEDIUM GRAY,TRIM1#; GRAY,MEDIUM GRAY,TRIM1#

main69205-12070-35iLN5#,65,67,RN58,61,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN63..ME; YN67..ME198608-199807

BEIGE,BEIGE,TRIM4#; FR,BEIGE,BEIGE,TRIM4#

main69205-12070-43iLN5#,65,67,RN58,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN67..ME198608-199807

BLUE,BLUE,TRIM8#

main69205-89104iRN50,55,YN52,57..DLX..ME198708-199807

main69206-12070-06iYN60,63..SR5..ME198403-198608

RR,BROWN,BROWN,TRIM4#

main69206-12070-23iYN60,63..SR5..ME198403-198608

RR,GRAY,GRAY,TRIM1#

main69206-12070-24iYN60,63..SR5..ME198403-198608

RR,BLUE,BLUE,TRIM8#

main69206-12070-33iYN63..ME198608-199807

RR,GRAY,MEDIUM GRAY,TRIM1#

main69206-12070-35iYN63..ME198608-199807

RR,BEIGE,BEIGE,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-12070-06iLN60,61,YN60,63..ARL198403-198608

RR,BROWN,BROWN,TRIM4#

main69205-12070-23iLN60,61,YN60,63..ARL198403-198608

RR,GRAY,GRAY,TRIM1#

main69205-12070-24iLN60,61,YN60,63..ARL198403-198608

RR,BLUE,BLUE,TRIM8#

main69205-12070-33iLN61,YN63..ARL198608-198903

RR,GRAY,MEDIUM GRAY,TRIM1#

main69205-12070-35iLN61,YN63..ARL198608-198903

RR,BEIGE,BEIGE,TRIM4#

main69206-12070-06iLN60,61,YN60,63..ARL; YN60,63..SR5..ME198403-198605

BROWN,BROWN,TRIM4#; FR,BROWN,BROWN,TRIM4#

main69206-12070-23iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198605

*SOOS & *GUS,GRAY,GRAY,TRIM1#; GRAY,GRAY,TRIM1#

main69206-12070-24iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198605

*SOOS & *GUS,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main69206-12070-33iLN5#,65,67,RN58,61,YN50,51,55,56,57,58,67..EUR,GEN,SA; YN63..ME; YN67..ME198608-199807

GRAY,MEDIUM GRAY,TRIM1#

main69206-12070-35iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,BEIGE,BEIGE,TRIM4#

main69206-12070-43iLN5#,65,67,RN58,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN67..ME198608-199807

BLUE,BLUE,TRIM8#

main69206-89104iRN50,55,YN52,57..DLX..ME198708-199807

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89108iRN50,55,YN52,57..4F..ME198610-199807

main69210-89109iYN57,58..SR5..SA198401-199807

CHROME PLATED

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iLN50,55,6#,YN50,55,57,6#..GEN; LN55,56,65,YN55,57,65..ARL; YN50,52,55,57,6#..ME198308-198401

CHROME PLATED

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89108iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,EUR,GEN,SA)198308-199807

main69220-89109iRN61198712-198903

CHROME PLATED

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-89104-03×2iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198608

*SOOS & *GUS,GRAY,GRAY,TRIM1#; GRAY,GRAY,TRIM1#

main69277-89104-04×2iLN5#,65,YN50,55,56,57,62,65,67..ARL,EUR,GEN,SA; YN50,55,60,67..ME; YN52,57..ME198508-198608

*SOOS & *GUS,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main69277-89104-06×2iLN60,61,YN60,63..ARL; YN60,63..SR5..ME198403-198608

RH FR,LH,BROWN,BROWN,TRIM4#; RH,LH FR,BROWN,BROWN,TRIM4#

main69277-89104-25×2iLN5#,65,67,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN63..ME; YN67..ME198608-199807

BEIGE,BEIGE,TRIM4#; RH FR,LH,BEIGE,BEIGE,TRIM4#

main69277-89104-33×2iLN61,YN63..ARL198608-198903

RH,LH FR,GRAY,GRAY,TRIM1#

main69277-89104-34×2iLN5#,65,67,YN50,51,55,56,57,58,67..ARL,EUR,GEN,SA; YN67..ME198608-199807

BLUE,BLUE,TRIM8#

main69277-89105-03iLN60,61,YN60,63..ARL; YN60,63..SR5..ME198403-198608

LH RR,GRAY,GRAY,TRIM1#; RH RR,GRAY,GRAY,TRIM1#

main69277-89105-04iLN60,61,YN60,63..ARL; YN60,63..SR5..ME198403-198608

LH RR,BLUE,BLUE,TRIM8#; RH RR,BLUE,BLUE,TRIM8#

main69277-89105-05iRN61198712-198903

RH RR,BEIGE,BEIGE,TRIM4#

main69277-89105-06iLN60,61,YN60,63..ARL; YN60,63..SR5..ME198403-198608

LH RR,BROWN,BROWN,TRIM4#; RH RR,BROWN,BROWN,TRIM4#

main69277-89105-13iRN61198712-198903

RH RR,GRAY,GRAY,TRIM1#

main69277-89107×2iRN50,55,YN52,57..DLX..ME198708-199807

main69277-89108-05iRN61198712-198903

RH FR,LH,BEIGE,BEIGE,TRIM4#

main69277-89108-13iRN61198712-198903

RH FR,LH,GRAY,GRAY,TRIM1#

69310LOCK ASSY, FRONT DOOR, RH

main69310-89109iLN60,61,YN60,63..ARL198403-198903

main69310-89110iYN60,63..SR5..ME198403-198903

main69310-89112iYN63..ME198508-199807

W/ELECTROMAGNETIC LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-89109iLN5#,60,65,67,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-199807

main69320-89111iLN60,61,YN60,63..ARL198403-198903

main69320-89112iRN61198712-198903

W/*EL

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20060iYN50,55,60,67..ME; YN58..4F;YN58..SR5,STD;LN51,56,65,YN50,51,55,56,57,62,65,67..(4F,4FC,4H,5F)..(ARL,EUR,GEN,SA)198508-199807

RH

main69759-20070×2iLN60,61,YN60,63..ARL; RN61,YN60,63..LHD..SR5198403-198903

LH FR; RH RR,LH

main69759-22060iRN5#,YN52,57..ME198508-198708

LH

main69759-22070iRN5#,YN52,57..ME198508-198708

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-89102iLN60,61,YN60,63..ARL198403-198903

main69711-89103iRN61,YN60,63..LHD..SR5198403-198903

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-89102iLN5#,60,65,67,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-199807

main69712-89103iLN60,61,YN60,63..ARL198403-198903

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030×2iLN51,56,60,61,65,RN50,55,61,YN50,52,55,56,57,58,6#..ARL,EUR,GEN,ME198408-199807

main69736-22021×2iLN50,55,6#,YN5#,6#..EUR,GEN,ME,SA; LN55,56,6#,YN55,57,6#..ARL198311-198408

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32010-14×2iLN5#,6#,YN5#,6#198308-198411

BLUE,BLUE,TRIM8#

main69741-32010-26×2iLN5#,6#,YN5#,6#198308-198411

BROWN,BROWN,TRIM4#

main69741-32010-33×2iLN5#,6#,YN5#,6#198308-198411

GRAY,GRAY,TRIM1#

main69741-89102-03×2iLN5#,6#,RN5#,YN5#,6#198508-198608

GRAY,GRAY,TRIM1#

main69741-89102-04×2iLN5#,6#,RN5#,YN5#,6#198508-198608

BLUE,BLUE,TRIM8#

main69741-89102-05×2iLN5#,6#,RN5#,61,YN5#,6#198608-199408

BEIGE,BEIGE,TRIM4#

main69741-89102-06×2iLN5#,6#,RN5#,YN5#,6#198508-198608

BROWN,BROWN,TRIM4#

main69741-89102-13×2iLN5#,65,RN5#,61,YN5#,6#..EUR,GEN,ME,SA198608-199408

GRAY,GRAY,TRIM1#

main69741-89102-14×2iLN5#,65,RN5#,YN5#,67198608-199408

BLUE,BLUE,TRIM8#

main69741-89104-B1×2iLN5#,6#,RN58,67,YN5#199408-199807

GRAY,GRAY,TRIM1#

main69741-89104-E4×2iLN5#,6#,RN58,67,YN5#199408-199807

BEIGE,BEIGE,TRIM4#

main69741-89104-J1×2iLN5#,6#,RN58,67,YN5#199408-199807

BLUE,BLUE,TRIM8#

main69741-90K00-04×2iLN5#,6#,YN5#,6#198411-198508

BLUE,BLUE,TRIM8#

main69741-90K00-13×2iLN5#,6#,YN5#,6#198411-198508

GRAY,GRAY,TRIM1#

main69741-90K00-16×2iLN5#,6#,YN5#,6#198411-198508

BROWN,BROWN,TRIM4#

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031-13×2iLN5#,6#,YN50,55,56,57,6#..STD..(ARL,EUR,GEN)198308-198311

GRAY,GRAY,TRIM1#

main69751-20031-14×2iLN6#,YN50,55,57,6#..STD..GEN198408-198508

*GIS,BLUE,BLUE,TRIM8#

main69751-20031-15×2iLN51,56,65,YN50,55,57,67..STD..GEN; LN51,56,YN51,56..(4H,5F)..STD..SA198608-199807

*GIS,BEIGE,BEIGE,TRIM4#; BEIGE,BEIGE,TRIM4#

main69751-20031-16×2iLN6#,YN50,55,57,6#..STD..GEN198408-198508

*GIS,BROWN,BROWN,TRIM4#

main69751-20031-23×2iLN51,56,65,YN50,55,57,67..STD..GEN; LN51,56,YN51,56..(4H,5F)..STD..SA198608-199807

*GIS,GRAY,GRAY,TRIM1#; GRAY,GRAY,TRIM1#

main69751-20031-24×2iLN51,56,65,YN50,55,57,67..STD..GEN; LN51,56,YN51,56..(4H,5F)..STD..SA198608-199807

*GIS,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main69751-20040×2iLN5#,60,65,YN50,55,56,57,60,62,65,67..STD; LN55,56,60,61,RN5#,YN50,52,55,57,60,63,65,67..DLX,SR5198308-198608

DLX PACKAGE

main69751-20060-10×2iLN51,56,65,YN50,51,56,57,67..(4F,4FC,4H,5F)..STD198610-199807

DLX PACKAGE,BLUE,BLUE,TRIM8#

main69751-20060-23iLN57,65,67..SA198808-199807

GRAY,MEDIUM GRAY,TRIM1#

main69751-20060-35×2iRN58..SR5199407-199807

BEIGE,BEIGE,TRIM4#

main69751-89101-03×2iYN65..TW..SA198501-198508

GRAY,GRAY,TRIM1#

main69751-89101-04×2iYN65..TW..SA198501-198508

BLUE,BLUE,TRIM8#

main69751-89101-06×2iLN5#,60,65,YN50,55,56,57,60,62,65,67..STD..(ARL,EUR,GEN)198408-198608

BROWN,BROWN,TRIM4#

main69751-89101-13×2iLN51,56,65,YN50,55,56,57,67..STD..(EUR,GEN,ME)198608-199807

GRAY,GRAY,TRIM1#

main69751-89101-15×2iRN5#,YN52,57..4F..ME198610-198708

STD PACKAGE,BEIGE,BEIGE,TRIM4#

main69751-89101-24×2iRN50,55,YN52,57..STD..ME198708-199807

BLUE,BLUE,TRIM8#

main69751-90A00-04×2iLN5#,6#,YN50,55,57,6#..STD..GEN; LN55,56,65,YN55,56,57,65..STD..(ARL,EUR)198407-198408

BLUE,BLUE,TRIM8#

main69751-90A00-13×2iLN5#,6#,YN50,55,57,6#..STD..GEN; LN55,56,65,YN55,56,57,65..STD..(ARL,EUR)198407-198408

GRAY,GRAY,TRIM1#

main69751-90A00-16×2iLN5#,6#,YN50,55,57,6#..STD..GEN; LN55,56,65,YN55,56,57,65..STD..(ARL,EUR)198407-198408

BROWN,BROWN,TRIM4#

69755SILENCER, FRONT DOOR LOCK LINK

main69759-89102×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

LH,YELLOW

main69759-20050iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

RH,BROWN

main69759-20100iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

RH,RED

main69759-20110iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

LH,BLACK

main69759-24010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

RH,NATURAL

main69759-24020iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

LH,BLUE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6929312030HANDLE, BACK DOOR

main69293-12030

6929312040HANDLE, BACK DOOR

main69293-12040

6929389101HANDLE, BACK DOOR

main69293-89101

6929389102HANDLE, BACK DOOR

main69293-89102

9015960047

main90159-60047

9015960329

main90159-60329

9015960349

main90159-60349

9015980014

main90159-80014

9018906018

main90189-06018

9161160612

main91611-60612

9165140610

main91651-40610

9352054010

main93520-54010

30 parts on this diagram · 1 diagram in section
