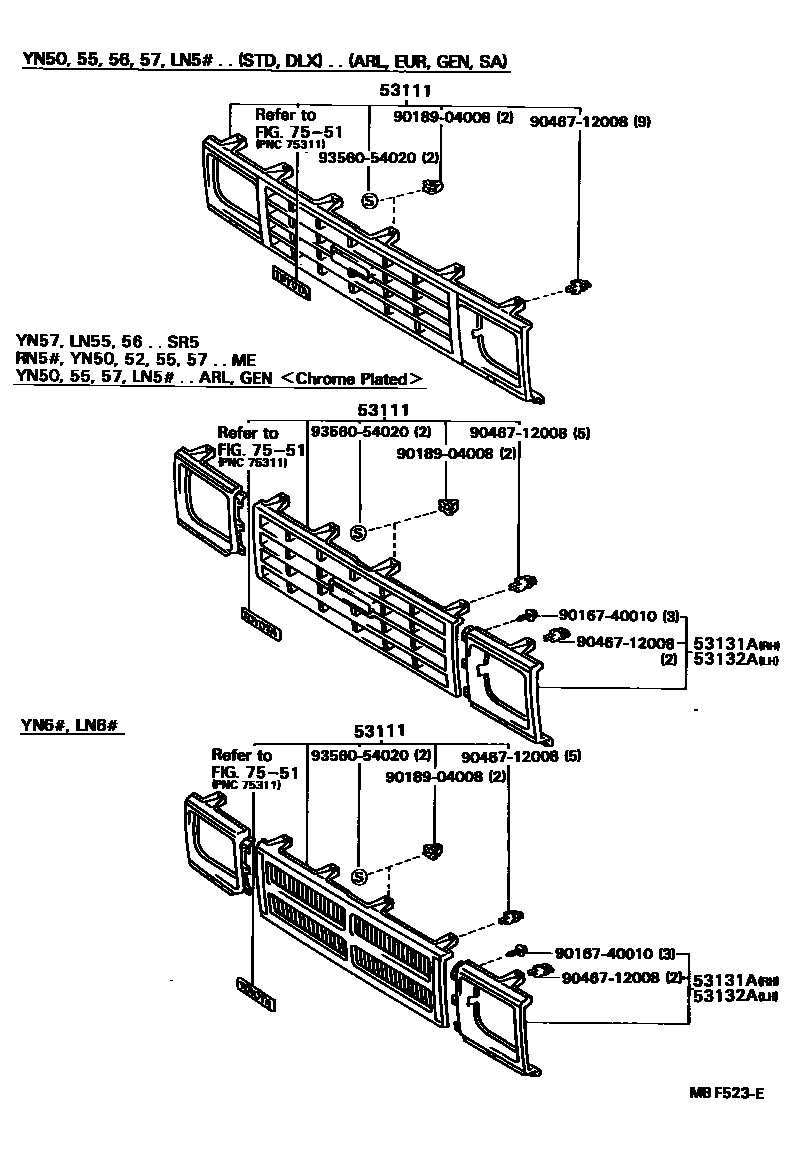

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53100-89109iLN5#,YN50,55,56,57..STD198308-198608

main53100-89110iLN55,56,YN57..DLX..GEN198308-198608

main53100-89118iLN5#,YN50,51,55,56,57,58..STD198608-199407

main53100-89119iLN56,YN51,56,57,58..DLX..(EUR,GEN,SA)198608-199407

main53100-89127iRN5#,YN52,57..STD..ME198708-199407

main53100-89127iRN5#,YN52,57..4F..ME198610-198708

STD PACKAGE

main53111-39045iLN55,56,YN57..SR5198308-198608

main53111-39055iLN55,56,YN55,57..ARL198308-198608

CHROME PLATED

main53111-39055iLN51,56..5F..STD198404-198408

THAILAND SPEC,CHROME PLATED

main53111-39055iYN50,52,55,57..ME198308-198601

main53111-39065iLN60,65,YN60,62,65,67..STD198308-198608

main53111-39075iLN6#,YN63..DLX198508-198608

main53111-39085iLN60,61,YN60,63,65,67..SR5..ARL198308-198608

main53111-39095iLN6#,YN6#..ARL,GEN198308-198608

CHROME PLATED

main53111-39095iYN60,63,65,67..ME198308-198608

main53111-89122iRN5#,YN52,57..ME198508-198608

main53111-89125iLN56,YN57,58..SR5198608-199407

main53111-89126iYN55..ARL..IV198608-199407

CHROME PLATED

main53111-89126iRN5#,YN52,57..ME198608-199407

main53111-89126iLN5#,YN57198708-198808

THAILAND SPEC,CHROME PLATED

main53111-89127iLN6#,YN6#..ARL,EUR,GEN,SA198608-199807

main53111-89128iYN6#..ME198608-199407

CHROME PLATED

main53111-89128iLN5#,6#,RN58,67198712-199807

main53111-89128iLN5#,YN57198808-199407

THAILAND SPEC,CHROME PLATED

53131ADOOR, HEADLAMP, RH

main53131-39165iLN50,55,6#,YN50,55,57,6#..GEN198308-198608

CHROME PLATED

main53131-39165iRN5#,YN50,52,55,57,60,63,65,67..ME198308-198608

main53131-39165iLN51,56..5F..STD198404-198408

THAILAND SPEC,CHROME PLATED

main53131-39175iLN60,65,YN60,62,65,67..STD198308-198608

main53131-39185iLN6#,YN63..DLX198508-198608

main53131-39195iLN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)198308-198608

main53131-89111iYN55..GEN198608-199407

CHROME PLATED

main53131-89111iRN5#,YN52,57..DLX..ME198708-198808

THAILAND SPEC,CHROME PLATED

main53131-89111iRN5#,YN52,57..ME198608-198708

main53131-89112iLN6#,YN6#..ARL,EUR,GEN,SA198608-199807

main53131-89113iLN6#,YN6#..SR5..ARL198608-198903

main53131-89114iLN5#,6#,RN58,67198712-199807

main53131-89114iYN6#..ME198608-199407

CHROME PLATED

main53131-89114iLN5#,YN57198808-199407

THAILAND SPEC,CHROME PLATED

main53131-89115iLN56,YN57,58..SR5198608-199407

53132ADOOR, HEADLAMP, LH

main53132-39165iRN5#,YN50,52,55,57,60,63,65,67..ME198308-198608

main53132-39165iLN55,56,6#,YN55,57,6#..ARL198308-198608

CHROME PLATED

main53132-39165iLN51,56..5F..STD198404-198408

THAILAND SPEC,CHROME PLATED

main53132-39175iLN60,65,YN60,62,65,67..STD198308-198608

main53132-39185iLN6#,YN63..DLX198508-198608

main53132-39195iLN55,56,60,61,YN57,60,63,65,67..SR5..(ARL,GEN)198308-198608

main53132-89110iLN5#,YN50,57..ARL,GEN198608-199407

CHROME PLATED

main53132-89110iRN5#,YN52,57..DLX..ME198608-199407

main53132-89110iLN5#,YN57198708-198808

THAILAND SPEC,CHROME PLATED

main53132-89111iYN5#198608-199807

main53132-89112iLN6#,YN6#..SR5..ARL198608-198903

main53132-89113iLN5#,YN57198808-199407

THAILAND SPEC,CHROME PLATED

main53132-89113iLN5#,6#,RN58,67198712-199807

main53132-89113iYN6#..ME198608-199407

CHROME PLATED

main53132-89114iLN56,YN57,58..SR5198608-199407

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9016740010

main90167-40010

9018904008

main90189-04008

9046712008

main90467-12008

9356054020

main93560-54020

8 parts on this diagram · 3 diagrams in section
