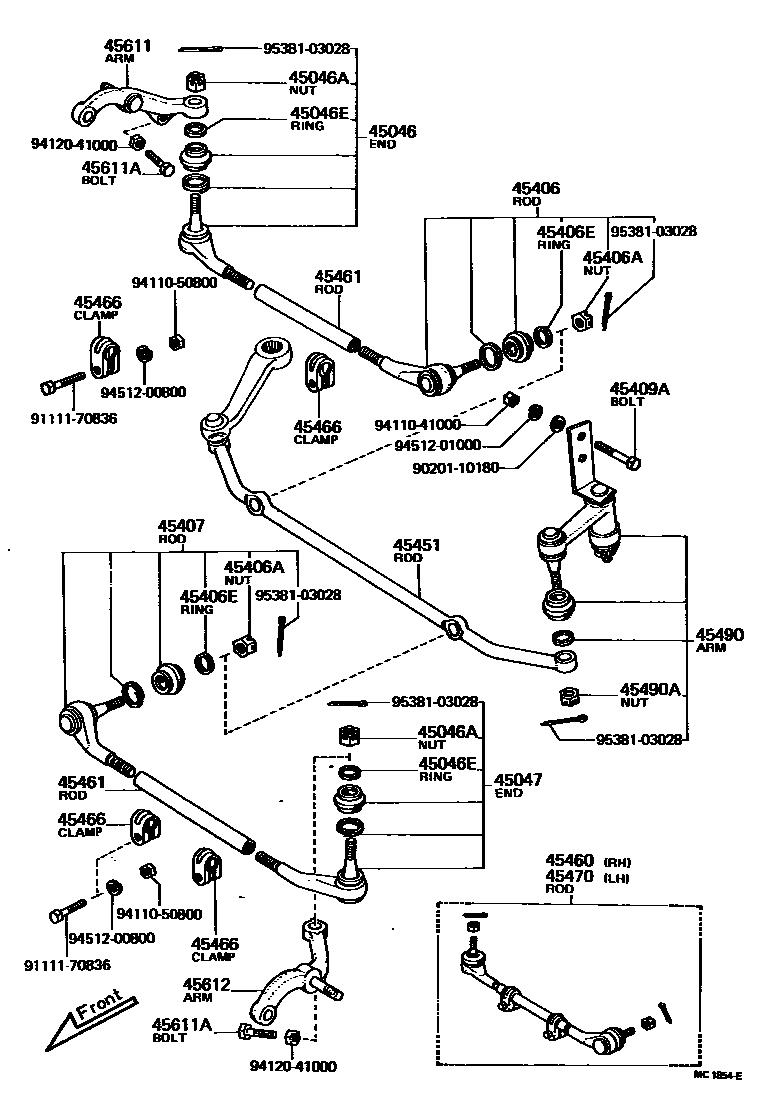

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45046ERING, O(FOR TIE ROD END DUST SEAL)
45047END SUB-ASSY, TIE ROD, LH
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45406ERING, O(FOR TIE ROD DUST SEAL)
45407ROD SUB-ASSY, TIE, LH
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
45451ROD, STEERING RELAY
OD=20
OD=22
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45490ARM ASSY, STEERING IDLER
FOR OD=20 RELAY ROD
FOR OD=22 RELAY ROD
45490ANUT, CASTLE(FOR IDLER ARM)
45611ARM, STEERING KNUCKLE, RH
45611ABOLT, KNUCKLE STOPPER
45612ARM, STEERING KNUCKLE, LH
9020110180
main90201-10180
9111170836
main91111-70836
9411041000
main94110-41000
9411050800
main94110-50800
9412041000
main94120-41000
9451200800
main94512-00800
9451201000
main94512-01000
9538103028
main95381-03028
27 parts on this diagram · 1 diagram in section
