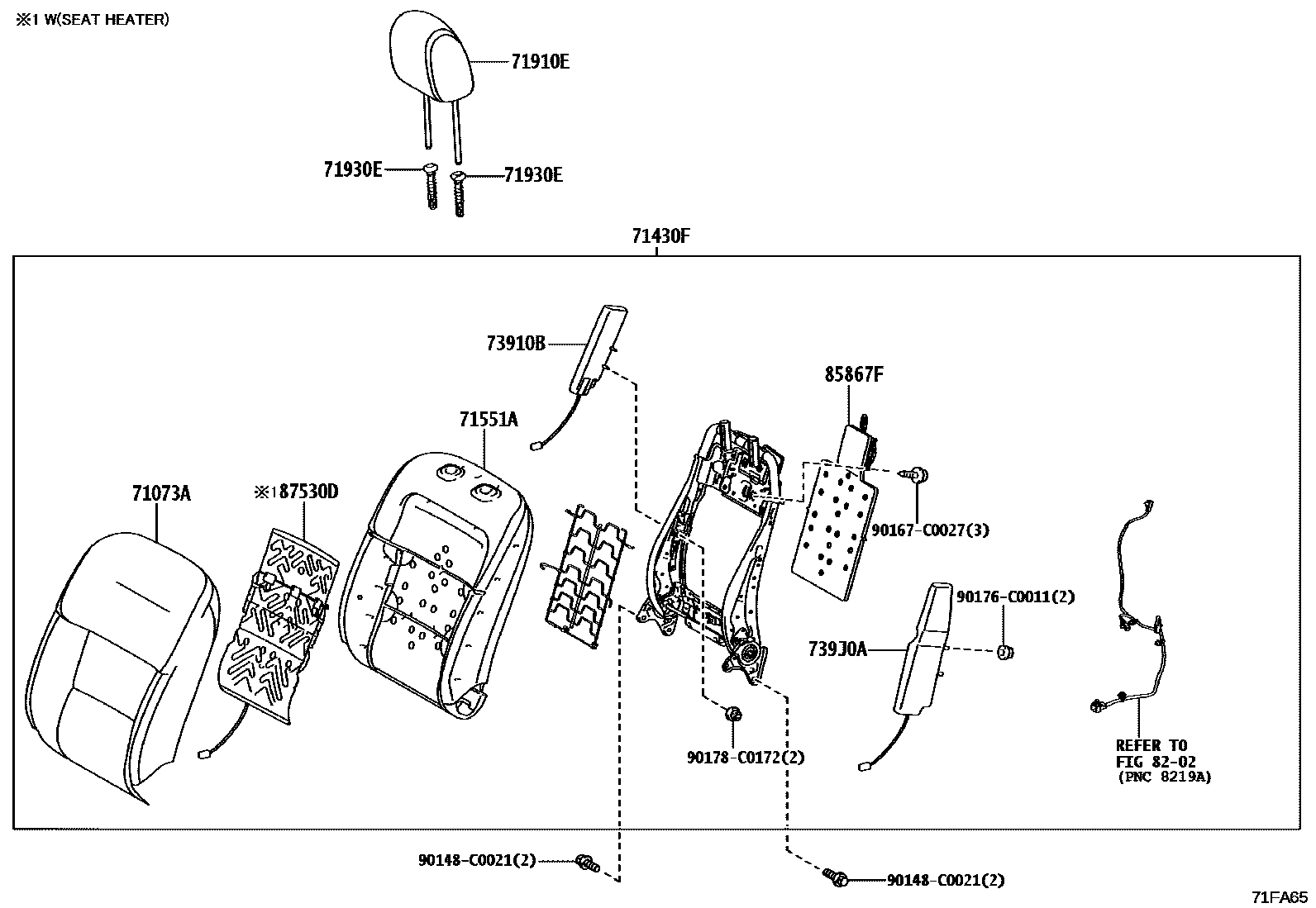

Toyota 669310 — FRONT SEAT & SEAT TRACK

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

71430FBACK ASSY, FRONT SEAT, RH

71551APAD, FRONT SEATBACK, RH

71910EHEADREST ASSY, FRONT SEAT, RH

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

73910BAIRBAG ASSY, FRONT SEAT, RH

739J0AAIRBAG ASSY, FRONT SEAT CENTER, LH

8202WIRING & CLAMP

→ Go to FIG 82-02

85867FBLOWER, SEATBACK CLIMATE CONTROL, RH

87530DHEATER ASSY, FRONT SEATBACK, RH

90148C0021

90167C0027

90176C0011

90178C0172

14 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota 669310

This section contains 60 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota 669310. Key components include: COVER SUB-ASSY, FRONT SEAT CUSHION, RH, COVER SUB-ASSY, FRONT SEAT CUSHION, LH, COVER SUB-ASSY, FRONT SEATBACK, RH, COVER SUB-ASSY, FRONT SEATBACK, LH, CUSHION ASSY, FRONT SEAT, RH.
