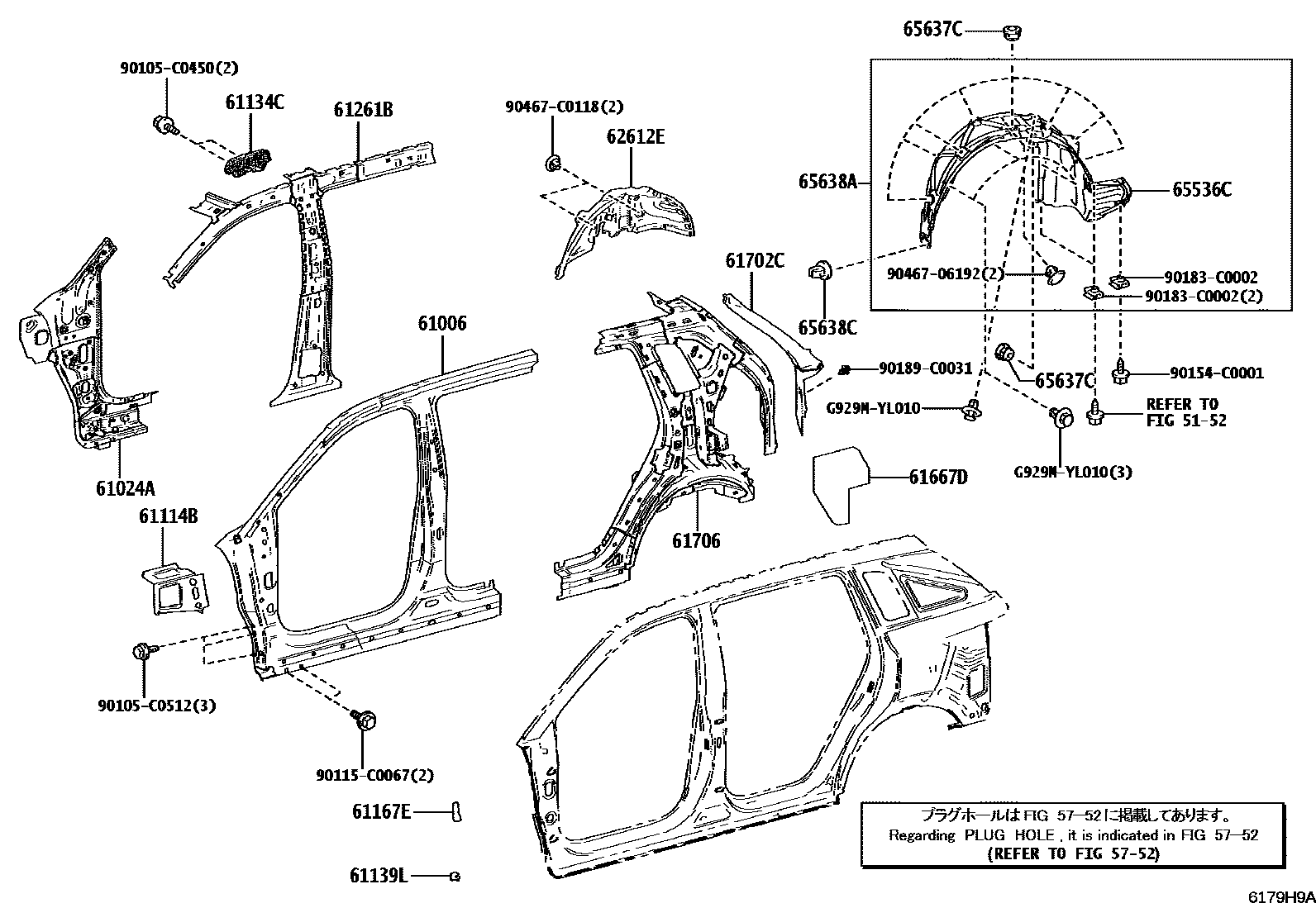

Toyota 669310 — SIDE MEMBER
5152SUSPENSION CROSSMEMBER & UNDER COVER
5752HOLE PLUG
61006PANEL SUB-ASSY, SIDE, LH
61024APILLAR SUB-ASSY, NO.4 LH
61114BPANEL, SIDE, OUTER NO.2 LH
61134CPILLAR, FRONT BODY, LOWER OUTER LH
61139LBRACKET, FRONT BODY PILLAR OUTER
61167EBRACKET, NO.6 PILLAR OUTER
61261BPILLAR, NO.1 INNER, LH
61667DSEAL, QUARTER PANEL
61702CPANEL SUB-ASSY, ROOF SIDE, OUTER LH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
62612EINSULATOR, QUARTER WHEEL HOUSE, LH
65536CPANEL, WHEEL HOUSE, REAR LH
65637CCLIP, REAR WHEEL HOUSE LINER
65638ALINER, REAR WHEEL HOUSE, LH
65638CCLIP, REAR WHEEL HOUSE LINER
90105C0450
90105C0512
90115C0067
90154C0001
90183C0002
90189C0031
9046706192
90467C0118
G929MYL010
26 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota 669310
This section contains 38 genuine Toyota parts for the SIDE MEMBER system of the Toyota 669310. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, HOLE PLUG, PANEL SUB-ASSY, SIDE, RH, PANEL SUB-ASSY, SIDE, LH, EXTENSION SUB-ASSY, ROOF SIDE, OUTER RH.
