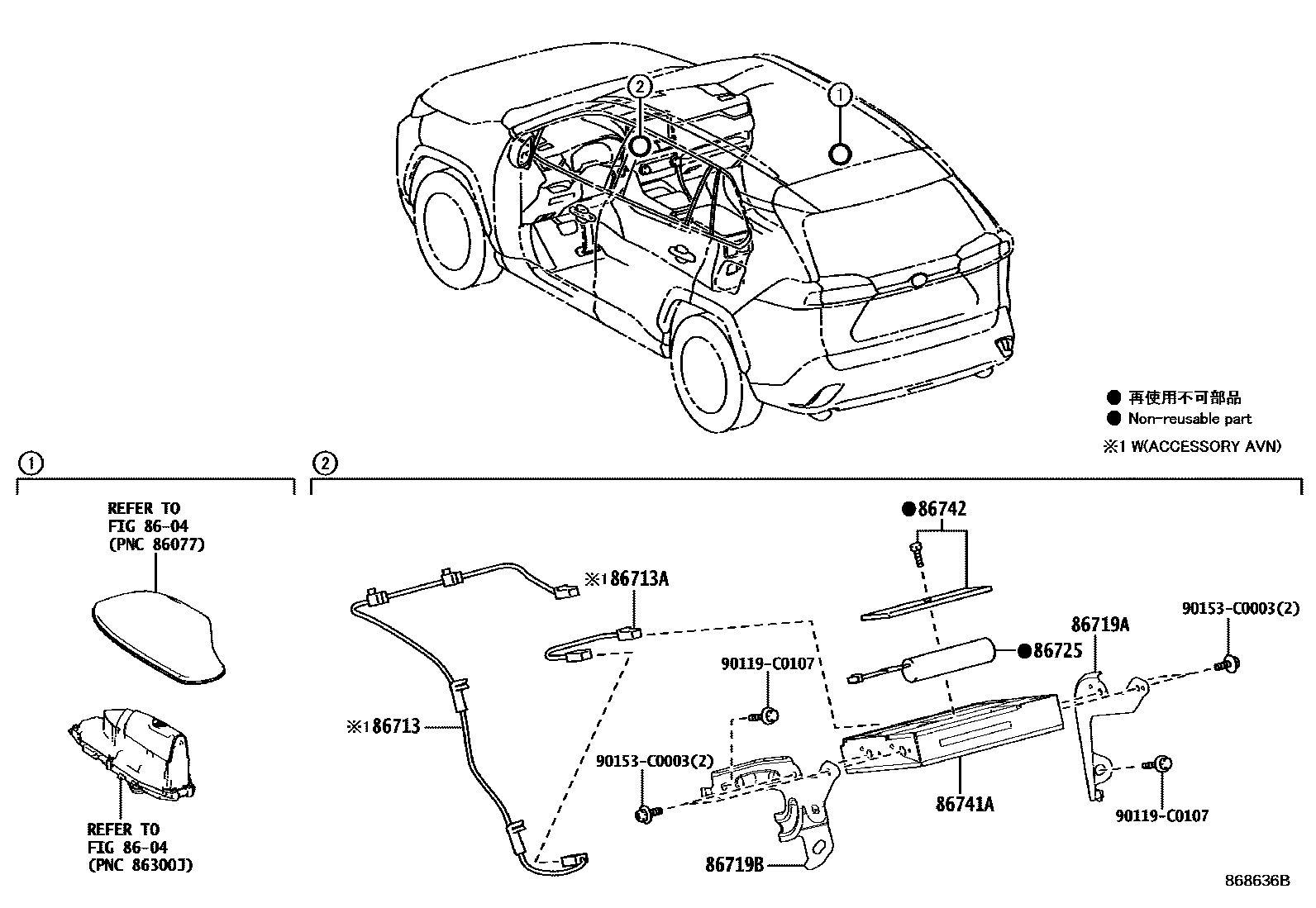

TELEPHONE & MAYDAY

0001 1 0002 1

8604ANTENNA

→ Go to FIG 86-04

86713WIRE, TELEPHONE COMPUTER

main86713-YY070iAXAP5#..M202105-202304

AUDIO-AVN(AVN GRILL COLOR:SILVER)

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-0R120iAXAP5#202304

main86713-YY080iAXAP54..A202105

AUDIO-AVN(AVN GRILL COLOR:GUN BLACK)

86719ABRACKET, TELEPHONE NO.1

main86719-0R040iAXAP5#..M202105-202304

86719BBRACKET, TELEPHONE NO.2

main86719-0R030iAXAP5#..M202105-202304

86725BATTERY, MOBILEPHONE

main86725-F4010iAXAP54..A202105

86741ATRANSCEIVER, TELEMATICS

main86741-0R070iAXAP5#202405

main86741-F4040iAXAP5#..M202105-202304

main86741-F4060iAXAP5#202304-202405

86742COVER, TRANSCEIVER

main86742-F4010iAXAP5#..M202105-202304

90119C0107

main90119-C0107

90153C0003

main90153-C0003

10 parts on this diagram · 2 diagrams in section
