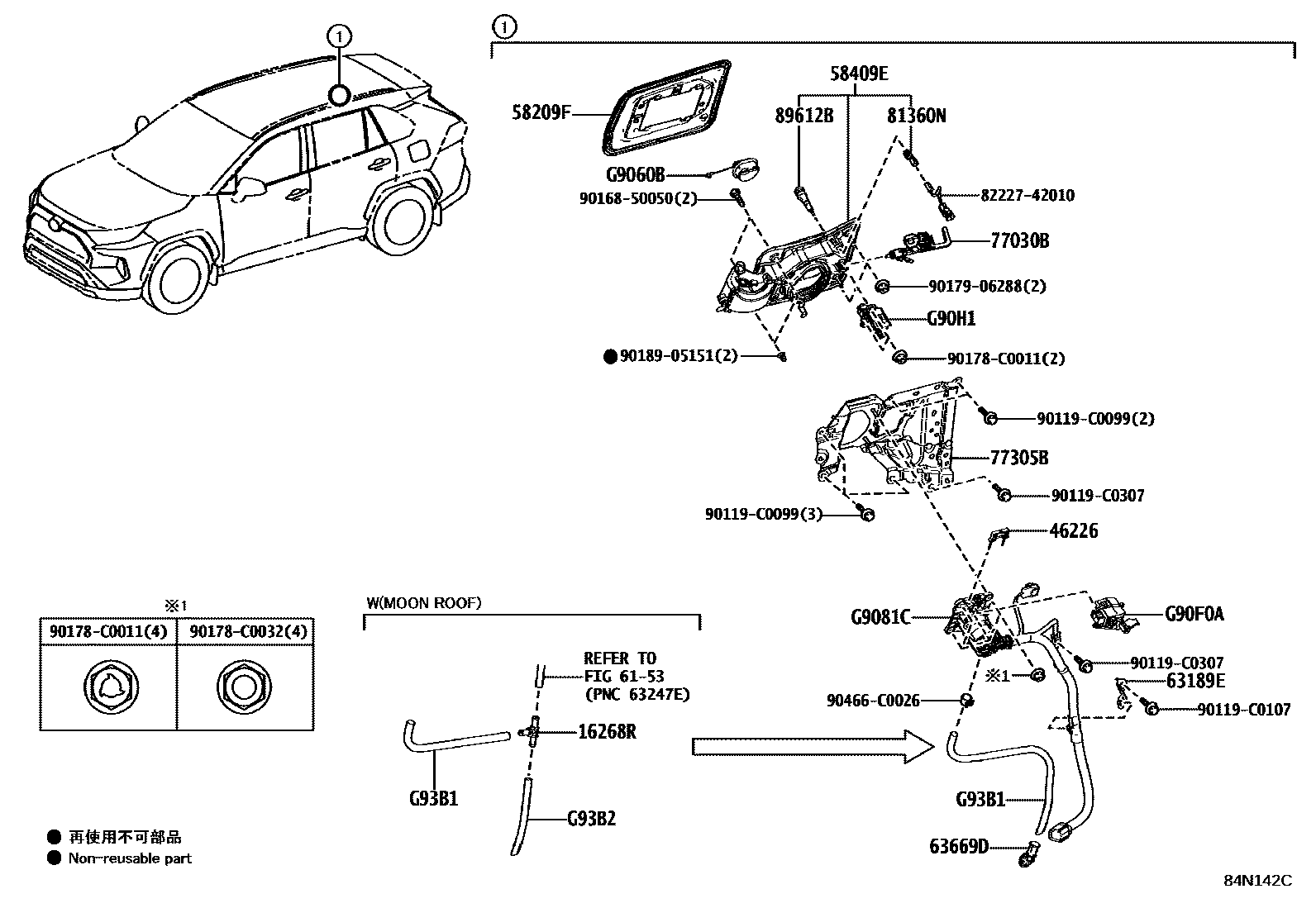

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1BATTERY CHARGER LID 0002 1EV CHARGER & EV CHARGER CABLE0003 1DC/DC CONVERTER

16268RPIPE, WATER BY-PASS

main16268-37100iA25DFXS..AXAP5#..M202105-202304

46226PIN, CONNECTOR

main46226-47010iAXAP54..A202105

58209FLID SUB-ASSY, BATTERY SERVICE OPENING

main58209-0R070iAXAP5#..M202105-202304

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-0R020iAXAP5#202304

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-0R020iAXAP5#..M202105-202304

63669DGROMMET, DRAIN HOSE

main63669-30040iAXAP5#..M202105-202304

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-0R050iAXAP5#..M202105-202304

77305BLID SUB-ASSY, EV CHARGER

main77305-0R020iAXAP5#202304

81360NLAMP ASSY, SPOT

main81360-0R020iAXAP5#..M202105-202304

89612BLIFTER, PUSH

main89612-42010iAXAP5#..M202105-202304

G9060BCOVER, CONNECTOR

main82821-F4090iAXAP5#..M202105-202304

G9081CCABLE, AC CHARGER INLET

mainG90810R030iAXAP5#..M202105-202304

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F00R020iAXAP5#..M202105-202304

G90H1INDICATOR , EV CHARGER LID

mainG90H10R020iAXAP54..A202105

G93B1HOSE, EV CHARGE CONNECTOR DRAIN, NO.1

mainG93B10R030iAXAP5#..M202105-202304

mainG93B10R040iAXAP54..A202105

G93B2HOSE, EV CHARGE CONNECTOR DRAIN, NO.2

mainG93B20R020iAXAP5#..M202105-202304

8222742010WIRE, SPOT LAMP

main82227-42010

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0307

main90119-C0307

9016850050

main90168-50050

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906288

main90179-06288

9018905151

main90189-05151

90466C0026

main90466-C0026

27 parts on this diagram · 3 diagrams in section
