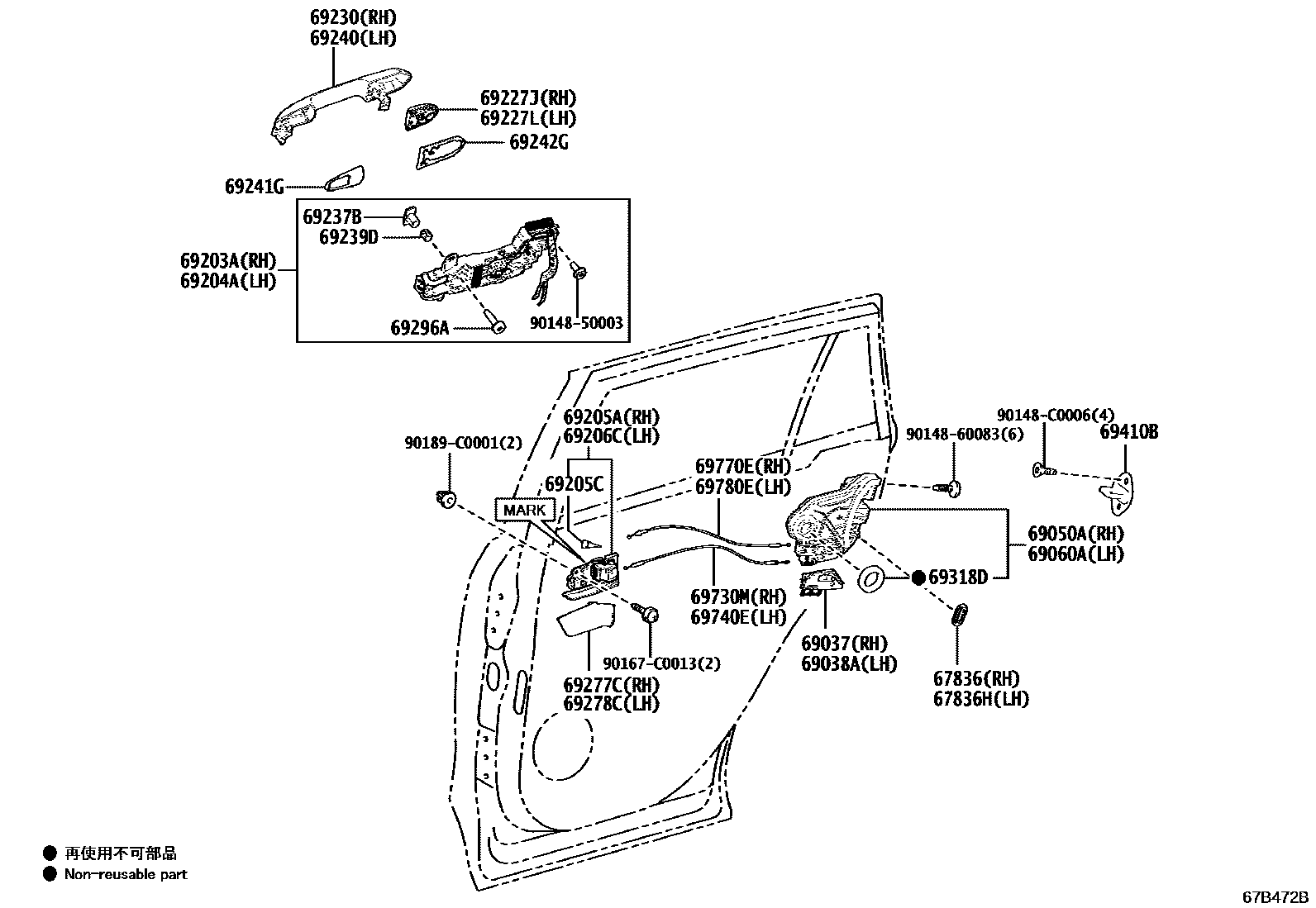

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02040iAXAP5#202304

main67836-06020iAXAP5#..M202105-202304

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02040iAXAP5#202304

main67836-06020iAXAP54..A202105

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02070iAXAP5#..M202105-202304

main69037-0R020iAXAP5#202304

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02070iAXAP54..A202105

main69038-0R020iAXAP5#202304

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02470iAXAP54..A202105

main69050-0R030iAXAP5#202304

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02470iAXAP5#..M202105-202304

main69060-0R030iAXAP5#202304

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0R090iAXAP5#202304

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0R090iAXAP54..A202105

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02470-C0iAXAP5#202304

BLACK,TRIM2#,W/O MARK

main69205-02500-C0iAXAP5#202304

BLACK,TRIM2#,MARK = WHITE

main69205-06170-C0iAXAP54..A202105

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2iAXAP5#202304

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02450-C0iAXAP5#202304

BLACK,TRIM2#,W/O MARK

main69206-02480-C0iAXAP5#202304

BLACK,TRIM2#,MARK = WHITE

main69206-06170-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0R100iAXAP5#..M202105-202304

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-0R100iAXAP5#..M202105-202304

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-0R130-A1iAXAP52; AXAP54202304

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R130-B0iAXAP52; AXAP54202304

METAL STREAM ME,1K0; METAL STREAM ME,1K0 ,2UY

main69211-0R130-C0iAXAP5#..M202105-202304

BLACK MC.,209

main69211-0R130-C1iAXAP5#202304

BLACKISH AGEHA GF.,221

main69211-0R130-D1iAXAP52; AXAP54202304

EMOTIONAL RED 2,2SZ ,3U5; EMOTIONAL RED 2,3U5

main69211-0R130-E0iAXAP52; AXAP54202304

STEEL BLONDE ME.,2TL ,4X1; STEEL BLONDE ME.,4X1

main69211-0R130-E1iAXAP5#..M202105-202304

BLACKISH BROWN MC.,4X9

main69211-0R130-J0iAXAP52; AXAP54..M202105-202304

DK.BLUE M.M.,2TT ,8W7; DK.BLUE M.M.,8W7

69237BNUT, REAR DOOR HANDLE

main69237-0R040×2iAXAP5#..M202105-202304

69239DBUSH, REAR DOOR HANDLE

main69239-0R040×2iAXAP54..A202105

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-0R130-A1iAXAP52; AXAP54..M202105-202304

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R130-B0iAXAP52; AXAP54202304

METAL STREAM ME,1K0; METAL STREAM ME,1K0 ,2UY

main69211-0R130-C0iAXAP5#..M202105-202304

BLACK MC.,209

main69211-0R130-C1iAXAP54..A202105

BLACKISH AGEHA GF.,221

main69211-0R130-D1iAXAP52; AXAP54202304

EMOTIONAL RED 2,2SZ ,3U5; EMOTIONAL RED 2,3U5

main69211-0R130-E0iAXAP52; AXAP54202304

STEEL BLONDE ME.,2TL ,4X1; STEEL BLONDE ME.,4X1

main69211-0R130-E1iAXAP54..A202105

BLACKISH BROWN MC.,4X9

main69211-0R130-J0iAXAP52; AXAP54..M202105-202304

DK.BLUE M.M.,2TT ,8W7; DK.BLUE M.M.,8W7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0R050×2iAXAP5#..M202105-202304

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0R050×2iAXAP5#..M202105-202304

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-0R040-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-0R040-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

69296ASCREW, DOOR INSIDE HANDLE

main69296-0R040×2iAXAP5#202105-202208

main90148-C0013×2iAXAP54..A202209

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-0R030iAXAP5#202304

RH

main69318-0R040iAXAP5#202304

LH

main69318-51010×2iAXAP54..A202105

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020×2iAXAP5#..M202105-202304

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-0R080iAXAP54..A202105

main69730-0R120iAXAP5#202304

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-0R080iAXAP5#..M202105-202304

main69730-0R120iAXAP5#202304

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-0R080iAXAP54..A202105

main69770-0R120iAXAP5#202304

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-0R080iAXAP54..A202105

main69770-0R120iAXAP5#202304

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0001

main90189-C0001

33 parts on this diagram · 1 diagram in section
