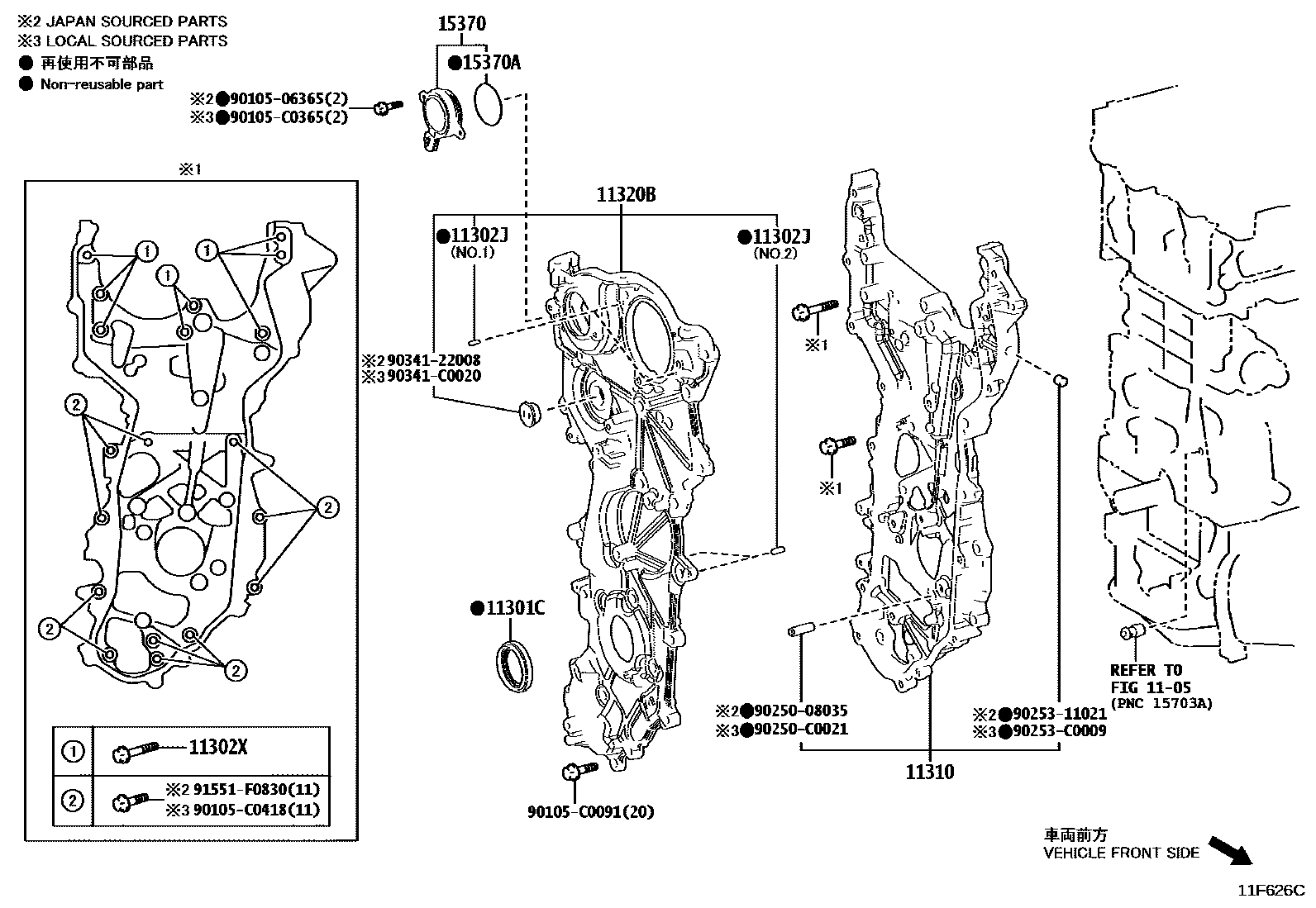

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iA25DFXS..AXAP5#202304

(J)

main90311-C0054iA25DFXS..AXAP54..A202105

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097×2iA25DFXS..AXAP5#202304

(J),NO.1:REFER ILL.

main90250-06003×2iA25DFXS..AXAP5#202304

NO.2:REFER ILLUST.

main90250-C0009×2iA25DFXS..AXAP5#202304

(L),NO.1:REFER ILL.

11302XBOLT, FLANGE

main90105-C0419×8iA25DFXS..AXAP5#202311

(L)

main91551-F0845×8iA25DFXS..AXAP5#202304-202311

11310COVER ASSY, TIMING CHAIN

main11310-F0020iA25DFXS..AXAP5#..M202105-202304

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-F0020iA25DFXS..AXAP5#202304

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iA25DFXS..AXAP5#..M202105-202304

(J)

main15370-F2020iA25DFXS..AXAP54..A202105

(L)

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iA25DFXS..AXAP5#202304

9010506365

main90105-06365

90105C0091

main90105-C0091

90105C0365

main90105-C0365

90105C0418

main90105-C0418

9025008035

main90250-08035

90250C0021

main90250-C0021

9025311021

main90253-11021

90253C0009

main90253-C0009

9034122008

main90341-22008

90341C0020

main90341-C0020

91551F0830

main91551-F0830

19 parts on this diagram · 1 diagram in section
