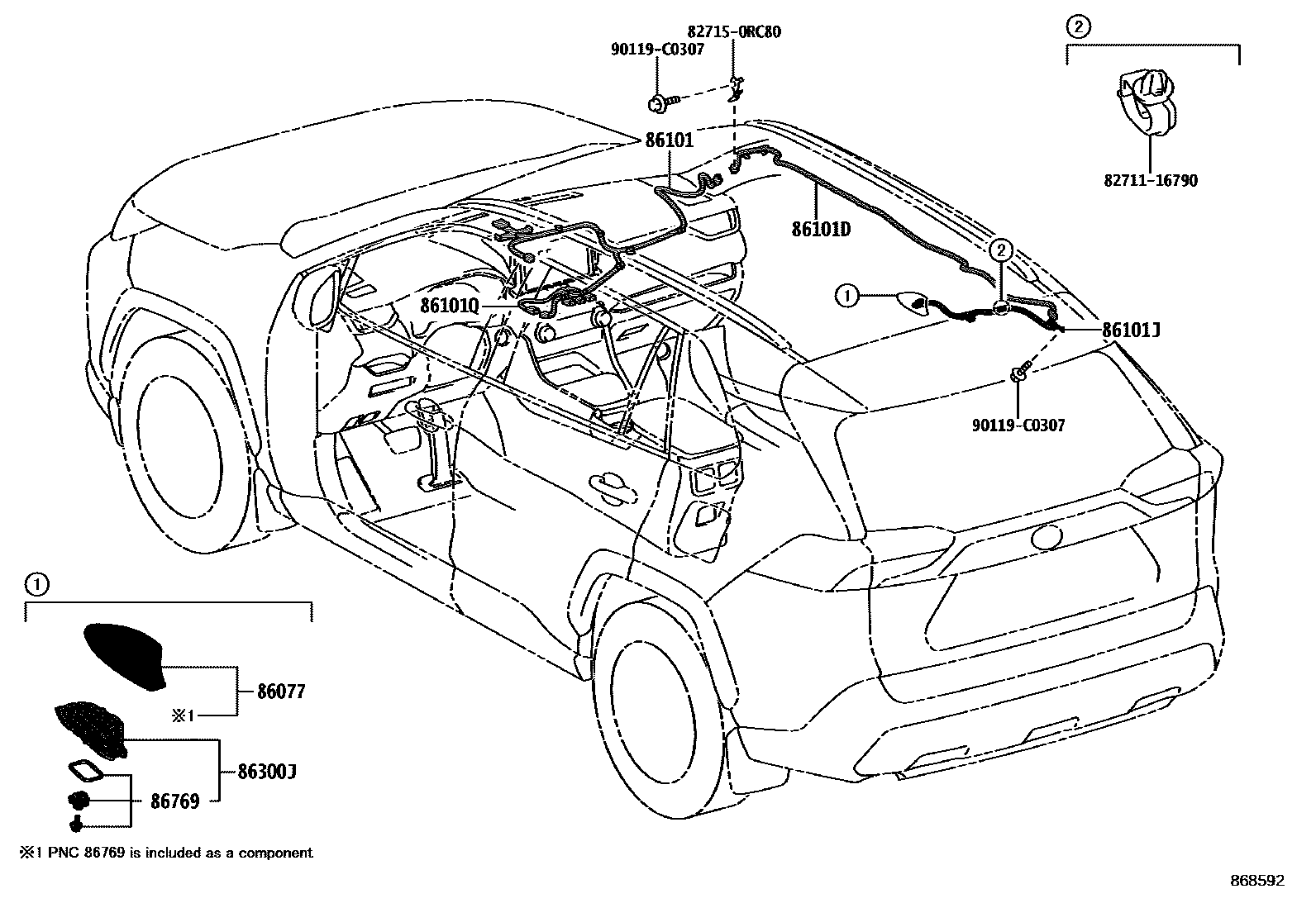

ANTENNA

86077COVER KIT, ANTENNA

main86077-12040-A1iAXAP5#202304

PLATINUM WHITE PEARL MC.,089

main86077-12040-B8iAXAP5#202304

ASH GRAY ME.,1K6

main86077-12040-C4iAXAP5#..G,M; AXAP52..X202304

BLACK MC.,209; BLACK MC.,209 ,2PU ,2RZ ,2SA ,2SZ

main86077-12040-D1iAXAP5#202304

EMOTIONAL RED 2,3U5

main86077-12040-E3iAXAP5#202304

AVANT-GARDE BRONZE ME.,4V8

main86077-12040-G0iAXAP5#202304

URBAN KHAKI,6X3

main86077-12040-J2iAXAP5#202304

DK. BLUE MC.,8X8

main86077-47010-A3iAXAP5#202104-202304

PLATINUM WHITE PEARL MC.,089

main86077-47010-B4iAXAP5#202104-202304

ASH GRAY ME.,1K6

main86077-47010-C2iAXAP5#..M,X; AXAP54..G202104-202304

BLACK MC.,209; BLACK MC.,209 ,2KR ,2PU ,2RZ ,2SA ,2SZ

main86077-47010-D6iAXAP5#202104-202304

EMOTIONAL RED 2,3U5

main86077-47010-E7iAXAP5#202104-202304

AVANT-GARDE BRONZE ME.,4V8

main86077-47010-G3iAXAP5#202104-202304

URBAN KHAKI,6X3

main86077-47010-J4iAXAP5#202104-202207

CYAN METALLIC,8W9

main86077-47010-J5iAXAP5#202207-202304

DK. BLUE MC.,8X8

86101CORD SUB-ASSY, ANTENNA

main86101-0R600iAXAP5#202104-202304

main86101-0RB00iAXAP5#202304

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0R590iAXAP5#202104-202304

main86101-0RB20iAXAP5#202304

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0R580iAXAP5#202104-202304

main86101-0RB10iAXAP5#202304

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-0R730iAXAP5#202104-202304

86300JANTENNA ASSY, ROOF

main86300-02470iAXAP5#202104-202304

main86300-0A070iAXAP5#202304

86769HOUSING, ROOF ANTENNA

main86769-0E030iAXAP5#202304

main86769-12010iAXAP5#202104-202304

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827150RC80BRACKET,WIRING HARNESS CLAMP

main82715-0RC80

90119C0307

main90119-C0307

10 parts on this diagram · 1 diagram in section
