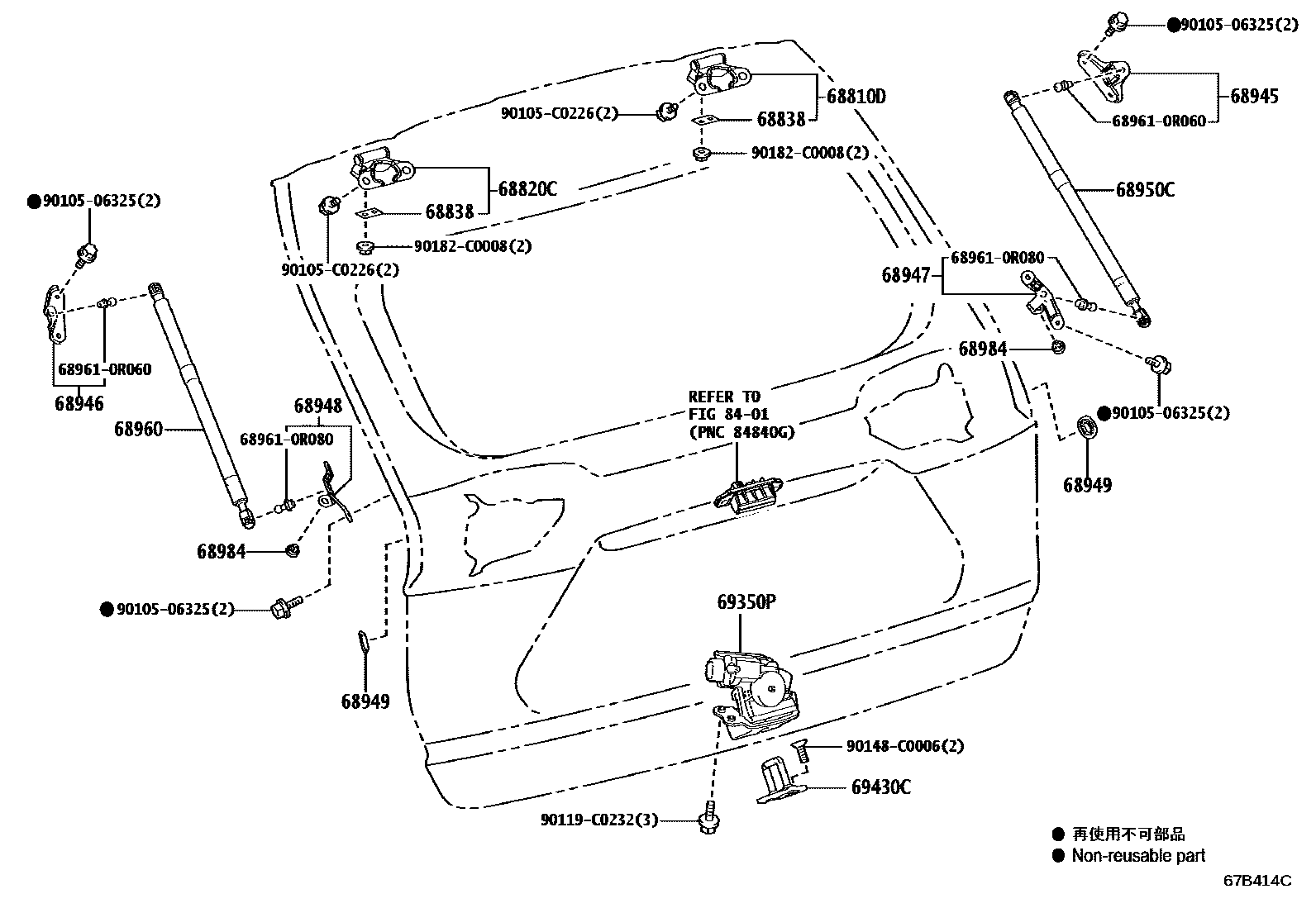

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0R100iAXAP5#202104-202108

T=1.0

main68810-0R110iAXAP5#202104-202108

T=1.5

main68810-0R120iAXAP5#202104-202108

T=2.0

main68810-0R121iAXAP5#202109-202304

T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0R100iAXAP5#202104-202108

T=1.0

main68810-0R110iAXAP5#202104-202108

T=1.5

main68810-0R120iAXAP5#202104-202108

T=2.0

main68810-0R121iAXAP5#202109-202304

T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-F4070×2iAXAP5#202104-202109

T=1.0

main68838-F4080×2iAXAP5#202104-202109

T=1.5

main68838-F4090×2iAXAP5#202104-202304

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0R070iAXAP5#..M,X202104-202304

main68945-0R080iAXAP54..G202104-202304

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0R070iAXAP5#..M,X202104-202304

main68946-0R080iAXAP54..G202304

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0R060iAXAP5#202304

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0R060iAXAP5#202104-202304

68949SEAL, BACK DOOR STAY BRACKET

main68949-0R020×2iAXAP5#..M,X202104-202304

68950CSTAY ASSY, BACK DOOR, RH

main68950-0R120iAXAP5#..M,X202104-202304

68960STAY ASSY, BACK DOOR, LH

main68960-0R120iAXAP5#..M,X202104-202304

68984STOPPER, BACK DOOR STAY

main68984-0R050×2iAXAP5#202104-202304

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0R060iAXAP54202104-202108

main69350-0R070iAXAP5#..M,X202304

main69350-0R120iAXAP54..G202109-202212

main69350-0R121iAXAP54..G202301-202304

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0R020iAXAP5#202104-202304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

689610R060BOLT, BACK DOOR STAY

main68961-0R060

689610R080BOLT, BACK DOOR STAY

main68961-0R080

9010506325

main90105-06325

90105C0226

main90105-C0226

90119C0232

main90119-C0232

90148C0006

main90148-C0006

90182C0008

main90182-C0008

21 parts on this diagram · 2 diagrams in section
