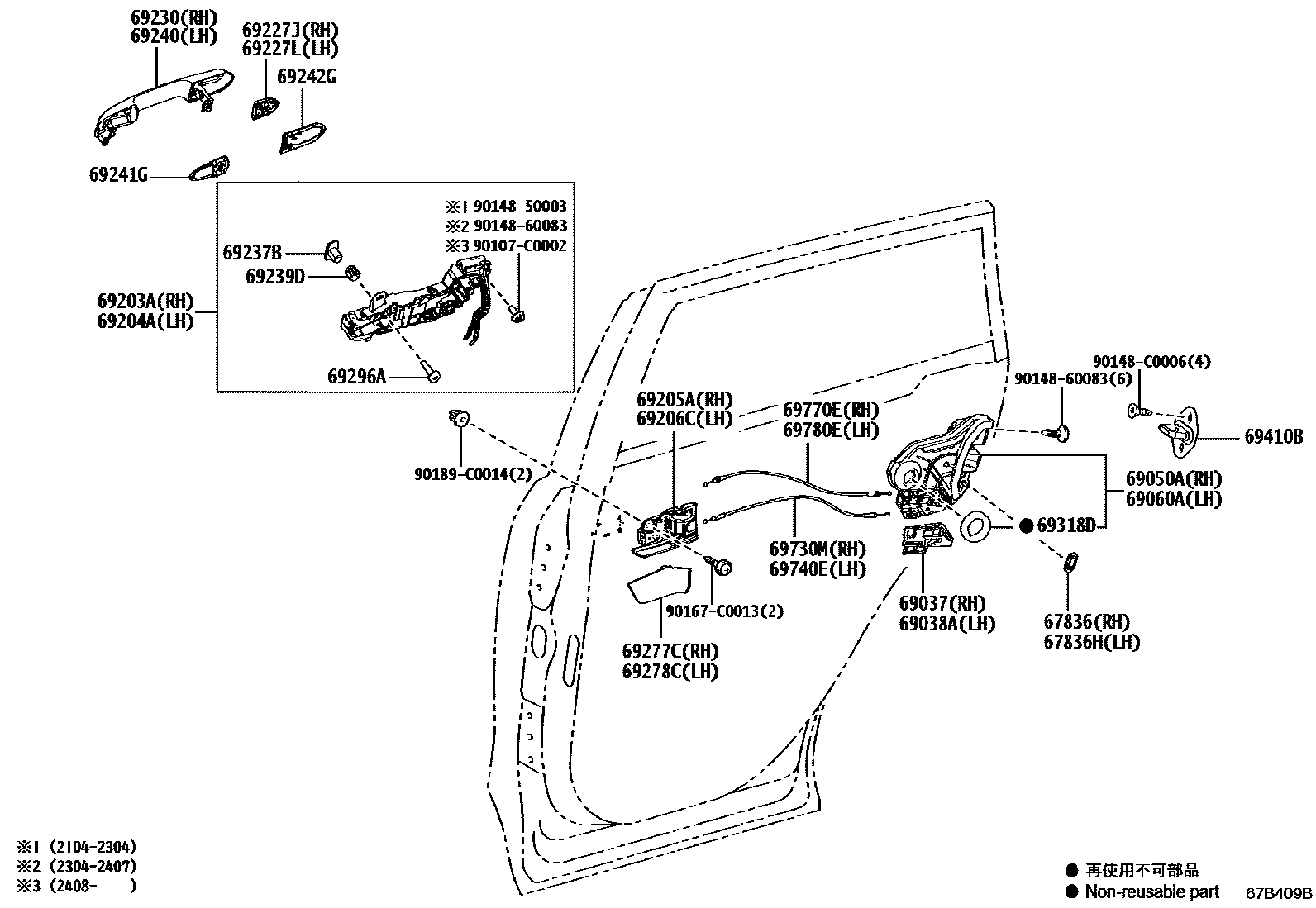

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6; ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5; EMOTIONAL RED 2,3U5
AVANT-GARDE BRONZE ME.,2SA ,4V8; AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU
ASH GRAY ME.,1K6; ASH GRAY ME.,1K6 ,2RZ
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5; EMOTIONAL RED 2,3U5
AVANT-GARDE BRONZE ME.,2SA ,4V8; AVANT-GARDE BRONZE ME.,4V8
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90107C0002
main90107-C0002
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0014
main90189-C0014
33 parts on this diagram · 1 diagram in section
