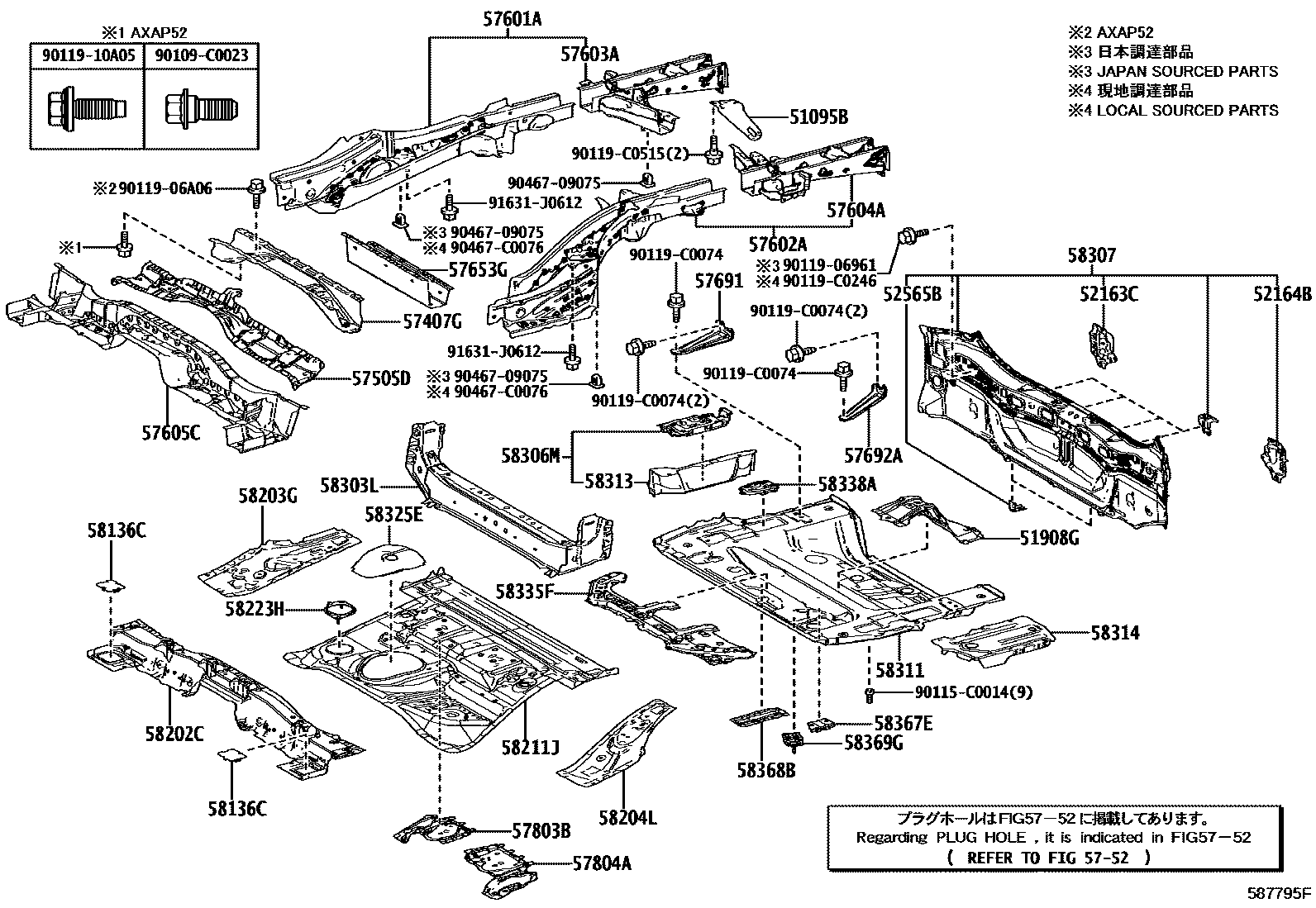

REAR FLOOR PANEL & REAR FLOOR MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0R020iAXAP5#202104-202304

51908GBRACKET SUB-ASSY, SPARE TIRE CARRIER

main51908-0R030iAXAP5#202104-202304

52163CPLATE, REAR BUMPER REINFORCEMENT, RH

main52163-0R050iAXAP5#202104-202304

52164BPLATE, REAR BUMPER REINFORCEMENT, LH

main52164-0R050iAXAP5#202104-202304

52565BRETAINER, REAR BUMPER, LOWER

main52565-0R050iAXAP5#202104-202304

57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0R021iAXAP5#202104-202304

57505DREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0R070iAXAP5#202104-202304

5752HOLE PLUG

→ Go to FIG 57-52

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0R100iAXAP5#202104-202304

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0R100iAXAP5#202104-202304

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R060iAXAP5#202104-202501

main57603-0R061iAXAP5#202501

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R060iAXAP5#202104-202501

main57604-0R061iAXAP5#202501

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R100iAXAP5#202104-202304

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-0R080iAXAP5#202104-202304

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-0R020iAXAP5#202104-202304

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-0R020iAXAP5#202104-202304

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-0R070iAXAP5#202104-202304

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-0R060iAXAP5#202104-202304

58136CCOVER, REAR FLOOR HOLE

main58136-0R030iAXAP5#202104-202304

58202CPAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-0R110iAXAP5#202104-202304

58203GREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH.

main58203-0R010iAXAP5#202104-202304

58204LREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-0R020iAXAP5#202104-202304

58211JPAN, CENTER FLOOR

main58211-0R100iAXAP5#202104-202304

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-0R040iAXAP5#202104-202304

58303LPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-0R041iAXAP5#202104-202107

main58303-0R042iAXAP5#202108-202304

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-0R020iAXAP5#202104-202304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R090iAXAP5#202104-202203

main58307-0R091iAXAP5#202204-202304

main58307-0R120iAXAP5#202304

58311PAN, REAR FLOOR

main58311-42150iAXAP5#202104-202105

main58311-78040iAXAP5#202106-202401

main58311-78060iAXAP5#202402

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R060iAXAP5#202104-202304

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R040iAXAP5#202104-202304

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0R080iAXAP5#202104-202304

58335FPLATE, FLOOR SIDE, FRONT RH

main58335-0R011iAXAP5#202104-202304

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-0R040iAXAP5#202104-202304

58367EBRACKET, FUEL TUBE, NO.1

main58367-F4020iAXAP5#202104-202304

58368BBRACKET, FUEL TUBE, NO.2

main58368-0R040iAXAP5#202104-202304

58369GBRACKET, FUEL TUBE, NO.3

main58369-07020iAXAP5#202104-202304

90109C0023

main90109-C0023

90115C0014

main90115-C0014

9011906961

main90119-06961

9011906A06

main90119-06A06

9011910A05

main90119-10A05

90119C0074

main90119-C0074

90119C0246

main90119-C0246

90119C0515

main90119-C0515

9046709075

main90467-09075

90467C0076

main90467-C0076

91631J0612

main91631-J0612

47 parts on this diagram · 1 diagram in section
