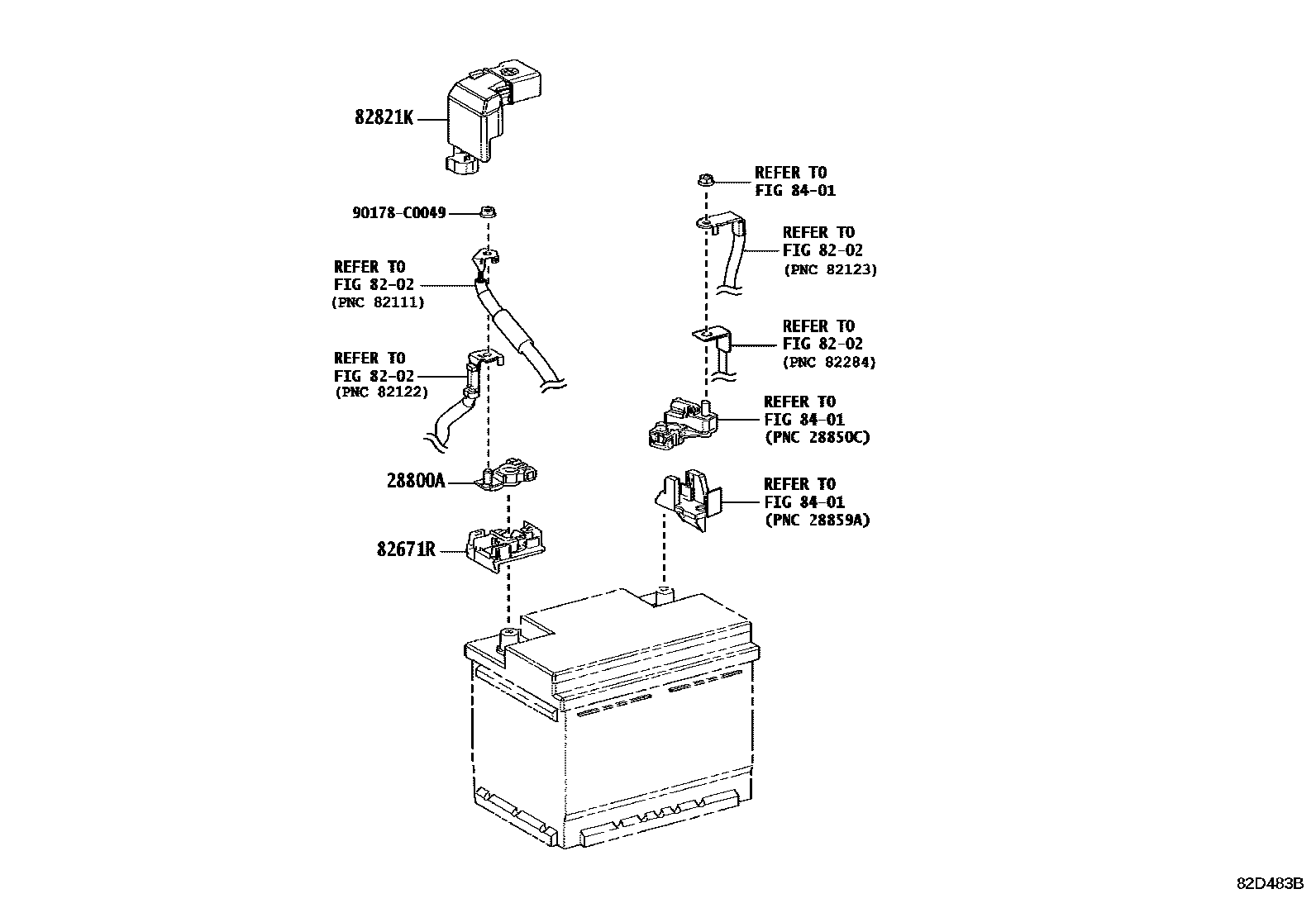

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-0T101iA25..AXAL5#..G,M202405

LN1

28800ATERMINAL, BATTERY POSITIVE

main90982-05058iA25..AXAL5#..G,M202304-202405

main90982-05072iM20CFKS..MXAA5#202405

8202WIRING & CLAMP

→ Go to FIG 82-02

82671RSTOPPER, BATTERY TERMINAL

main82670-42010iAXAL5#..G,M202405

main82671-33100iMXAA5#202405

82821KCOVER, CONNECTOR

main82821-33440iMXAA5#202405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178C0049

main90178-C0049

7 parts on this diagram · 6 diagrams in section
