BATTERY CARRIER

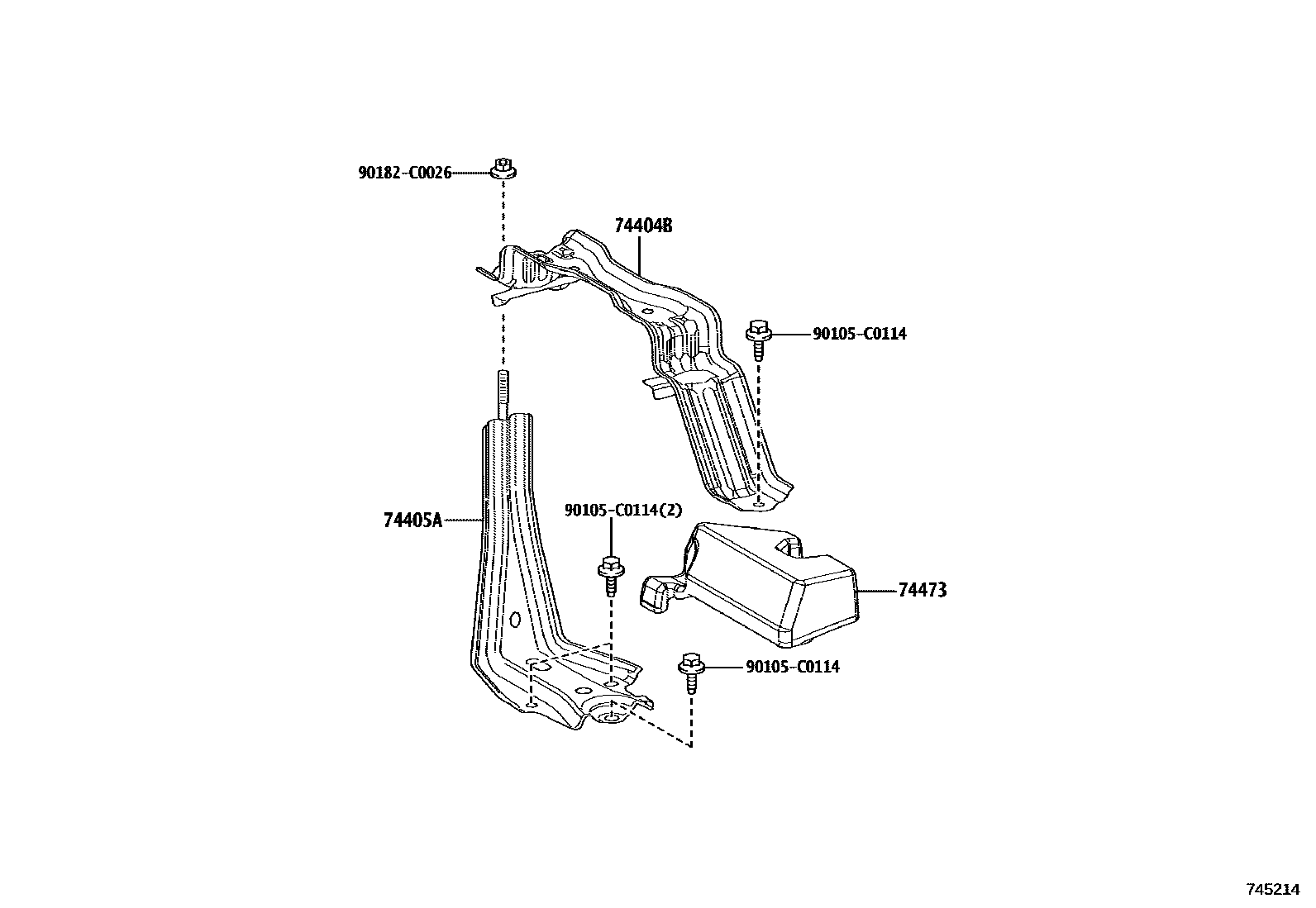

Parts diagram

74404BCLAMP SUB-ASSY, BATTERY

main74404-06210i202004-202303

main74440-0R030i202004-202303

74405ACARRIER SUB-ASSY, BATTERY, UPPER RH

main74405-0R030i202304-202405

74473SPACER, BATTERY

main74473-0R020i202304-202405

(L)

main74473-42030i202304-202405

(J)

90105C0114

main90105-C0114

90182C0026

main90182-C0026

5 parts on this diagram · 2 diagrams in section
