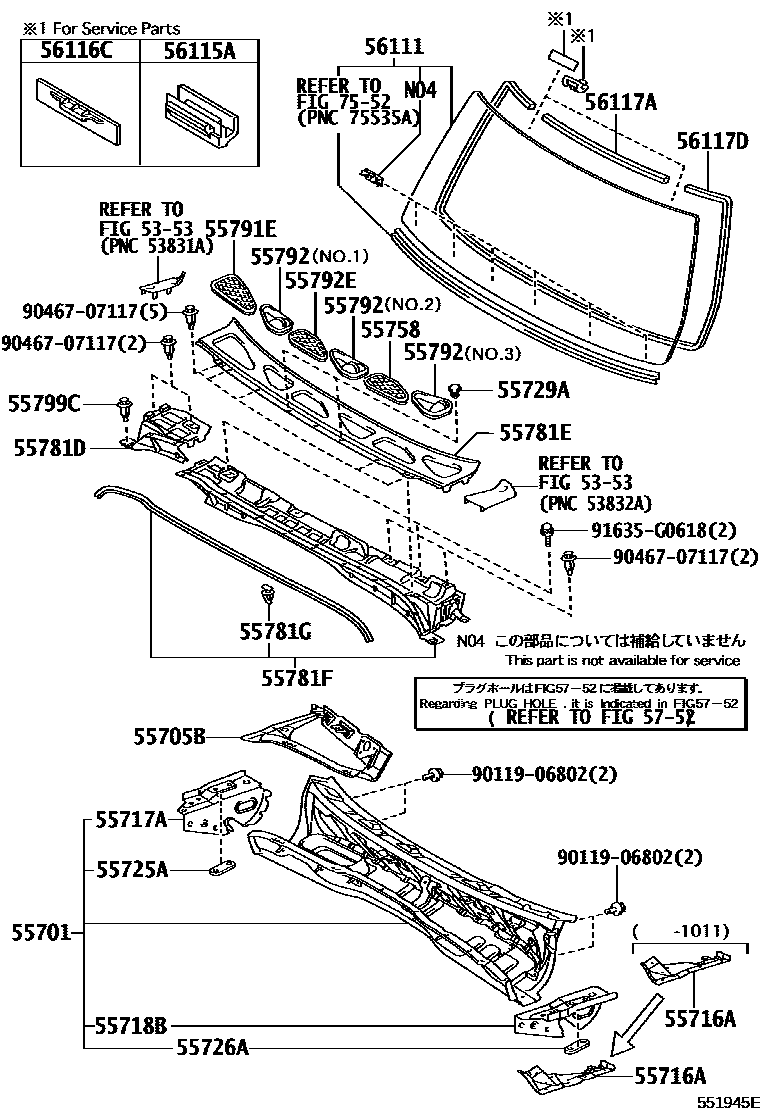

COWL PANEL & WINDSHIELD GLASS
5353HOOD & FRONT FENDER
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55716ABRACE, COWL TOP TO APRON, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH
55729ACOVER, COWL PANEL HOLE
55781DLOUVER, COWL TOP VENTILATOR, RH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781FLOUVER, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55791ECOVER, HEATER DUCT HOLE
55792COVER, WIPER MOTOR SERVICE HOLE
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
55792ECOVER, HEATER AIR DUCT HOLE, NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=705
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2910
5752HOLE PLUG
7552MOULDING
9011906802
main90119-06802
9046707117
main90467-07117
91635G0618
main91635-G0618
28 parts on this diagram · 2 diagrams in section
