WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

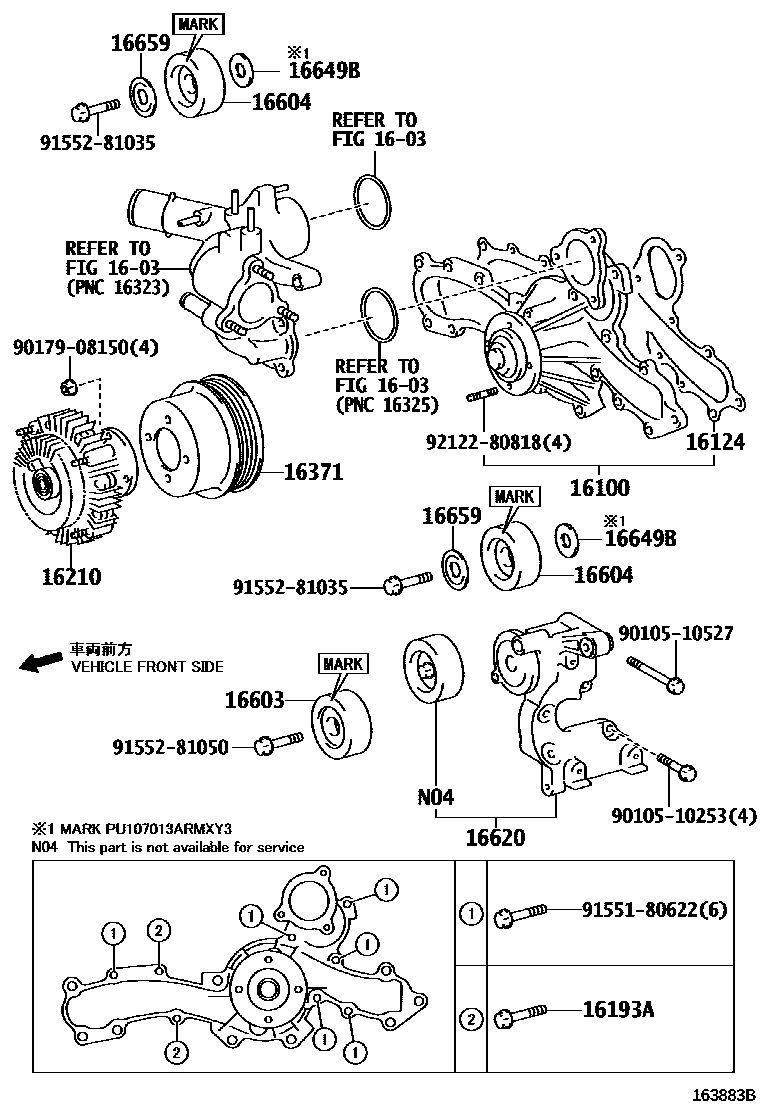

16100PUMP ASSY, ENGINE WATER

main16100-39405i1GRFE..GSJ15200707-200903

main16100-39406i1GRFE..GSJ15200903-200908

main16100-39545i1GRFE..GSJ15200908-201011

16124GASKET, WATER PUMP COVER

main16124-31070i1GRFE..GSJ15200707-200908

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i1GRFE..GSJ15200707-200908

16210COUPLING ASSY, FLUID

main16210-31020i1GRFE..GSJ15200707-200908

main16210-31030i1GRFE..GSJ15200908-201003

main16210-31040i1GRFE..GSJ15201003-201011

16371PULLEY, FAN

main16371-31040i1GRFE..GSJ15200707-201011

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GRFE..GSJ15200707-200810

main16603-31050i1GRFE..GSJ15200810-201011

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010×2i1GRFE..GSJ15200707-200711

main16604-31020×2i1GRFE..GSJ15200711-201011

MARK=PU107013ARMXY3

main16604-31030×2i1GRFE..GSJ15..ATM201105

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31012i1GRFE..GSJ15200707-200908

main16620-31050i1GRFE..GSJ15200908-201002

main16620-31051i1GRFE..GSJ15201002-201011

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i1GRFE..GSJ15200711-201011

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i1GRFE..GSJ15200707-201011

9010510253

main90105-10253

9010510527

main90105-10527

9017908150

main90179-08150

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

18 parts on this diagram · 3 diagrams in section
