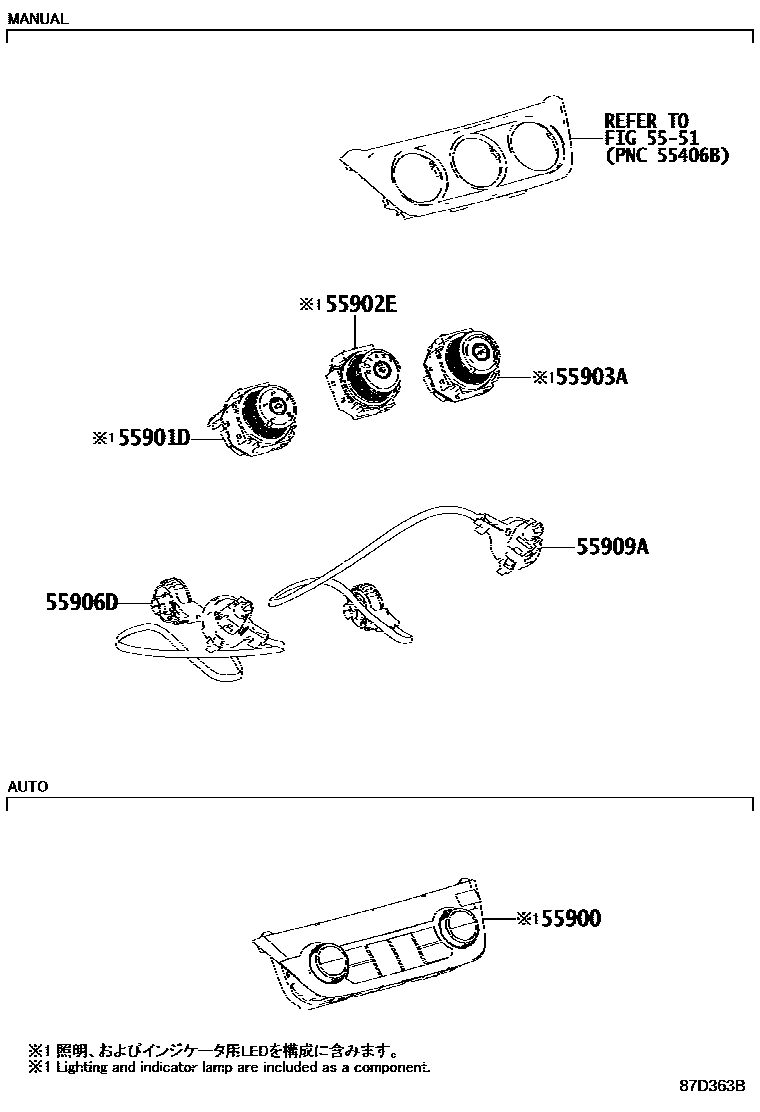

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55900CONTROL ASSY, AIR CONDITIONER

main55900-42370iASA4#,ZSA4#..LHD..G201212-201510

main55900-42390iASA44,ZSA42..G..ARL201212-201510

main55900-42420iALA49,AVA4#..(6FC,A)..(G,M)..GEN201510-201810

main55900-42430iALA49..RHD..6FC..(G,M)201510-201810

main55900-42410iASA44,ZSA4#..G..GEN; ASA44,ZSA42..G..GEN; ASA44..G..GEN; ZSA4#..6F..GEN201212-201510

*334; AIR CONDITIONER-AUTO DUAL CONTROL; RUSSIA SPEC; UKURAINE SPEC

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-12250iASA4#,ZSA4#..X201212-201510

main55901-42040iALA49,ASA4#,ZSA4#..X201510-201812

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-12190iASA4#,ZSA42..X..(ARL,GCC)201212-201311

main55902-42160iASA4#,ZSA4#..X..GEN201212-201510

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12280iASA4#,ZSA4#..X201212-201510

main55903-42090iASA4#,ZSA4#..X201510-201812

main55903-42100iALA49..X201510-201810

main55903-42110iZSA4#..X..GEN; ZSA42..X..GEN201212-201510

RUSSIA SPEC; UKURAINE SPEC

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iASA4#,ZSA4#..X; ZSA4#..6F..GEN201212-201510

AIR CONDITIONER-AUTO DUAL CONTROL

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iASA4#,ZSA4#..X; ZSA4#..6F..GEN201212-201510

AIR CONDITIONER-AUTO DUAL CONTROL

7 parts on this diagram · 5 diagrams in section
